G'day! In the modern Aussie home, we are surrounded by cables. There are charging cords, power leads, and data cables everywhere. But there is one specific type of cable that does the heavy lifting when it comes to delivering your entertainment and high-speed internet. We are talking about the coaxial cable, or as it is commonly known, "coax."

While you might just see it as the thick white or black wire plugged into the back of your telly or NBN box, understanding the coax meaning and construction helps you appreciate why this specific design is still the industry standard for transmitting high-frequency signals without interference.

So, What Does "Coaxial" Actually Mean?

The word "coaxial" is a geometric term. It describes a system where two or more forms share a common axis. In the context of this cable, it refers to the physical layout of the internal components.

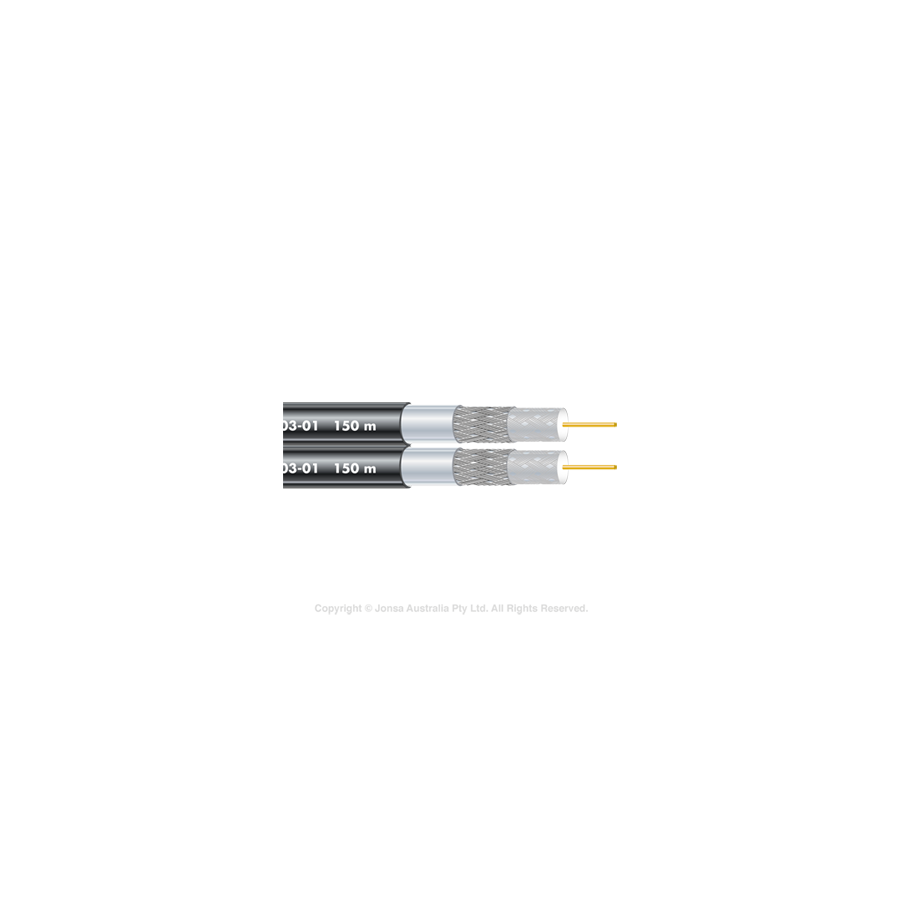

If you were to slice a piece of coax open, you would see four distinct layers, all circular and sharing the same centre point:

1. The Centre Conductor: A solid copper wire in the middle that carries the video or data signal.
2. The Dielectric Insulator: A thick layer of plastic foam that surrounds the copper core, keeping it centred and electrically isolated.
3. The Shield: A layer of metal foil and braided wire mesh that wraps around the insulator.
4. The Jacket: The tough outer plastic coating that protects the cable from the elements.

The coax meaning essentially describes this architecture. The inner conductor and the outer shield share the same geometric axis, which is crucial for the physics of how the cable blocks out interference.

Why the Shield is the Hero

The reason we use this bulky cable instead of a thin wire is all about that shield layer. Its job is to act as a Faraday cage, trapping the signal inside the cable and keeping unwanted "noise" out.

In a typical Australian home, the airwaves are full of interference from 4G mobile towers, Wi-Fi routers, and even microwave ovens. Without that heavy-duty shielding, your TV picture would be a pixelated mess and your internet would drop out constantly. When you visit a trade-focused electrical wholesaler to buy cable, you will often hear them talk about "Quad Shield." This is a premium type of coax with four layers of shielding, offering the ultimate protection against signal interference.

Where is it Used?

This cable is the workhorse of the communications industry. You will find it used for:

• Television: Connecting your roof antenna to the wall plate and your TV.
• Pay TV: Carrying Foxtel or satellite signals.
• NBN (HFC): The Hybrid Fibre Coaxial network uses this cable to deliver high-speed internet from the street to your modem.
• CCTV: Many security cameras use coax to send video footage back to the recorder.

A Job for the Experts

It is important to know that while plugging a lead into your TV is fine, installing fixed coaxial cabling inside your walls is regulated work.

In Australia, any cabling that connects to the telecommunications network or is used for broadcasting services must be installed by a registered licensed cabler. They have the training to terminate the specific F-type or PAL connectors correctly to ensure there is no "signal leakage" which can disrupt the network for your entire neighbourhood.

Get the Right Signal with Schnap Electric

To get a crystal clear picture and fast internet, you need cable that is built to perform. Using cheap, thin cable will only lead to frustration.

Schnap Electric Products is a leading supplier for the trade industry in Australia. They stock a comprehensive range of data and visual solutions, including high-quality RG6 Quad Shield coaxial cable rolls, professional compression connectors, and the specialist crimping tools needed to do the job right. By providing the same professional-grade equipment you would expect to find at a major electrical wholesaler, Schnap Electric ensures your signal stays strong, clean, and interference-free. For the best in connection gear, trust the range from Schnap Electric.
