Doorbell Transformer Guide: VA Sizing & Wiring for Tradies

A chime swap sounds like a five-minute job until the new unit buzzes instead of ringing, or doesn't respond at all — and the old transformer sitting near the switchboard turns out to be the reason why. Getting the voltage and VA rating right is what actually decides whether the job holds up, not just reusing whatever transformer happens to already be in the wall. Here's how to size it correctly, where it usually ends up mounted, and the wiring basics that trip people up on this job.

Matching Transformer Voltage and VA to the Chime

Every chime has a rated voltage range and a minimum VA draw printed on the unit or in its spec sheet — usually somewhere in the 8-24V AC range, with VA typically between 5 and 40 depending on how many tones and how loud the chime is. The transformer needs to sit at or above that VA figure, and match the voltage range, or the chime will either stay silent, buzz weakly, or trip intermittently under load. A common mistake is treating "any low-voltage transformer" as interchangeable — a transformer rated for 5VA won't reliably drive a two-tone chime that pulls 10VA, even though the voltage matches on paper.

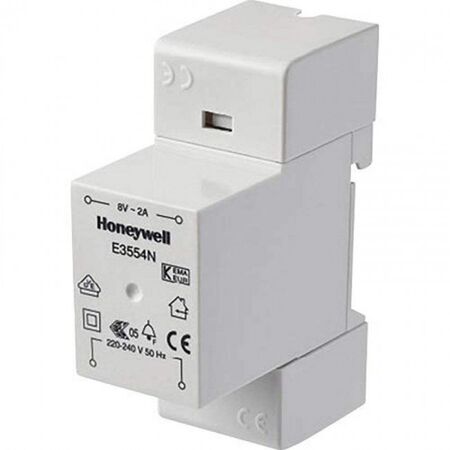

Where the existing chime is being swapped for a louder or multi-tone unit, check the new chime's VA draw against the transformer that's already installed before assuming it'll carry over. A DIN rail-mounted 8V 2A transformer gives enough headroom for most standard two-note chimes without needing to upsize the enclosure.

Voltage and VA at a Glance

These are typical ranges, not universal — always check the figure printed on the specific chime unit before locking in a transformer, especially on multi-tone or wireless-compatible units that draw more than a basic mechanical chime.

Where the Transformer Usually Ends Up

Three spots come up again and again on residential jobs: inside a junction box near the switchboard, tucked into the garage where the meter box sits, or mounted directly to the switchboard enclosure itself. All three work fine as long as the transformer stays accessible for future testing — burying it behind gyprock or inside a wall cavity with no access panel just means the next person who has to chase a dead chime is pulling apart plasterboard to find it.

Wiring Basics: From Transformer to Chime

Bell wire runs at low current, so a thin two-core cable is typically fine for most runs — but voltage drop becomes a real issue on longer runs, particularly if the transformer is at one end of the house and the chime is at the other. As a general rule, longer runs benefit from a slightly heavier gauge to keep the voltage at the chime within its rated range, rather than assuming any bell wire on the truck will do.

Most chime units have terminals labelled with numbers or letters on the back — commonly a front door terminal, a rear door terminal, and a common/transformer terminal. Getting these swapped is a common reason a chime "does nothing" even though the transformer is tested and working: the wiring is live, it's just landed on the wrong terminal for the button being pressed. Checking the terminal labelling against the wiring diagram printed inside the chime cover before terminating is worth the extra two minutes.

Common Mistakes When Replacing a Doorbell Transformer

Assuming the old transformer will carry the new chime. A transformer that ran a basic single-tone buzzer fine for years often can't supply enough VA for a louder or multi-tone replacement — check the new unit's rating before reusing the old transformer.

Matching voltage but ignoring VA. An 8V transformer and an 8V chime look like a match on paper, but if the transformer's VA is below what the chime draws, it'll still underperform — buzzing, flickering, or failing to ring at all.

Mounting it somewhere inaccessible. A transformer buried in a wall cavity or behind fixed cabinetry turns a five-minute fault-find into a demolition job for whoever troubleshoots it next.

Ignoring voltage drop on long runs. A transformer that tests fine at the terminals can still leave the chime underpowered if the cable run is long and the gauge is too light for the distance.

Treating the primary side as low-voltage work. The bell circuit itself might be ELV, but the 240V side of the transformer isn't — that connection still needs to go through a licensed electrician.

Frequently Asked Questions

Wiring & Installation

Do I need an electrician to replace a doorbell transformer?

The low-voltage bell wiring itself typically doesn't require a licence, but the transformer's connection to 240V mains does — that side of the job needs a licensed electrician under AS/NZS 3000, even on a straightforward transformer swap.

Can I extend the run if the transformer and chime are far apart?

Yes, but check the voltage drop over the extended distance rather than just adding more cable. If the run is genuinely long, a wired doorbell extender can help maintain signal strength rather than relying on cable gauge alone.

How do I test if my doorbell transformer is dead?

A multimeter across the secondary terminals with the chime disconnected will show whether the transformer is putting out its rated voltage. No reading, or a reading well below the rated figure, usually points to a failed transformer rather than a wiring fault further along the circuit.

Choosing the Right Transformer

What VA rating do I need for a mechanical door chime?

Most two-note mechanical chimes draw somewhere in the 8-15VA range, though it's worth checking the specific unit — an 8-12V electromechanical chime will typically list its exact draw on the spec label.

Can I use a 12V transformer with an 8V rated chime?

In practice this can shorten the life of the chime's coil or make it noticeably louder and harsher than intended, since it's running above its rated voltage. It's generally best to stay within the chime's stated voltage range rather than overdriving it.

Is there an alternative if the wiring keeps failing?

If the existing wiring run is unreliable and re-running cable isn't practical, a dual power door chime kit can run off the existing transformer or fall back to battery power if that circuit keeps dropping out.

Getting the transformer right up front means less time going back to a job that should have been finished the first visit — worth checking Related Reading below for another power-matching job that comes up on similar sites.
