Switchboard Labels: Get Your Circuit ID Right First Time

A switchboard upgrade isn't signed off until the directory is labelled -- and on a 12-circuit board with a mix of new RCBOs and old fuse-based circuits, guessing which breaker feeds which room isn't good enough for an inspector. Getting switchboard labels right the first time saves a return trip, and it's one of the easiest parts of the job to get wrong if you're relying on a permanent marker and a steady hand. Once the board itself is sorted, the individual cables running into it need their own electrical cable tags too.

What Inspectors Actually Check on a Directory

A switchboard directory isn't just a courtesy for whoever opens the board next -- it's part of what gets signed off. AS/NZS 3000 requires switchboards to be clearly and durably marked so each circuit can be identified without guesswork, and in practice that means every breaker or RCBO needs a description an inspector (or the next tradesperson) can read at a glance. "Circuit 1", "Circuit 2" written in biro doesn't cut it once there's more than a handful of circuits on the board.

On a typical residential upgrade -- old fuse box out, new RCBO board in -- you're often relabelling everything from scratch, because the old fuse carrier labels don't map cleanly onto the new circuit breakdown. That's the point where it's worth deciding on a labelling system before you start writing anything, rather than filling in the directory card as you go and running out of room or consistency halfway through.

Picking the Right Label Format

There isn't one correct way to label a switchboard -- it depends on the board type, how much room the directory card gives you, and whether you're labelling once or expect to update it later. A die-cut label kit gives you pre-cut, consistent labels that slot straight onto a standard directory card, which is the fastest option when you're labelling a full board of new circuits in one sitting. Adhesive labelling strips work well when the board doesn't have a standard directory card at all, or when you're labelling the enclosure itself rather than a card insert. Cable ID tape is the more flexible option -- useful when you need to label something that isn't a standard rectangular slot, like a sub-board isolator or a spare way.

Writing Descriptions an Inspector Won't Query

The label itself is only half the job -- what's written on it matters just as much. "Power" or "Lights" as a description on a 12-circuit board tells nobody anything once there's more than one circuit doing each job. A description that names the area and the load is worth the extra few seconds: "Kitchen GPO", "Ensuite Lights", "Hot Water RCBO" reads clearly to an inspector and to whoever's back on that board in five years for a fault.

RCD and RCBO circuits are worth flagging separately on the directory rather than folding them into a generic area description, since it's common for a homeowner (or the next electrician) to need to know at a glance which circuits have RCD protection and which don't.

Common Mistakes

Writing generic descriptions to save time. "Circuit 1" through "Circuit 12" might feel faster on the day, but it means the directory is effectively useless to anyone who wasn't on the job -- including the electrician doing the fault call two years later.

Using a marker straight onto the enclosure. Handwritten labels in permanent marker fade and smudge faster than most people expect, especially on boards mounted somewhere that gets any sun or temperature swing. It reads as unprofessional on a job that's otherwise been done properly.

Not updating the directory after changes. Adding a circuit or moving a load without updating the label for it is one of the most common things picked up on a re-inspection -- the board no longer matches what's actually installed.

Buying a label size that doesn't fit the directory card. Directory card slot sizes vary between board brands and models -- a label kit sized for one board can leave text cramped or overhanging on another. Check the card size before ordering, not after the kit arrives.

Leaving spare ways unlabelled. An unlabelled spare way looks like an oversight to an inspector, even if it's genuinely just spare capacity. A quick "Spare" label closes that off as a question.

Frequently Asked Questions

Choosing the Right Labels

Can I write my own circuit descriptions or do I need pre-printed labels?

Handwritten is acceptable as long as it's legible and durable -- pre-printed or die-cut labels just make it faster and more consistent, especially on a board with a lot of circuits.

What size labels fit a standard switchboard directory card?

Directory card sizes vary by board brand, so it's worth checking the card dimensions before ordering. A circuit identification die-cut label kit is sized for standard directory card slots on most residential boards.

Compliance and Inspection

Do switchboard labels need to meet a specific standard?

As a general rule, AS/NZS 3000 requires switchboards to be clearly and durably marked so each circuit can be identified -- it's not usually about a specific label product, but about the description being legible, durable, and specific enough to isolate the right circuit without guesswork.

Will an inspector fail a job just for missing circuit labels?

It's a common reason for a re-inspection request, particularly on a full board upgrade. If you're short on time before an inspection, cable ID tape is a fast way to get every circuit labelled without waiting on a die-cut kit.

Shop Switchboard Labels at Schnap

Trade pricing on the full range below, dispatched same day from Kingsgrove NSW.

• Circuit ID Label Kits

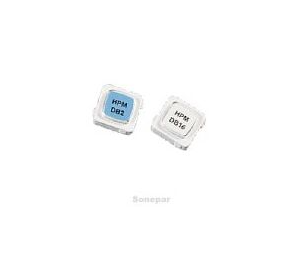

• HPM Identification Die-Cut Label -- full circuit ID kit for standard directory cards
