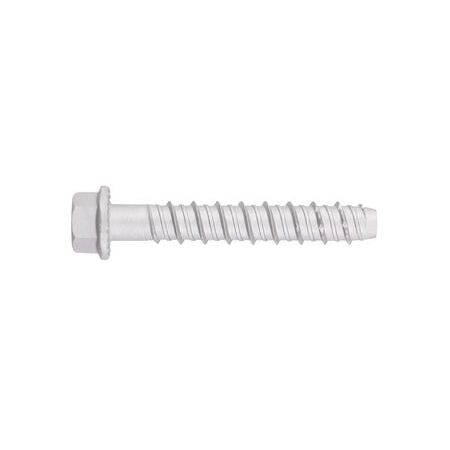

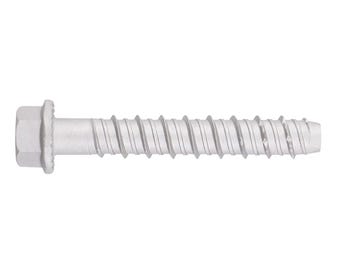

Seismic Rated Concrete Screw Anchor 40mm | C1 Rated | Fire Resistant & Removable Design by Cabac

BRAND: CABAC
SKU: BSZSU06040ZL
$1.60 List price: $1.90
+
The Cabac C1 Seismic Rated Concrete Screw Anchor 40mm is designed for secure fixture and cable management in seismic zones, suitable for cracked and non-cracked concrete with fire resistance and removable features.

Product Name/Title: C1 Seismic Rated Concrete Screw Anchor 40mm

Brand: Cabac

SKU: BSZSU06040ZL

Alternatively Known As: Seismic Concrete Screw Anchor, C1 Rated Concrete Anchor, Seismic Fixing Screw, Concrete Cable Anchor

Technical Specifications
  • Material: Steel
  • Finish: Atlantis
  • Embed depth: 35mm
  • Masonry drill size: 6mm
  • Load rating non-cracked concrete: 193 kg
  • Load rating cracked concrete: 177 kg
  • Fire resistance class: R30-R120
  • Seismic design category: C1
  • Dimensions (H x L x W): n/a mm x 40mm x n/a mm
  • Weight: 0.05 kg
Key Features
  • Seismic rated for category C1
  • Fire resistance class R30-R120 for anchorage design under fire exposure
  • ETA assessed for anchoring in cracked and non-cracked concrete
  • Removable anchor ideal for temporary fixings
Professional Installation Requirements
  • Installation requires drilling a 6mm hole with a masonry bit and driving the screw in; professional installation recommended for seismic compliance.
Applications
  • Securing fixtures and cable management in concrete with seismic rating requirements
  • Use in concrete to secure cable systems with seismic rating
  • Temporary fixings where removable anchors are needed
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable steel construction reduces need for frequent replacements
  • Removable design supports reuse and reduces waste
Warranty Information

Standard manufacturer warranty applies. Please refer to Cabac warranty policy for details.

Available Now

The Cabac C1 Seismic Rated Concrete Screw Anchor 40mm is available now for immediate purchase. Ideal for seismic-rated concrete fixing applications.
