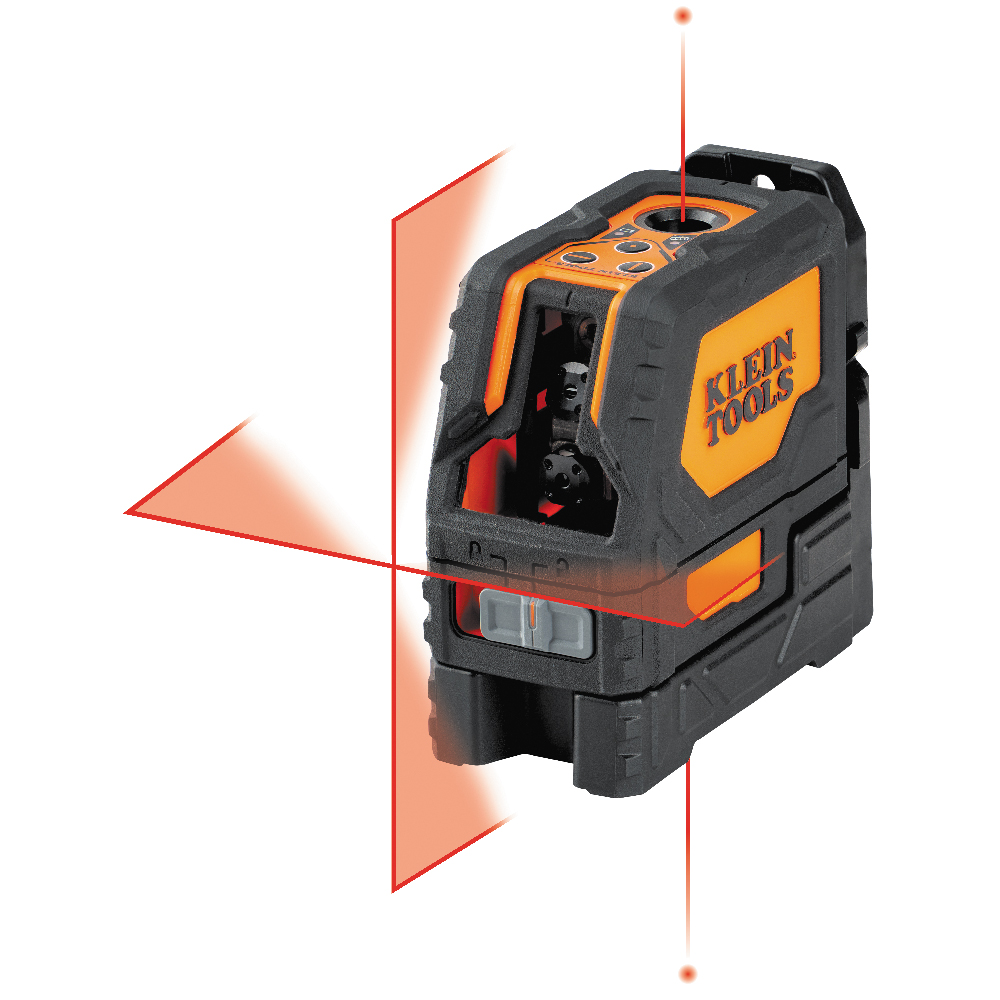

Self-Levelling Red Cross-Line Laser Level | Four Beams | IP54 Rated Wattmaster
The Self-Levelling Red Cross-Line Laser Level is designed for precision in professional construction and electrical work.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Laser wavelength: 630–680 nm
- Laser class: Class II
- Laser power: ≤ 1mW per beam
- Number of beams: Four (horizontal, vertical, plumb up, plumb down)
- Accuracy: ±2 mm per 10 m for vertical & horizontal, ±3 mm per 10 m plumb up, ±4 mm per 10 m plumb down
- Working range: 150 feet (45.7 m)
- Material: ABS housing with electronic components
- Batteries: 3 x AA 1.5V alkaline
- Ingress protection: IP54 water and dust resistant

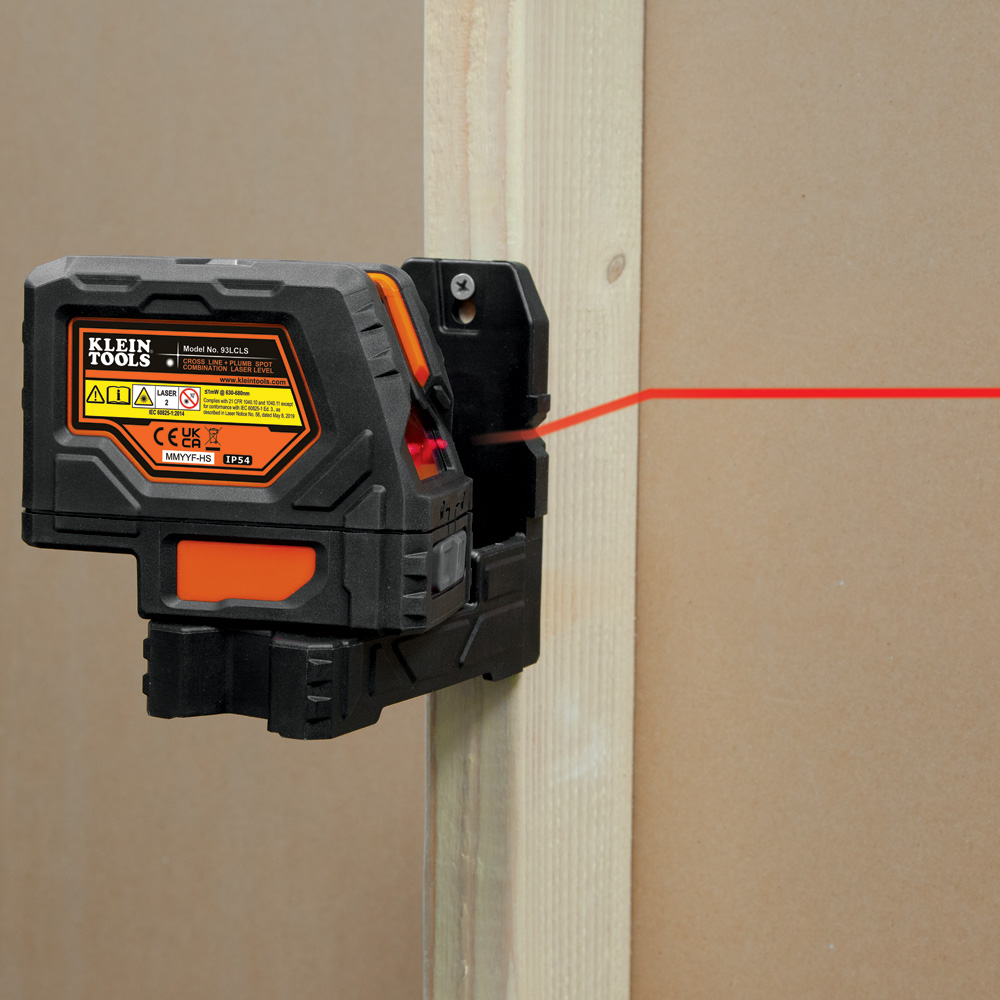

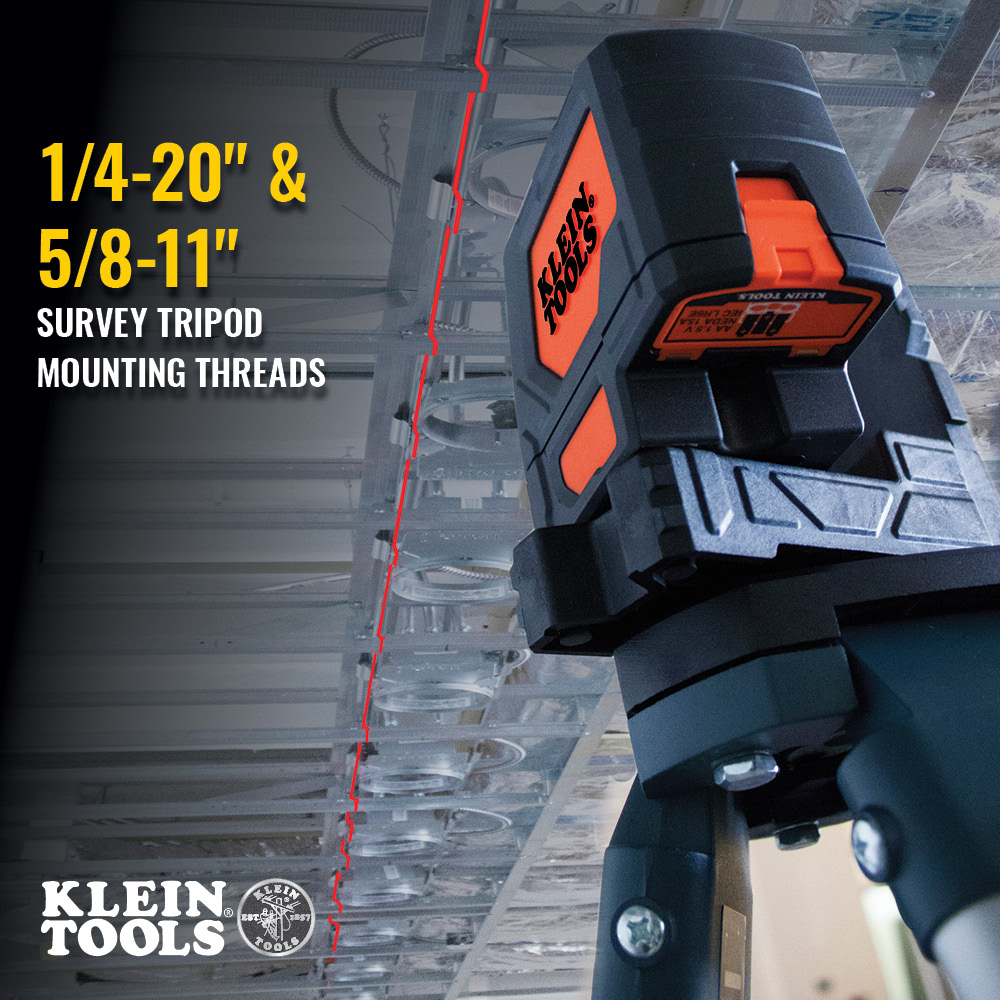

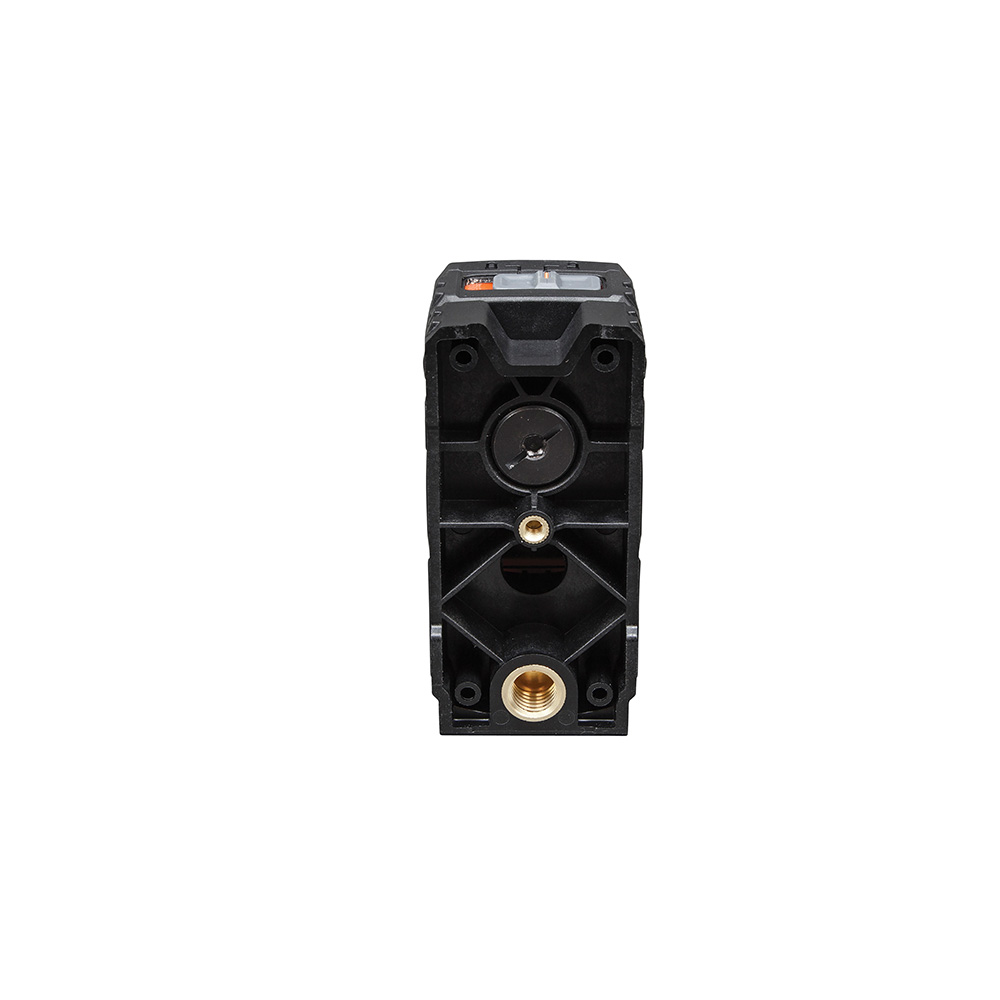

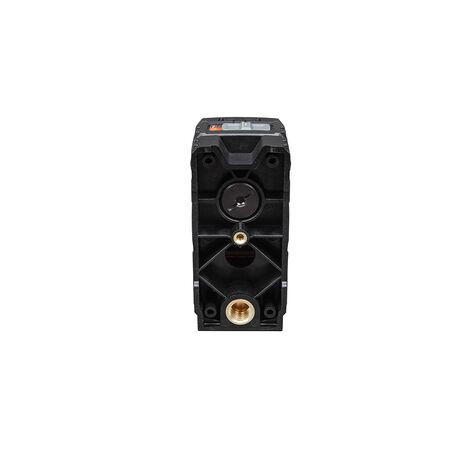

- Mounting: Integrated magnetic 360° bracket with 1/4'' and 5/8'' tripod threads, ceiling clamp included
- Transit locking mechanism: Yes
- Low battery indicator: Yes
- Dimensions (H x L x W): 127mm x 135mm x 66mm
- Weight: 0.68 kg
Key Features
- Self-levelling red laser level with horizontal and vertical lines
- Projects lines independently or together for versatile alignment
- Rugged IP54 rated water and dust resistant body

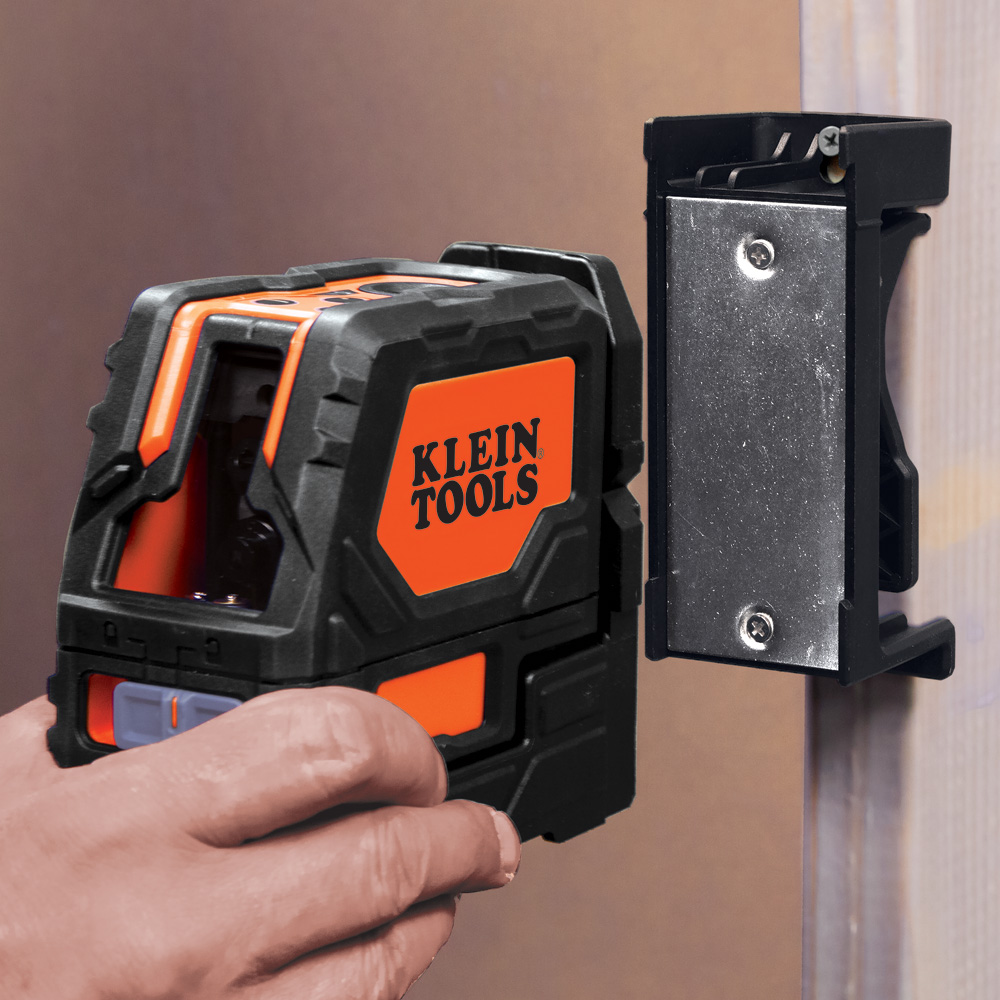

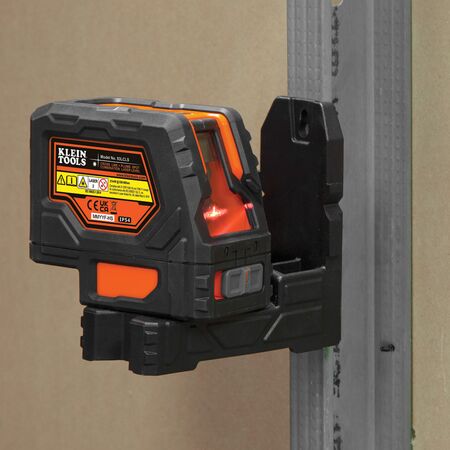

- Integrated magnetic 360° mounting bracket with tripod threads
- Additional ceiling grid mounting clamp included

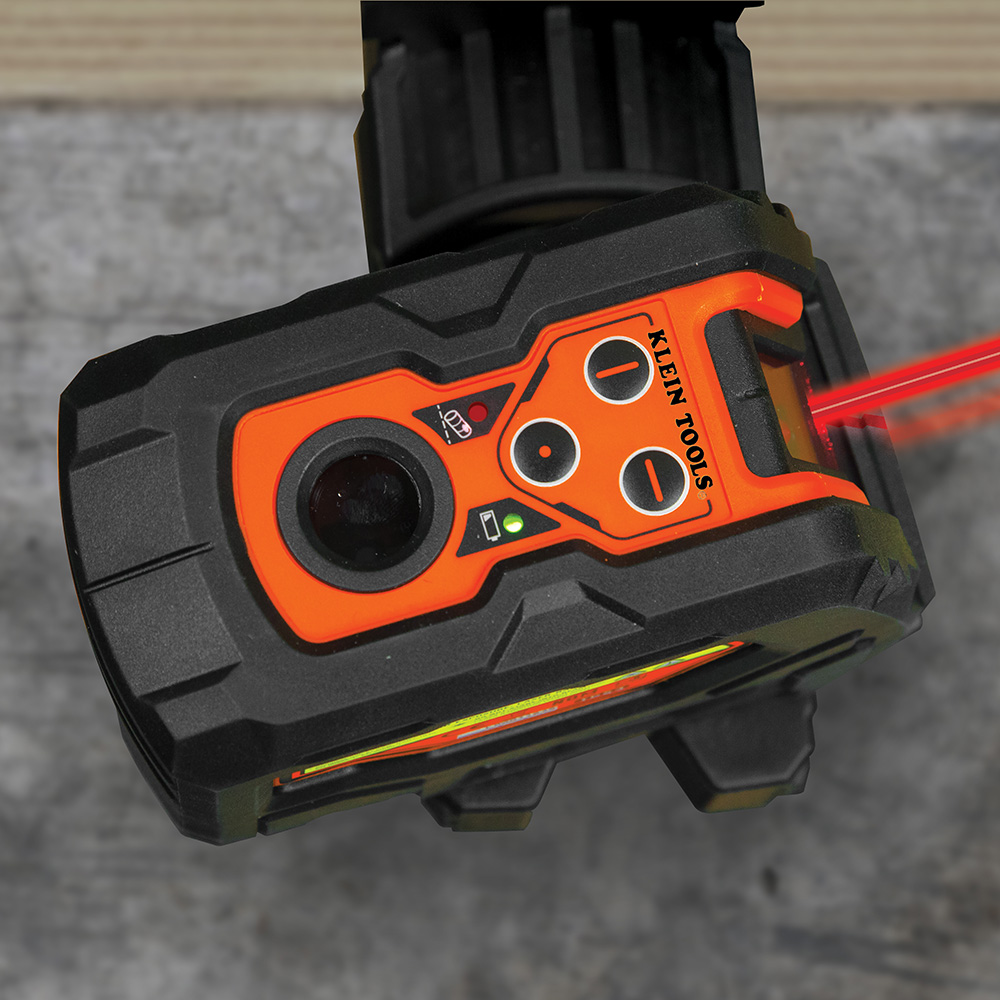

- Low-battery indicator and easy battery access
- Class II laser with ≤ 1mW power per beam

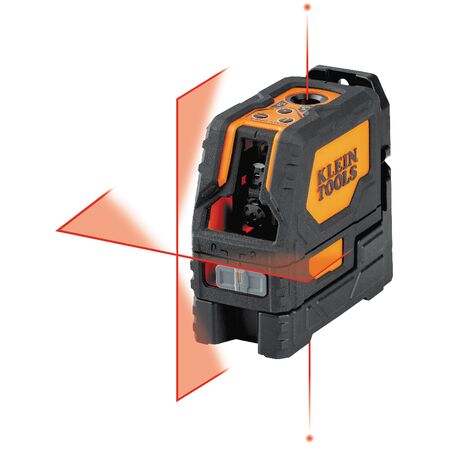

- Four beams: horizontal, vertical, plumb up, and plumb down
Professional Installation Requirements
- No professional installation required; designed for easy use by professionals and DIY users.
Applications

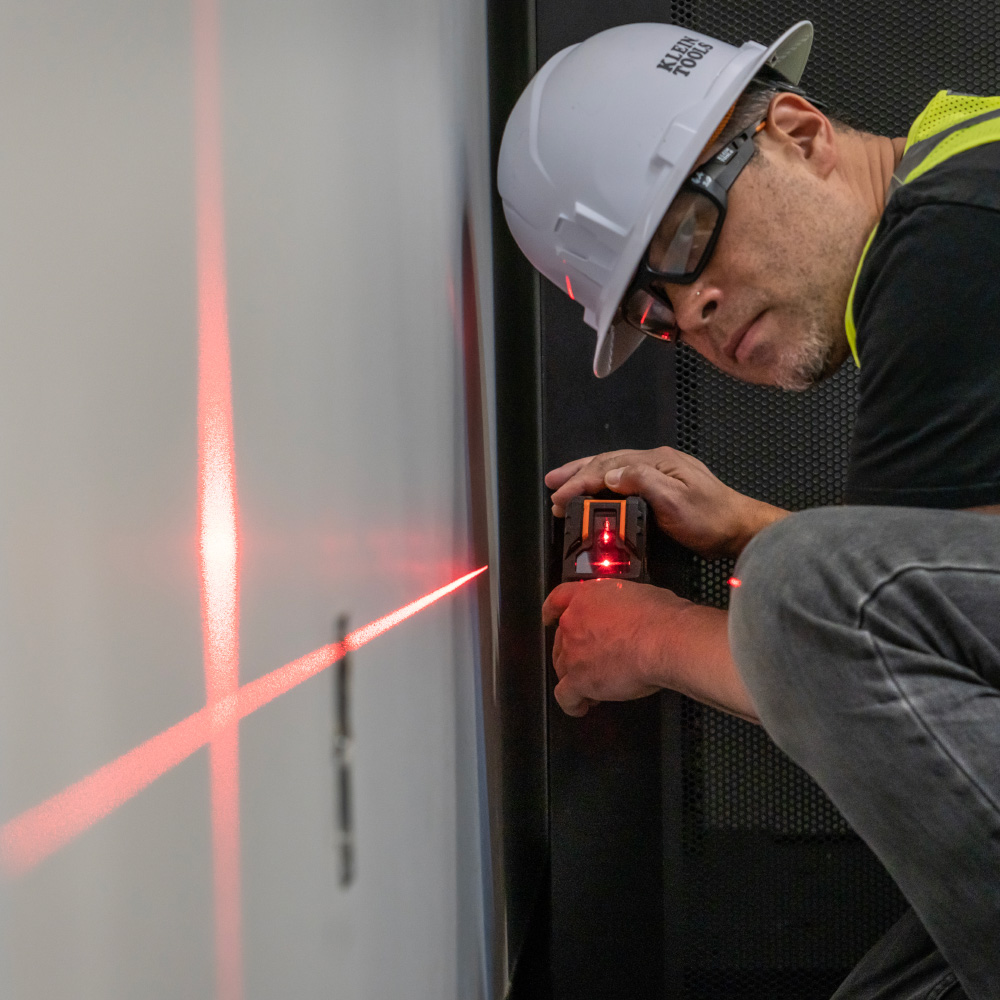

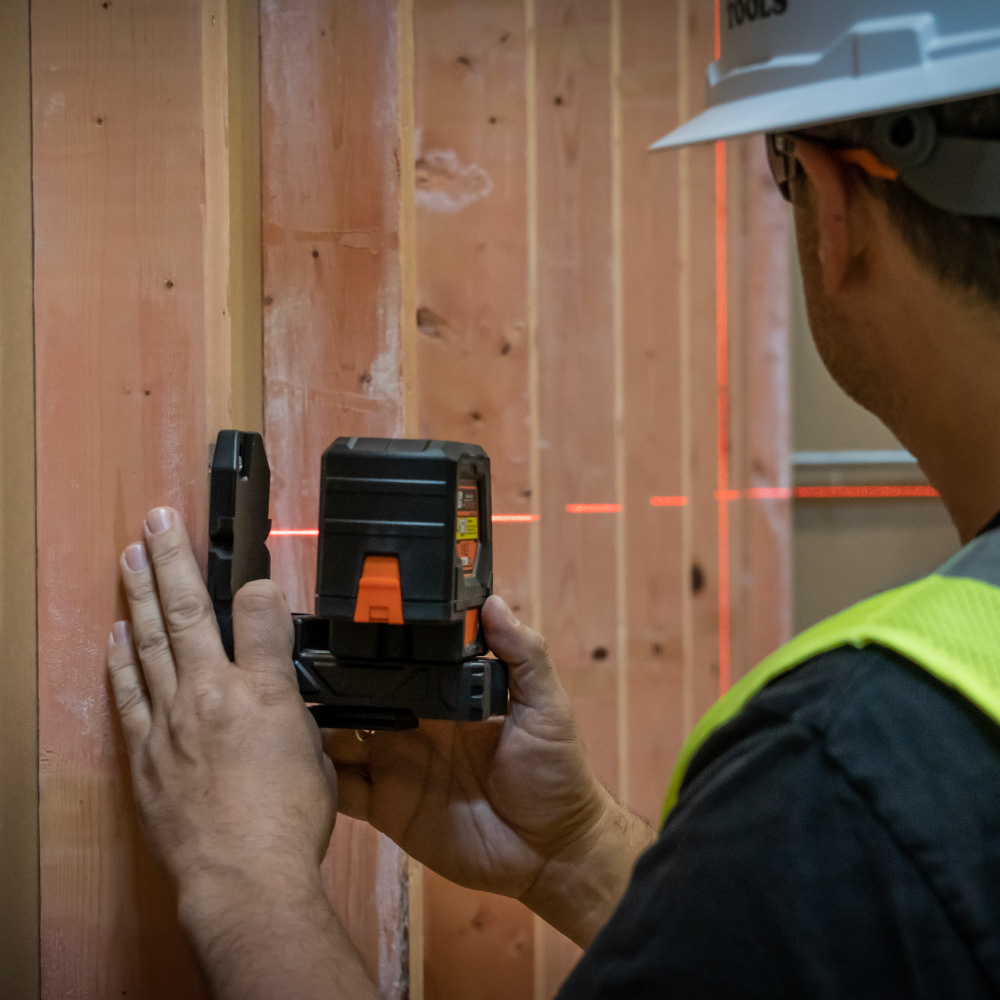

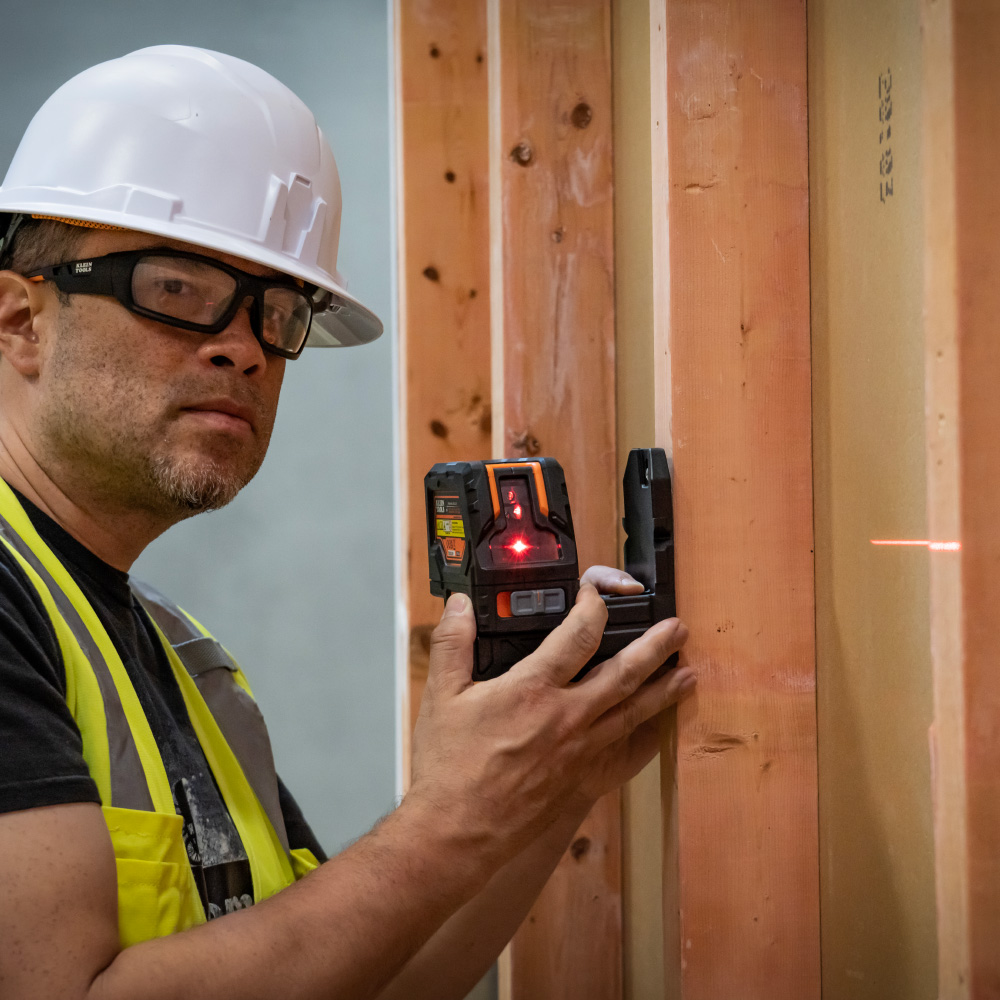

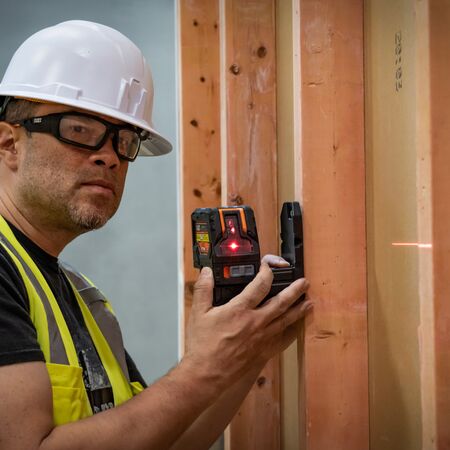

- Professional laser levelling and alignment for construction and electrical work
- Hanging pictures and aligning fixtures

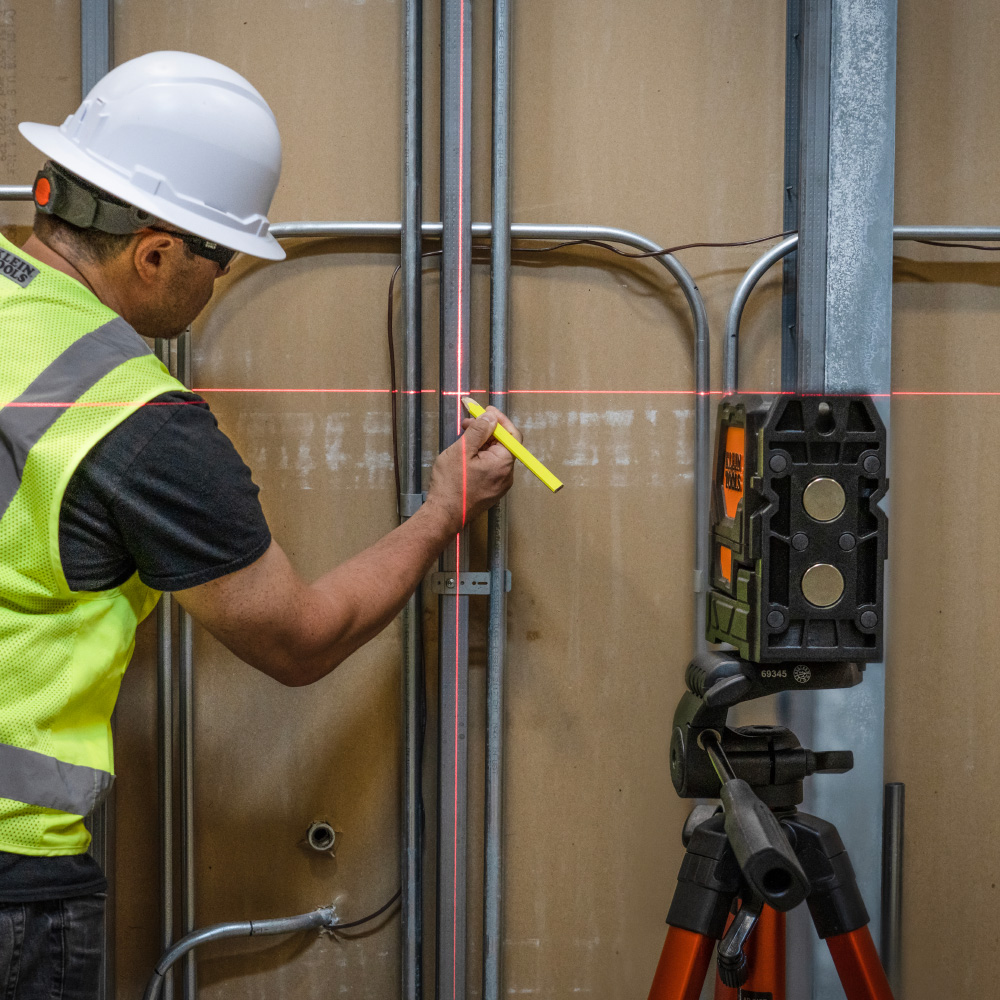

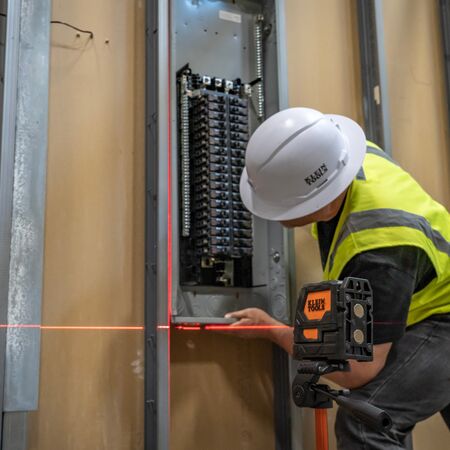

- Running conduit and installing electrical panels
- Ceiling grid alignment and layout tasks
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable design extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; refer to Wattmaster for details.
Available Now
The Wattmaster Self-Levelling Red Cross-Line Laser Level with Red Plumb Spot is available for immediate purchase, ideal for professional construction, electrical, and alignment applications.
