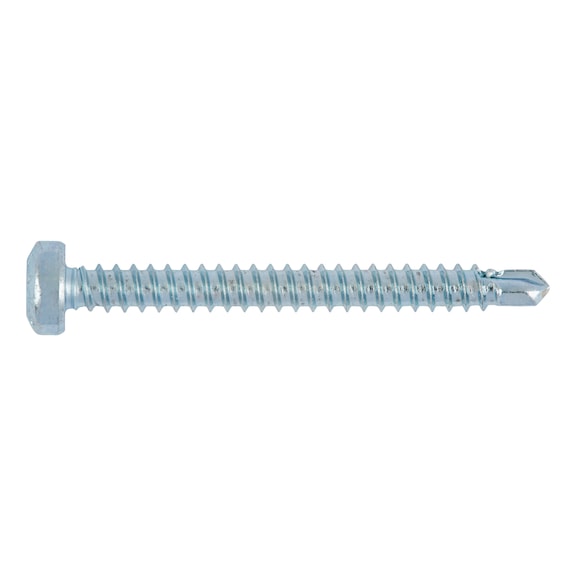

Self-Tapping Drill Screw | Steel Case-Hardened | Zinc Plated | AW Drive | by Wurth
The Self-Tapping Drill Screw is designed for efficient fastening in steel and aluminum applications. With a steel case-hardened body and zinc plating for corrosion resistance, this screw features a drilling tip that eliminates the need for center-punching, reducing assembly time by at least 50%. Ideal for professionals fastening steel profiles on substructures up to 3 mm thick, it ensures optimal torque transmission and compliance with structural standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Self-Tapping Drill Screw | Steel Case-Hardened | Zinc Plated | AW Drive | by Wurth
Brand: Wurth
SKU: 2063913
Alternatively Known As: Self-tapping drill screw, Steel drilling screw, Zinc plated tapping screw, AW drive screw
Technical Specifications
- Material: Steel
- Surface: Zinc plated
- RoHS-compliant: Yes
- Head type: Pan head
- Drive type: AW
- Thread type: Self-tapping screw thread
- Shape of tip: Drilling tip
- Underground: Steel, Aluminum
- Nominal diameter (d1): 3.9 mm
- Length (l1): 13 mm
- Head diameter (dk): 7.5 mm
- Head height (k1): 3.1 mm
- Drill tip length (lp): 4 mm
- Screw-thread length with drill tip: 10.5 mm
- Internal drive: AW20
- Min. recommended substructure thickness: 1.5 mm
- Max. material thickness to be drilled through (metal): 3.0 mm
- Min./max. attachment thickness: 1.5-6.5 mm
- Min./max. recommended installation speed (idling): 1700-2500 rpm
- Dimensions (H x L x W): 3.1mm x 13mm x 7.5mm
- Weight: 0.1 kg
Key Features
- Assembly time reduced by at least 50% using the drill tip for drilling without centre-punching, thread forming, and fastening
- Additional optimal torque transmission by the AW drive for steel/steel applications with diameters 4.2 mm, 4.8 mm, and 5.5 mm
- Steel case-hardened and galvanized blue passivated for corrosion resistance
- Pan head with AW20 internal drive
- Self-tapping screw thread with drilling tip shape
Professional Installation Requirements
- Installation should be performed by professionals familiar with fastening steel profiles and substructures to ensure compliance with structural standards and optimal fastening performance.
Applications
- Fastening steel profiles on steel substructures up to 3 mm thickness
- Suitable for steel and aluminum underground materials
- Component combinations tI/tII in accordance with approval ETA-10/0184
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth provides standard product warranty against manufacturing defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth Steel Case-Hardened Self-Tapping Screw with Drill Tip is available for immediate purchase, ideal for construction and industrial fastening applications.
