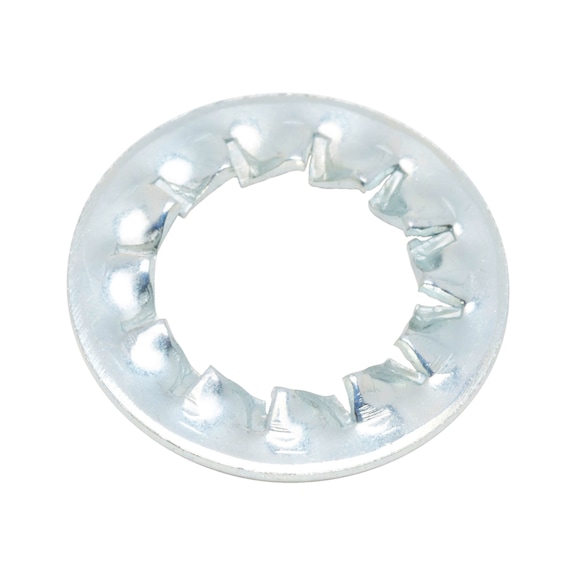

Serrated Lock Washer DIN 6798 | Internally Serrated | Zinc-Plated Steel | Corrosion Resistant | @Pack of 50 | by Wurth
Serrated Lock Washer DIN 6798 features an internally serrated design and is made from zinc-plated steel, ensuring excellent corrosion resistance. Ideal for mechanical fastening applications, this washer is perfect for automotive assembly and industrial machinery. With compliance to DIN 6798 standards, it guarantees secure locking for M12 screw threads, making it a reliable choice for engineers and technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Lock Washer DIN 6798 | Internally Serrated | Zinc-Plated Steel | Corrosion Resistant | @Pack of 50 | by Wurth
Brand: Wurth
SKU: 42812
Alternatively Known As: Internal Serrated Lock Washer, DIN 6798 J Washer, Zinc Plated Lock Washer, Blue Passivated Lock Washer
Technical Specifications
- Standard: DIN 6798
- Material: Steel
- Surface Finish: Zinc plated with blue passivation
- Form: J
- Design: Internal serrating
- Suitable for screw thread: M12
- Internal diameter (d1): 13 mm
- Outer diameter (d2): 20.5 mm
- Height: 3 mm
- Thickness: 1 mm
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3mm x 20.5mm x 20.5mm
- Weight: 0.02 kg
Key Features
- Internally serrated design for enhanced locking capability
- Zinc-plated steel with blue passivation for corrosion resistance
- Complies with DIN 6798 standard
- Suitable for M12 screw threads
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
- Mechanical fastening applications requiring secure locking
- Automotive assembly and maintenance
- Industrial machinery and equipment
- General engineering and construction
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Serrated Lock Washer is available for immediate purchase, ideal for mechanical and industrial fastening applications.
