Serrated Washer Type A DIN 6797 | Externally Serrated Design | Zinc-Plated Steel | Blue Passivated | @Pack of 100 | by Wurth

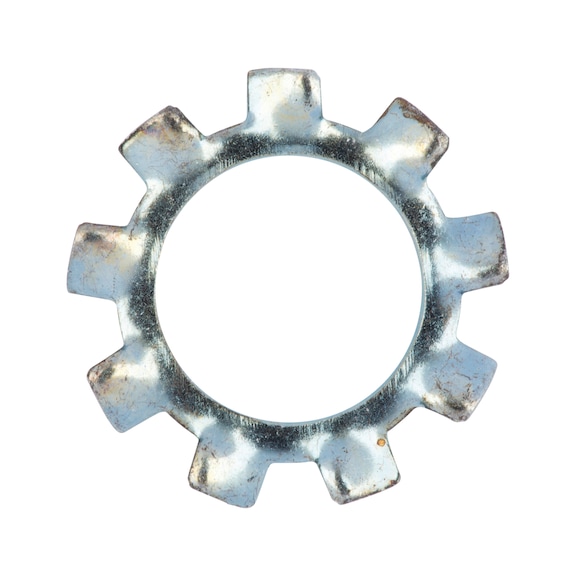

Serrated Washer Type A DIN 6797 features an externally serrated design and is made from zinc-plated steel, ensuring enhanced locking capability for secure fastening. Ideal for industrial, automotive, and construction applications, this washer is RoHS-compliant and built to meet DIN standards, providing durability and corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Serrated Washer Type A DIN 6797 | Externally Serrated Design | Zinc-Plated Steel | Blue Passivated | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 4235
Alternatively Known As: Externally Serrated Spring Washer, DIN 6797 Type A Washer, Zinc Plated Serrated Washer
Technical Specifications
- Suitable for screw thread: M5
- Internal diameter (d1): 5.3 mm
- Outer diameter (d2): 10 mm
- Height (h1): 1.2 mm
- Thickness: 0.6 mm
- Material: Steel
- Surface: Zinc plated with blue passivation (A2K)
- Form: Type A
- Design: Externally serrated
- DIN standard: 6797
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.2mm x 10mm x 10mm
- Weight: 0.01 kg
Key Features
- Externally serrated design for enhanced locking capability
- Spring-loaded fastening element providing axial spring action
- Zinc-plated steel with blue passivation (A2K) for corrosion resistance
- Complies with DIN 6797 Type A standard
Professional Installation Requirements
- Installation by a qualified technician or engineer is recommended to ensure proper fastening and safety.
Applications
- Used in mechanical fastening applications requiring secure locking of screws and bolts
- Suitable for industrial, automotive, and construction fastening needs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Serrated Washer Type A DIN 6797 zinc-plated steel washers are available for immediate purchase, ideal for secure fastening in industrial and mechanical applications.
