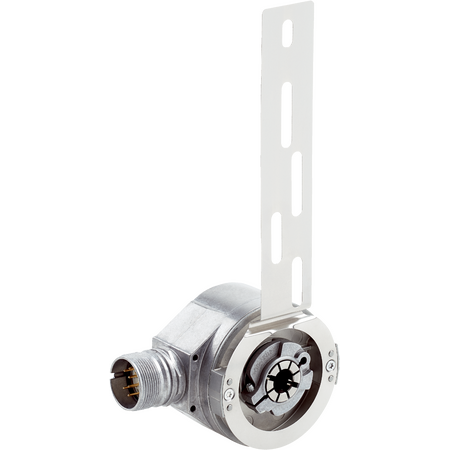

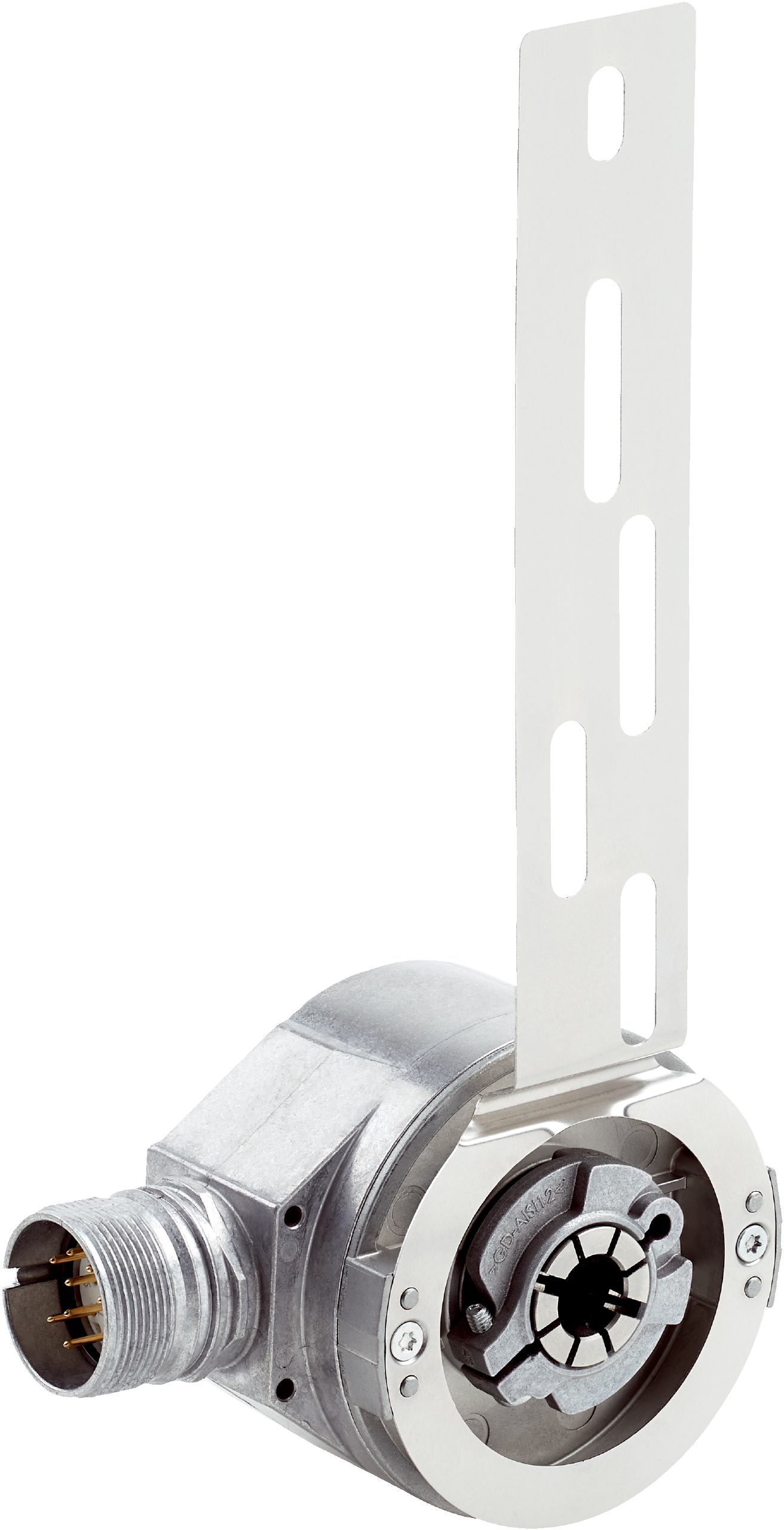

SFS60-HLAB2K02 Motor feedback systems
The SICK SFS60-HLAB2K02 motor feedback system offers precise absolute position sensing with high accuracy and robust design
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SFS60-HLAB2K02 | Motor feedback systems
Brand: SICK
SKU: 1073250
Alternatively Known As: Motor encoder, Absolute rotary encoder, HIPERFACE encoder, Shaft position sensor
Technical Specifications
- Sine/cosine periods per revolution: 1,024
- Number of absolute ascertainable revolutions: 1
- Total number of steps: 32,768
- Measuring step: 0.3 ″ with 12-bit interpolation
- Integral non-linearity: ±45 ″
- Differential non-linearity: ±7 ″
- Operating speed: ≤ 6,000 min⁻¹ for absolute position
- Available memory area: 1,792 Byte
- System accuracy: ±52 ″
- Code type: Binary
- Code sequence: Rising for clockwise shaft rotation
- Communication interface: HIPERFACE®
- Connection type: Male connector, M23, 12-pin, radial
- Supply voltage: 7 V DC to 12 V DC
- Recommended supply voltage: 8 V DC
- Current consumption: < 80 mA (no load)
- Output frequency for sine/cosine signals: ≤ 200 kHz
- Shaft version: Blind hollow shaft
- Shaft diameter: 10 mm
- Shaft material: Stainless steel
- Flange material: Zinc diecast
- Housing material: Aluminum die cast
- Flange type: Stator coupling (BEF-DS02DFS/VFS)
- Weight: ≤ 0.25 kg
- Moment of inertia of rotor: 40 gcm²
- Operating speed max: ≤ 9,000 min⁻¹
- Angular acceleration max: ≤ 500,000 rad/s²
- Operating torque: 0.6 Ncm (+20 °C)
- Start up torque: +0.8 Ncm (+20 °C)
- Permissible static movement: ±0.3 mm axial, ±0.5 mm radial
- Permissible dynamic movement: ±0.2 mm axial, ±0.1 mm radial
- Ball bearing life: 3.6 x 10⁹ revolutions
- Operating temperature range: –40 °C to +115 °C
- Storage temperature range: –40 °C to +115 °C
- Relative humidity: 90%, no condensation
- Shock resistance: 100 g, 6 ms
- Vibration resistance: 20 g, 10 Hz to 2,000 Hz
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65 with mating connector
- Dimensions (H x L x W): 60mm x 40mm x 60mm
- Weight: 0.25 kg
Key Features
- High system accuracy of ±52 ″
- Sine/cosine periods per revolution: 1,024
- Total number of steps: 32,768
- Operating speed up to 6,000 min⁻¹ for reliable absolute position
- Binary code for absolute value with HIPERFACE® communication interface
- Robust aluminum die cast housing with IP65 enclosure rating
- Operating temperature range from –40 °C to +115 °C
- Low current consumption below 80 mA
- Blind hollow shaft with 10 mm diameter made of stainless steel
- High resistance to shocks (100 g) and vibrations (20 g)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with motor feedback systems and electrical safety standards to ensure proper connection and calibration.
Applications
- Industrial automation for precise motor position feedback
- Robotics requiring high accuracy shaft position sensing
- Machine tools and manufacturing equipment
- Motion control systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High accuracy reduces energy waste by optimizing motor control
- Durable design extends product life, reducing replacement frequency
- Low power consumption minimizes energy usage
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK SFS60-HLAB2K02 motor feedback system is available for immediate purchase, ideal for industrial automation and precision motor control applications.
