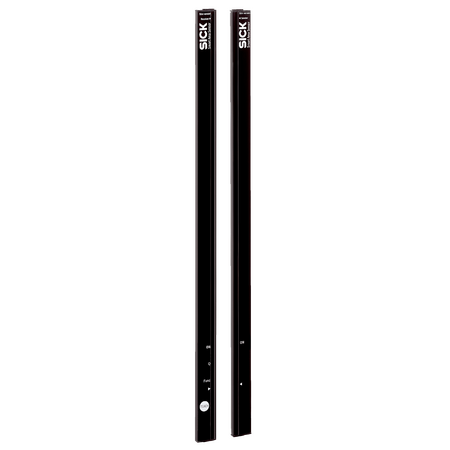

SGS4-F108P3PS2W0C | Automation light grids

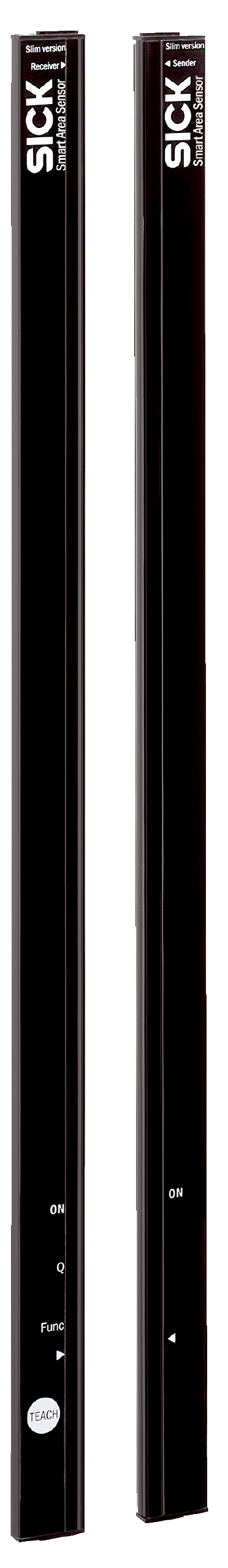

The SICK SGS4-F108P3PS2W0C automation light grid features 28 parallel infrared beams for reliable object detection and machine guarding in industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SGS4-F108P3PS2W0C | Automation light grids
Brand: SICK
SKU: 1216883
Alternatively Known As: Safety light curtain, light grid sensor, automation light barrier, machine safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 28
- Detection height: 1080 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Response time: 19 ms
- Operating range: 3 m
- Enclosure rating: IP65
- Housing material: PMMA
- Connection type: Cable with M8 male connector, 4-pin
- Shock resistance: 10 g
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 1152mm x 12mm x 37mm
- Weight: 0.14 kg
Key Features
- 28 parallel infrared light beams with 45 mm minimum detectable object size
- Detection height of 1080 mm with 40 mm beam separation
- Automatic teach and alignment aid for easy setup
- PNP switching output with short-circuit and reverse polarity protection
- IP65 rated housing for dust and water resistance
- Shock resistance of 10 g and vibration resistance of 5 g
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure correct alignment, wiring, and compliance with safety standards.
Applications
- Industrial automation safety
- Machine guarding
- Access control in manufacturing environments
- Detection of objects in automated processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable PMMA housing reduces need for frequent replacements
- Supports safer automation reducing workplace accidents and associated environmental impacts
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SGS4-F108P3PS2W0C automation light grid is available for immediate purchase, ideal for industrial automation and machine safety applications.
