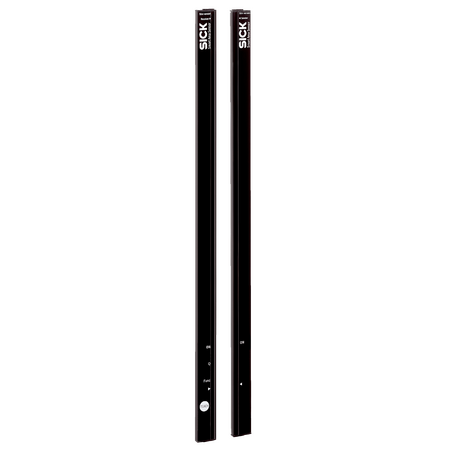

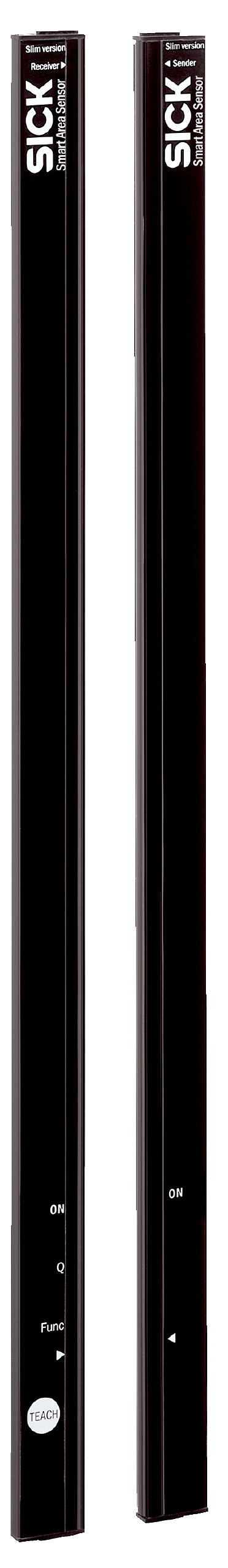

SGS4-S076P3PC1W0A | Automation light grids
The SICK SGS4-S076P3PC1W0A automation light grid features 20 parallel infrared beams for reliable object detection and machine safeguarding in industrial environments, with robust IP65 protection and advanced electronic features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SGS4-S076P3PC1W0A | Automation light grids
Brand: SICK
SKU: 1216199
Alternatively Known As: Safety light curtain, Automation light grid, Industrial light barrier, Machine safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Number of beams: 20
- Detection height: 760 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Inputs: Teach-in input (receiver), Test input (sender)
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Protection class: III
- Response time: 38 ms
- Maximum range: 4 m
- Operating range: 3 m
- Shock resistance: 10 g
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 100,000 lx, Indirect 150,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 832mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 20 parallel beams
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Detection height of 760 mm
- Infrared light source with 950 nm wavelength
- Supply voltage DC 24 V ± 20%
- IP65 rated enclosure for dust and water protection
- LED indication and optical synchronization
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
- Ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation safety light curtain applications
- Machine safeguarding and access control
- Detection of objects and personnel in hazardous zones
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared technology
- Durable housing reduces waste through extended product life
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SGS4-S076P3PC1W0A automation light grid is available for immediate purchase, ideal for industrial automation and machine safety applications.
