SGS4-S108P3TS2T00 | Automation light grids

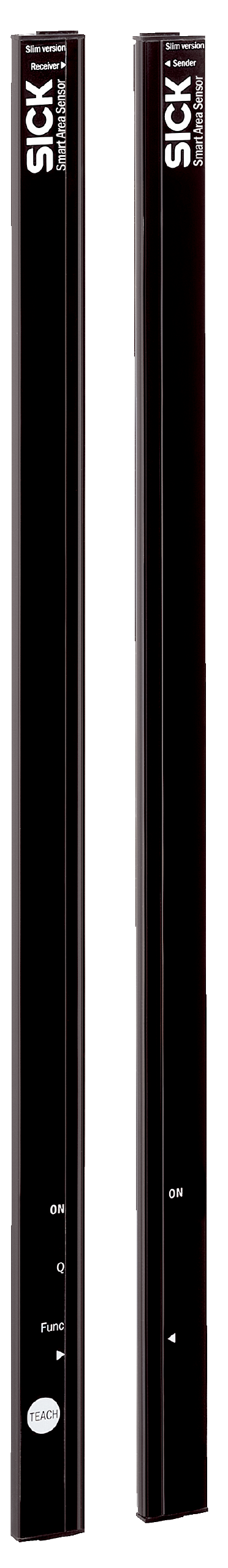

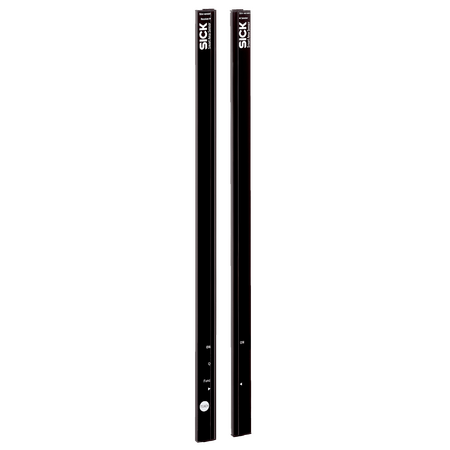

The SICK SGS4-S108P3TS2T00 is an automation light grid sensor designed for industrial safety applications, featuring 28 parallel infrared beams, robust IP65 housing, and advanced protection features.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SGS4-S108P3TS2T00 | Automation light grids
Brand: SICK
SKU: 1221852
Alternatively Known As: Safety light curtain, Automation light grid, Industrial light barrier, Machine safety sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Number of beams: 28
- Detection height: 1080 mm
- Parameterization: Teach-in button
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 70 mA
- Output current max: 100 mA
- Switching output: PNP
- Connection type: Cable with M12 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Operating temperature: -25°C to +55°C
- Response time: 19 ms
- Maximum range: 4 m
- Weight: 140 g
- Dimensions (H x L x W): 1152mm x 12mm x 37mm
- Weight: 0.14 kg
Key Features
- Sender/receiver sensor principle with 28 parallel beams
- Minimum detectable object size of 45 mm
- Slim optical light exit design
- Detection height of 1080 mm
- Teach-in button for parameterization
- PNP switching output with 100 mA max output current
- Infrared light source with 950 nm wavelength
- IP65 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protected outputs
- Shock resistance of 10 g and vibration resistance of 5 g
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety light grid systems to ensure compliance with safety standards and optimal performance.
Applications
- Industrial automation safety light grid applications
- Machine safeguarding and access control
- Detection of objects and personnel in hazardous zones
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable housing reduces waste through extended product life
- Compliance with RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SGS4-S108P3TS2T00 Automation Light Grid Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
