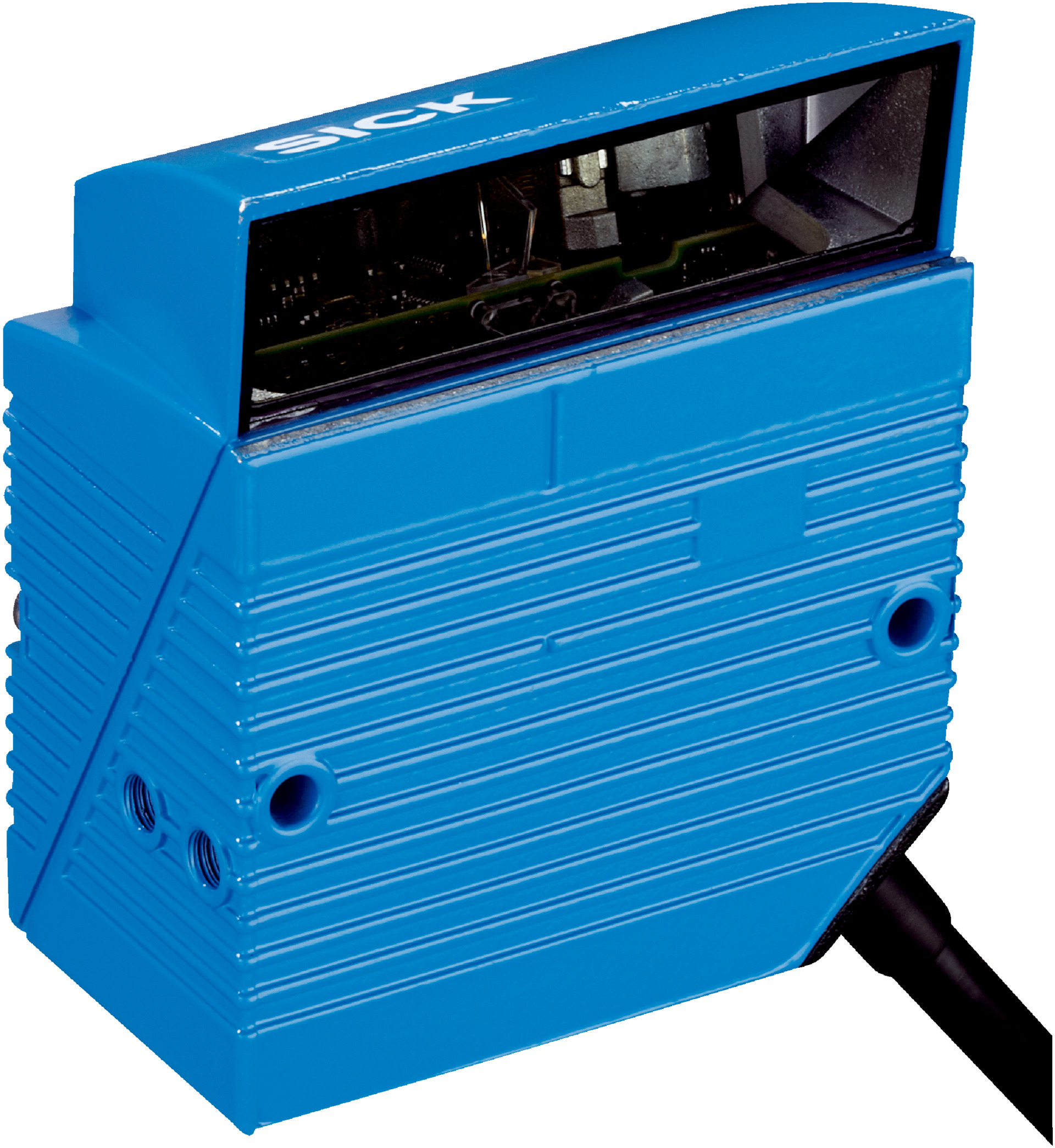

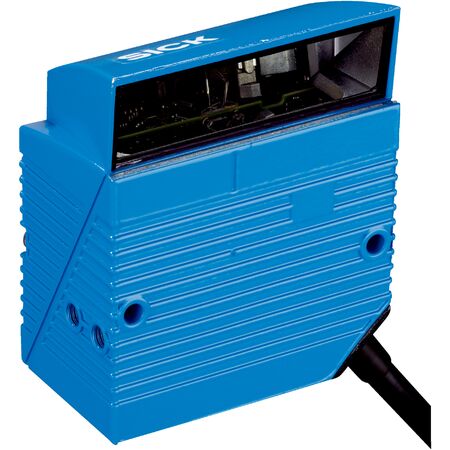

Short Range Line Scanner | Fixed Optical Focus | 1D Barcode Reader | IP65 Rated | by SICK
The Short Range Line Scanner CLV612-C2000 is designed for efficient barcode reading in industrial automation. With a fixed optical focus and the ability to read various 1D barcodes, it operates at a high scanning frequency of 400 Hz to 1000 Hz. Its robust aluminum die cast housing ensures durability, while the IP65 rating provides protection against dust and water, making it ideal for logistics, packaging, and manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Side (105°)
- Sensor type: Line scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2, compliant with IEC 60825-1
- Aperture angle: ≤ 50°
- Reading distance: 28 mm to 78 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.1 mm to 0.2 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Enclosure rating: IP65
- Protection class: III
- Weight: 295 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, UPC, EAN, Codabar, Pharmacode
- Number of codes per scan: 1 to 10 (standard decoder)
- Interfaces: RS-232 serial, CAN bus
- Digital inputs/outputs: 4 inputs, 4 outputs
- Indicators: RGB LED and beeper
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.3 kg
Key Features
- Short range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, UPC, EAN, and more
- High scanning frequency from 400 Hz to 1000 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including RS-232 and CAN
- Visible red laser light source (655 nm) with laser class 2 safety
- RGB LED and acoustic indicators for status feedback
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and packaging for code verification
- Manufacturing for quality control and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces replacement frequency and waste
- Low power consumption of 2.8 W supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV612-C2000 Short Range Line Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
