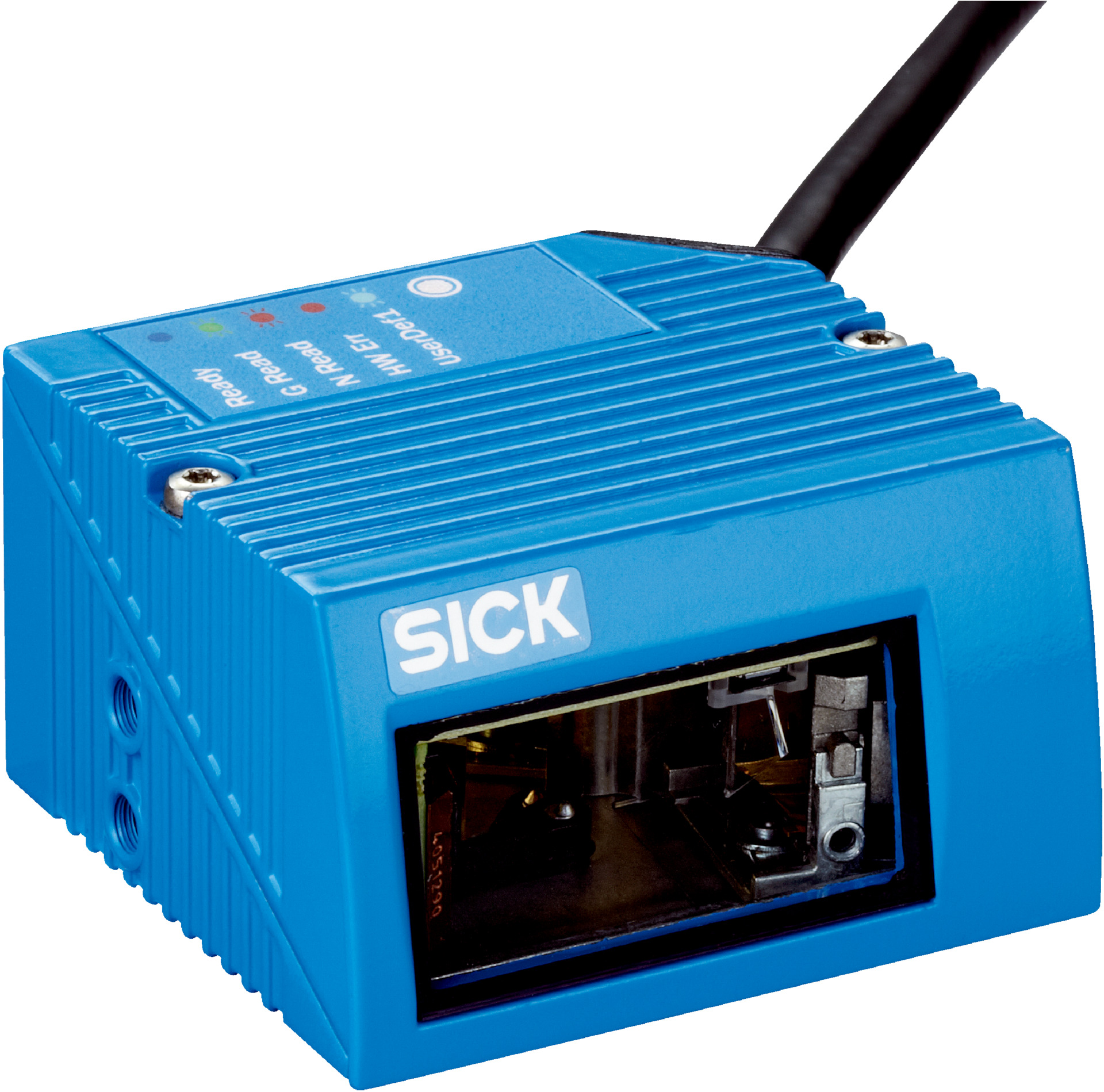

Short Range Raster Barcode Scanner | Reads 1D Codes | IP65 Rated | by SICK
The Short Range Raster Barcode Scanner CLV612-C1000 is designed for efficient industrial barcode scanning, capable of reading all current 1D barcode types including Code 39 and UPC. With a high scanning frequency of 400 Hz to 1000 Hz and a durable IP65-rated aluminum housing, it’s perfect for manufacturing and logistics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Version: Short Range
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Reading field: Front
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser spot, 655 nm
- Laser class: 2, compliant with IEC 60825-1:2014+A11:2021
- Aperture angle: ≤ 50°
- Reading distance: 43 mm to 93 mm
- Scanning frequency: 400 Hz to 1000 Hz
- Code resolution: 0.1 mm to 0.2 mm
- Raster height: 15 mm with 8 lines at 200 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 2.8 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 265 g including cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5, Pharmacode
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1 to 10 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: 1,500 (500 for multiplexer function in CAN operation)
- Number of multiple readings: 1 to 99
- Interfaces: RS-232 serial, CAN sensor network
- Digital inputs: 4
- Digital outputs: 4
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 61mm x 66mm
- Weight: 0.265 kg
Key Features
- Short range raster scanner with fixed optical focus
- Reads all current 1D barcode types including Code 39, Code 128, UPC, EAN, and Pharmacode
- High scanning frequency from 400 Hz to 1000 Hz
- Durable aluminum die cast housing with IP65 rating
- Laser class 2 with visible red light source at 655 nm
- Multiple interface options including RS-232 and CAN
- Equipped with RGB LED and acoustic indicators
- Robust against vibration and shock per EN standards
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial barcode scanning for 1D codes
- Label and printed code reading in manufacturing and logistics
- Integration in automated systems requiring precise short-range scanning
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 2.8 W reduces energy usage
- Durable design extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK CLV612-C1000 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning applications.
