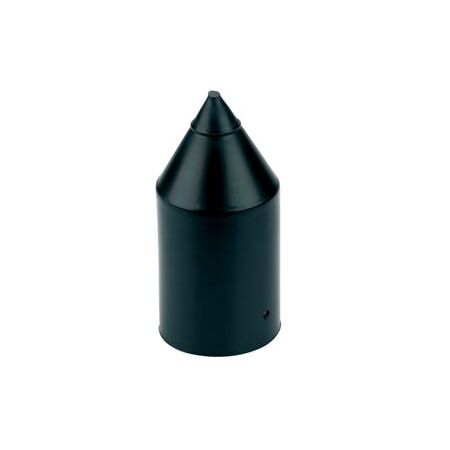

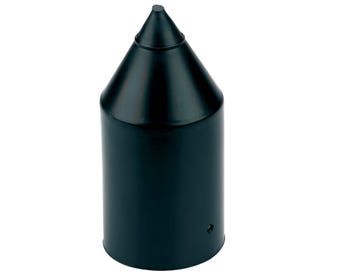

Shroud Conical Insulator | 150mm x 95mmD | 8mm Hole | Flame Retardant PVC | Flexible Design by Cabac
The Cabac Shroud Conical 150mm x 95mmD with 8mm hole is a flame retardant PVC insulator designed to cover live bolted lug connections inside pillar boxes, enhancing electrical safety by preventing accidental contact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Shroud Conical 150mm x 95mmD - 8mm Hole
Brand: Cabac
SKU: ISP-BK-LG-8MM
Alternatively Known As: Electrical Insulation Shroud, Pillar Box Shroud, Bolted Lug Insulator, PVC Electrical Shroud
Technical Specifications
- Material: PVC Compound
- Voltage Rating: 1 kV
- Thickness: Minimum 2mm
- Flammability: Non Ignitable (AS 2420 Appendix B)
- Dimensions (H x L x W): 95mm x 95mm x 150mm
- Weight: 0.05 kg
Key Features
- Fits over bolted lug connections inside pillar boxes to insulate live connections
- Made from flame retardant PVC compound
- Flexible enough to reshape around bolted connectors
- Can be fixed in position using a cable tie
- Available in conical or flat top design with or without holes
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper insulation and safety compliance.
Applications
- Electrical pillar boxes for insulating live bolted lug connections
- Electrical power connectivity and pillar termination accessories
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from durable flame retardant PVC which extends product life and reduces waste
- Helps prevent electrical faults and hazards, contributing to safer electrical installations
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac Shroud Conical 150mm x 95mmD - 8mm Hole is available now for immediate purchase. Ideal for electrical pillar box applications requiring safe insulation of live connections.
