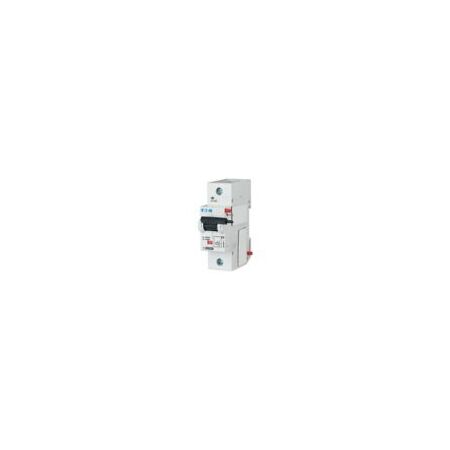

Shunt Release Accessory for Miniature Circuit Breakers | 230V AC | 2A Rated Current | RoHS Compliant by Eaton
Enhance your circuit protection with the Eaton Z-LHASA/230 shunt release accessory, designed for miniature circuit breakers. With a rated operational voltage of 230V AC and a switch current of 2A, it's perfect for industrial and commercial applications, ensuring compliance and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Shunt Release Accessory for Miniature Circuit Breakers | 230V AC | 2A Rated Current | RoHS Compliant by Eaton
Brand: Eaton
SKU: Y7-248442
Alternatively Known As: Eaton Shunt Release, Miniature Circuit Breaker Accessory, Z-LHASA Shunt Release
Technical Specifications
- Product Length/Depth: 80 mm
- Product Height: 75 mm
- Product Width: 39.1 mm
- Rated operational voltage (Ue) - max: 230 V AC
- Rated switch current: 2 A
- Number of contacts (normally closed contacts): 1
- Number of contacts (normally open contacts): 1
- Number of poles at main contact unit - max: 1
- Ambient operating temperature range: -5 °C to 40 °C
- Assembly width: 1.5 TE
- Device fitting: Miniature circuit breaker (MCB)
- Functions: Shunt release for power circuit breaker
- Dimensions (H x L x W): 75mm x 80mm x 39.1mm
- Weight: 0.158 kg
Key Features
- Shunt release accessory for miniature circuit breakers (MCB)
- Rated operational voltage up to 230 V AC
- Rated switch current of 2 A
- Mounting method for fitting on left to AZ
- Suitable for current of main contact unit up to 2 A
- RoHS conform and certified to EN45545-2 IEC 61373
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper integration with circuit breakers.
Applications
- Switchgear for industrial and advanced commercial applications
- Used with shunt releases for power circuit breakers
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Supports efficient electrical switching to enhance energy management
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Z-LHASA/230 Shunt Release is available for immediate purchase, ideal for industrial and commercial switchgear applications.
