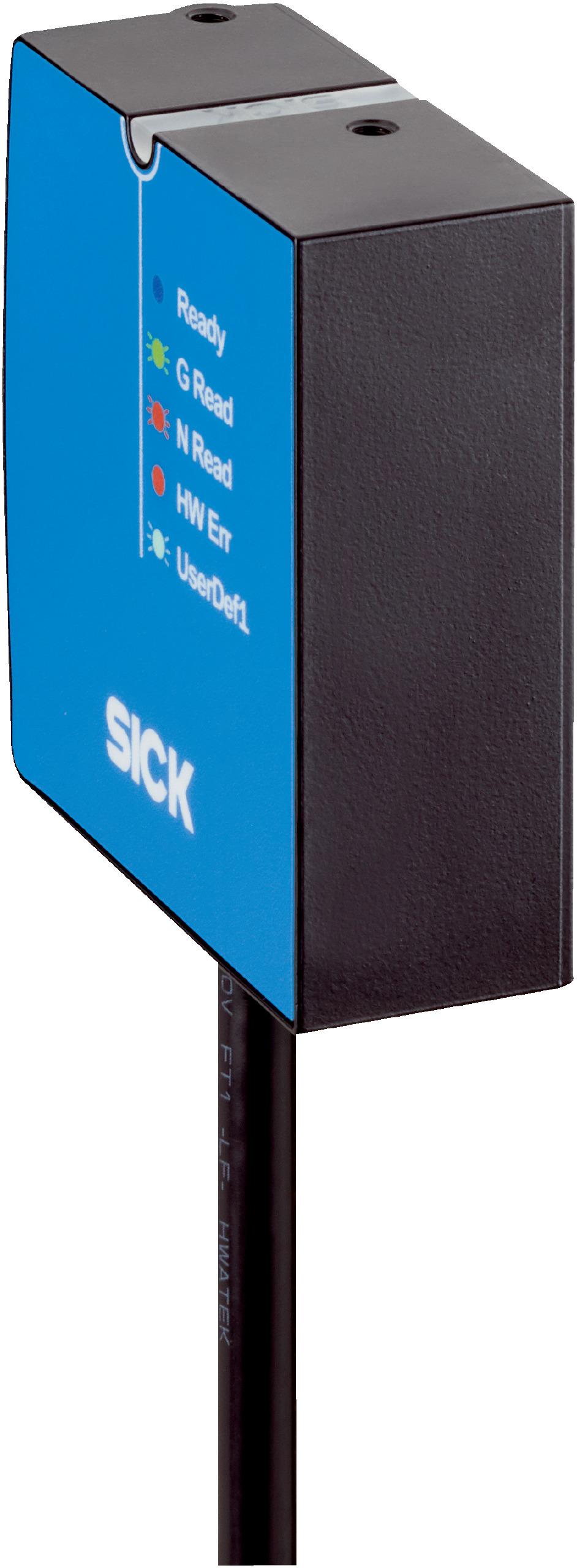

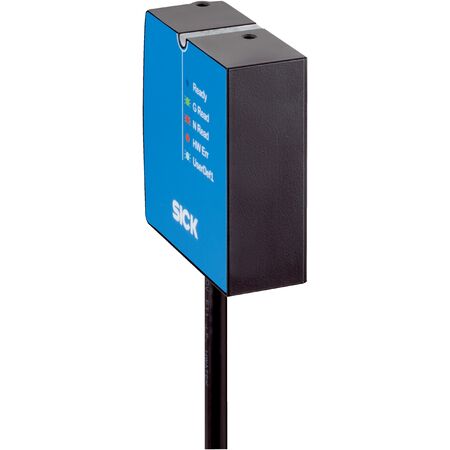

SICK CLV601-1D200 Barcode Scanner | CMOS Line Sensor | 2048 Pixels | IP40 Rated | by SICK
The SICK CLV601-1D200 barcode scanner features a high-resolution CMOS line sensor with 2048 pixels, making it perfect for industrial automation and logistics applications. With a reading distance of 15 mm to 70 mm and a scanning frequency of 750 Hz, it efficiently reads various 1D barcode types. Its durable IP40-rated housing ensures reliable performance in demanding environments, while the low power consumption enhances energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 9-pin D-sub male connector (2 m)
- Sensor type: CMOS line sensor
- Sensor resolution: 2048 pixels
- Optical focus: Fixed at 31 mm
- LED class: Risk group 0 (IEC 62471:2006-07, EN 62471:2008-09)
- Light source: Visible red LED, 626 nm
- Aperture angle: ≤ 71°
- Reading distance: 15 mm to 70 mm
- Scanning frequency: 750 Hz
- Reading angle tilt α: ±5° to ±25° depending on code resolution
- Pitch β: ±6° to ±15° depending on code resolution
- Skew γ: ±20° to ±30° depending on code resolution
- Code resolution: 0.125 mm to 0.5 mm
- Supply voltage: 5 V DC ±10%
- Power consumption: Typically 1 W
- Housing material: Zinc diecast
- Window material: Plastic
- Enclosure rating: IP40
- Protection class: III
- Weight: 230 g including cable
- MTBF: 100,000 hours
- Readable code structures: 1D codes
- Supported barcode types: Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5
- Print ratio: 2:1 to 3:1
- Number of codes per scan: 1
- Number of codes per reading interval: 1 to 15 (auto-discriminating)
- Number of characters per reading interval: 450
- Number of characters per code: up to 30
- Number of multiple readings: 1 to 100
- Interface: Serial RS-232 with data rates 2400 Baud to 250 kBaud
- Digital inputs: 1 (max 30 V)
- Digital outputs: 2 (max 50 mA)
- Indicators: 1 RGB LED, beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +50 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 5000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 20mm x 55mm x 52mm
- Weight: 0.23 kg
Key Features
- Cable connection type with 1 x 9-pin D-sub male connector (2 m)
- CMOS line sensor with 2048 px resolution
- Fixed optical focus at 31 mm
- Reading field from the side
- Reads 1D barcodes including Code 39, Code 128, Code 93, Codabar, UPC/GTIN/EAN, Interleaved 2 of 5
- Reading distance from 15 mm to 70 mm
- Scanning frequency of 750 Hz
- LED class Risk group 0 with visible red LED light source at 626 nm
- Enclosure rating IP40 and protection class III
- Operating temperature range 0 °C to +50 °C
- Supports serial RS-232 interface with data rates from 2400 Baud to 250 kBaud
- Equipped with RGB LED optical indicator and acoustic beeper
- Low power consumption at typically 1 W
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Label verification and tracking
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable zinc diecast housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV601-1D200 line scanner barcode reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
