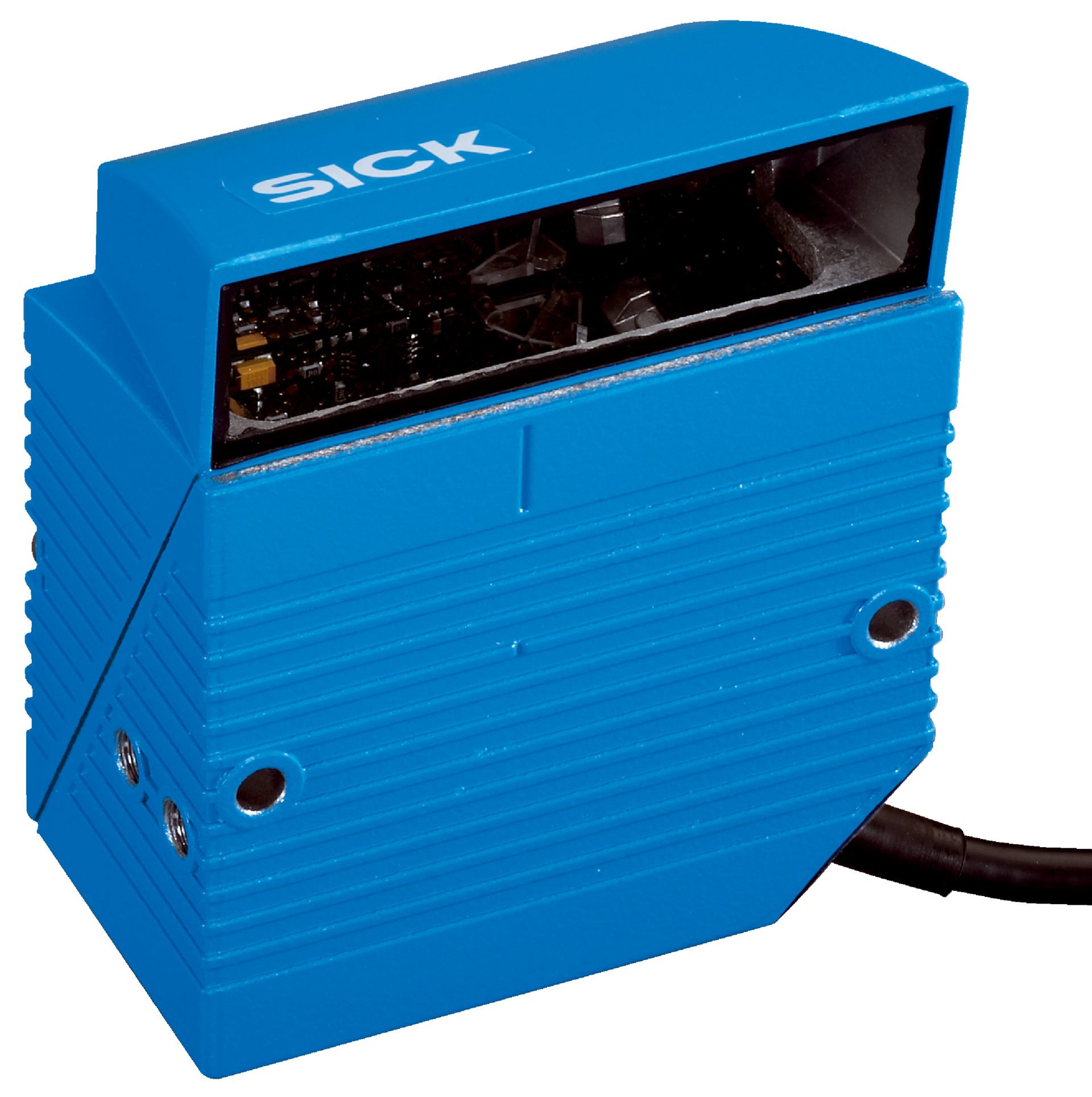

SICK CLV620-2000S01 Mid Range Line Scanner | IP65 Rated | 400 Hz to 1,200 Hz Scanning Frequency | by SICK
The SICK CLV620-2000S01 Mid Range Line Scanner is designed for efficient barcode reading in industrial automation. With a robust aluminum housing and an IP65 rating, it withstands harsh environments while reading 1D barcodes at high speeds of 400 Hz to 1,200 Hz. Ideal for logistics, manufacturing, and quality control applications, this scanner supports multiple interfaces and offers reliable performance for traceability systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Weight: 250 g without connecting cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Reading distance: 25 mm to 330 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.2 mm to 1 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (Standard decoder), 1 to 6 (SMART620)
- Number of codes per reading interval: 1 to 50
- Number of characters per reading interval: up to 1,500
- Interfaces: PROFINET, EtherCAT, Serial (RS-232, RS-422, RS-485), CAN, CANopen, PROFIBUS DP
- Digital inputs: 4
- Digital outputs: 4
- Optical indicators: 6 LEDs
- Acoustic indicators: Beeper/buzzer
- Configuration software: SOPAS ET
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90%, non-condensing
- Ambient light immunity: 2,000 lx on barcode
- Bar code print contrast (PCS): ≥ 60%
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.25 kg
Key Features
- Mid range line scanner with fixed optical focus
- Reads 1D barcodes including Code 39, Code 128, GS1 DataBar, and more
- Reading field side angle of 105° with aperture angle ≤ 50°
- High scanning frequency from 400 Hz to 1,200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple interface options including PROFINET, EtherCAT, Serial, CAN, CANopen, and PROFIBUS DP
- Laser class 2 with visible red light source at 655 nm
- Supports up to 50 codes per reading interval and up to 1,500 characters
- Equipped with 6 LEDs and acoustic indicators for status feedback
- Operating temperature range 0 °C to +40 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and traceability systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable aluminum housing extends product life reducing waste
- Low power consumption at 4.5 W supports energy efficiency
- Complies with laser safety standards minimizing environmental hazards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV620-2000S01 Mid Range Line Scanner Barcode Reader is available for immediate purchase, ideal for industrial automation and barcode scanning applications.
