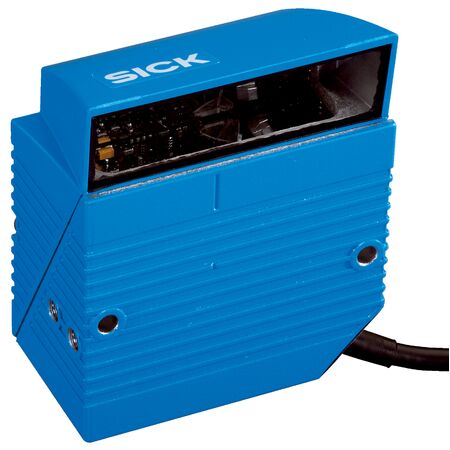

CLV622-3000 Short Range Raster Scanner IP65 Rated 105° Side Reading SICK
The SICK CLV622-3000 Short Range Raster Scanner is designed for efficient industrial barcode reading
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Connection type: Cable with 1 x 15-pin D-Sub HD male connector (0.9 m)
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III (VDE 0106/IEC 1010-1)
- Reading field: Side (105°)
- Optical focus: Fixed
- Light source: Visible red laser, 655 nm
- Laser class: 2 (IEC 60825-1:2014+A11:2021 compliant)
- Aperture angle: ≤ 50°
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1,200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, and others
- Number of codes per scan: 1 to 20 (standard decoder)
- Number of codes per reading interval: 1 to 50 (auto-discriminating)
- Number of characters per reading interval: up to 1,500
- Digital inputs: 4
- Digital outputs: 4
- Data transmission rate: 20 kbit/s to 1 Mbit/s
- Operating temperature: 0°C to +40°C
- Storage temperature: -20°C to +70°C
- Relative humidity: 90%, non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.25 kg
Key Features
- Short range raster scanner with fixed optical focus
- Side reading field of 105°
- Visible red laser light source at 655 nm
- Laser class 2 compliant with IEC 60825-1:2014+A11:2021
- High scanning frequency from 400 Hz to 1,200 Hz
- Reads all current 1D barcode types including Code 39, Code 128, GS1 DataBar, and more
- Multiple fieldbus interfaces including PROFINET, EtherCAT, CAN, CANopen, PROFIBUS DP
- Robust aluminum die cast housing with IP65 rating
- Operating temperature range 0°C to +40°C
- Equipped with 6 LEDs and acoustic indicators for status feedback
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements
- Low power consumption of 4.5 W enhances energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV622-3000 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode reading and automation applications.
