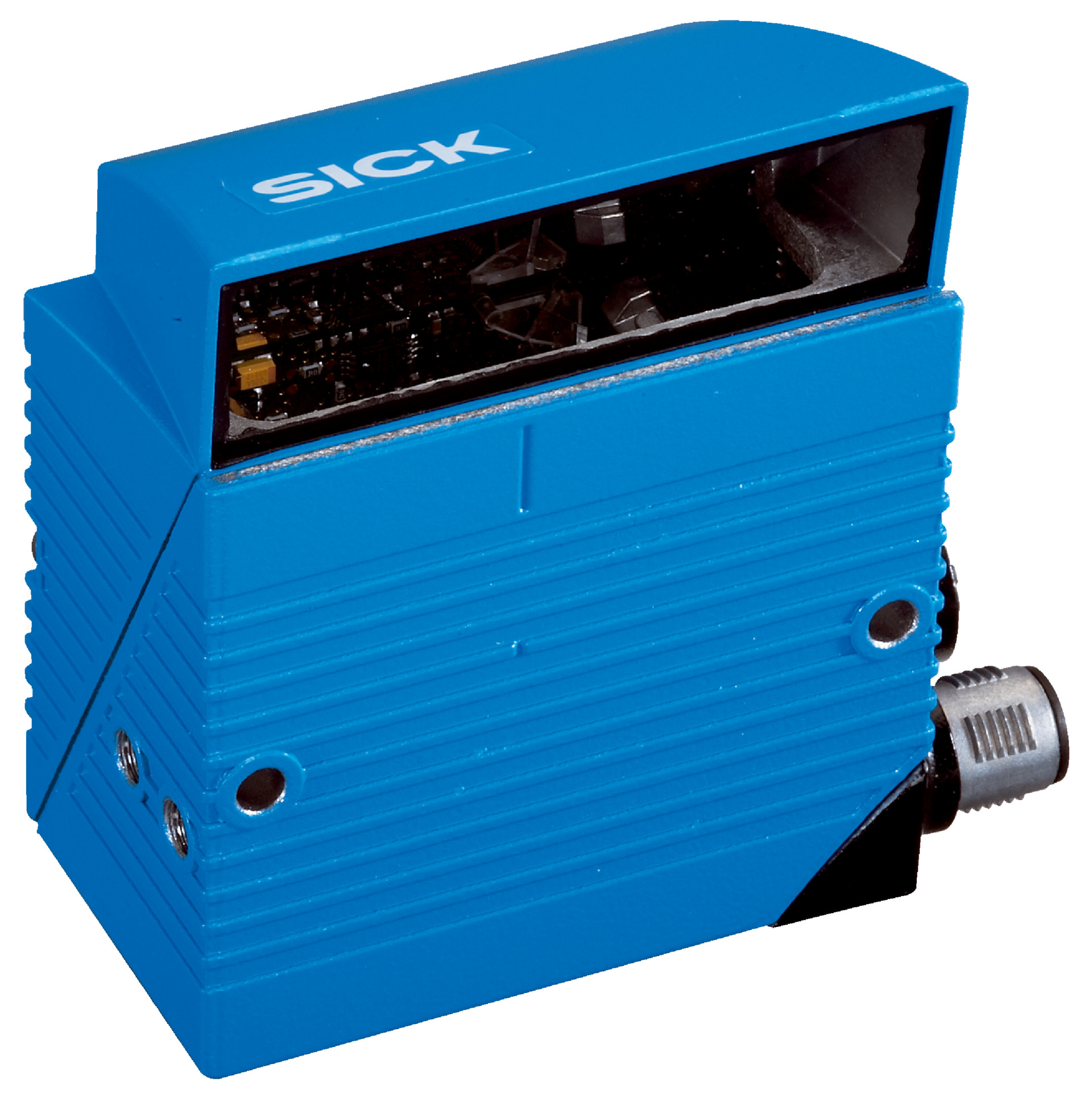

SICK CLV622-3120 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | High Scanning Frequency | by SICK
The SICK CLV622-3120 Short Range Raster Scanner is designed for efficient barcode reading in industrial automation. With Ethernet connectivity and a robust IP65-rated aluminum housing, it excels in logistics and manufacturing environments. This scanner reads 1D barcodes with high resolution and features a scanning frequency of 400 Hz to 1200 Hz, making it ideal for quality assurance and traceability applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SICK CLV622-3120 Short Range Raster Scanner | Ethernet Connectivity | IP65 Rated | High Scanning Frequency | by SICK
Brand: SICK
SKU: 1041799
Alternatively Known As: SICK CLV622 Raster Scanner, SICK Short Range Barcode Scanner, SICK Ethernet Barcode Reader
Technical Specifications
- Version: Short Range
- Connection type: Ethernet, 2 x M12 cylindrical connectors
- Reading field: Side 105°
- Sensor type: Raster scanner
- Optical focus: Fixed focus
- Light source: Visible red laser, 655 nm
- Laser class: 2 (complies with IEC 60825-1:2014+A11:2021)
- Aperture angle: ≤ 50°
- Reading distance: 55 mm to 200 mm
- Scanning frequency: 400 Hz to 1200 Hz
- Code resolution: 0.15 mm to 0.5 mm
- Raster height: 15 mm at 8 lines, 185 mm
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 4.5 W
- Housing material: Aluminum die cast
- Window material: Glass
- Enclosure rating: IP65
- Protection class: III
- Weight: 230 g without cable
- MTBF: 100,000 hours
- MTTF (Laser diode): 40,000 hours
- Readable code structures: 1D codes including Code 39, Code 128, GS1 DataBar, UPC, EAN, and others
- Data transmission rates: Ethernet 10/100 MBit/s, CAN 20 kbit/s to 1 Mbit/s, Serial 2,400 Baud to 115.2 kBaud
- Interfaces: Ethernet, PROFINET, EtherNet/IP™, EtherCAT®, Serial RS-232/422/485, CAN, CANopen, PROFIBUS DP
- Digital inputs: 3
- Digital outputs: 2
- Indicators: 6 LEDs and acoustic beeper
- Operating temperature: 0 °C to +40 °C
- Storage temperature: -20 °C to +70 °C
- Relative humidity: 90% non-condensing
- EMC: EN 61000-6-3 / EN 61000-6-2
- Vibration resistance: EN 60068-2-6
- Shock resistance: EN 60068-2-27
- Dimensions (H x L x W): 38mm x 80mm x 66mm
- Weight: 0.23 kg
Key Features
- Short range raster scanner with fixed optical focus
- Ethernet connectivity with multiple fieldbus options including PROFINET, EtherNet/IP™, EtherCAT®, CAN, CANopen, PROFIBUS DP
- Reads 1D barcodes with high resolution (0.15 mm to 0.5 mm)
- Laser class 2 with visible red light source (655 nm)
- High scanning frequency from 400 Hz to 1200 Hz
- Robust aluminum die cast housing with IP65 rating
- Multiple digital inputs and outputs with LED and acoustic indicators
- Supports up to 50 codes per reading interval and 1500 characters
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for barcode reading
- Logistics and warehouse management
- Manufacturing process control
- Quality assurance and traceability
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces need for frequent replacements
- Energy-efficient operation with low power consumption (4.5 W)
- Complies with RoHS regulations limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK CLV622-3120 Short Range Raster Scanner is available for immediate purchase, ideal for industrial barcode scanning and automation applications.
