Silent+ Mini Orange Condensate Pump | 12L/h Max Flow Rate | 21dB Quiet Operation | IP21 Rated | by Aspen Pumps
The Silent+ Mini Orange Condensate Pump is designed for high wall split systems, offering a maximum flow rate of 12L/h and an ultra-quiet operation at just 21dB. Ideal for HVAC installations, this reliable pump features a self-priming design and includes a submersible secondary reservoir, ensuring efficient condensate removal without disturbing your environment.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Silent+ Mini Orange Condensate Pump | 12L/h Max Flow Rate | 21dB Quiet Operation | IP21 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP3313
Alternatively Known As: Mini Orange Condensate Pump, Silent+ Orange Pump, Aspen Mini Condensate Pump
Technical Specifications
- Max flow rate: 12L/h @ 0 head
- Max recommended head: 10m
- Max suction lift: 1.5m
- Noise level: 21dB(A) @ 1m for Mini Orange, 19dB(A) @ 1m for Silent+ Orange
- Power supply: 230 VAC, 0.11A, 16W, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C / 104°F
- Discharge tube: 6mm ID
- IP Protection: IP21
- Safety switch: 3.0A Normally closed
- Thermal protection included
- Fully potted design
- Self-priming pump
- Dimensions (H x L x W): 80mm x 120mm x 100mm
- Weight: 0.3 kg
Key Features
- Quiet and reliable operation

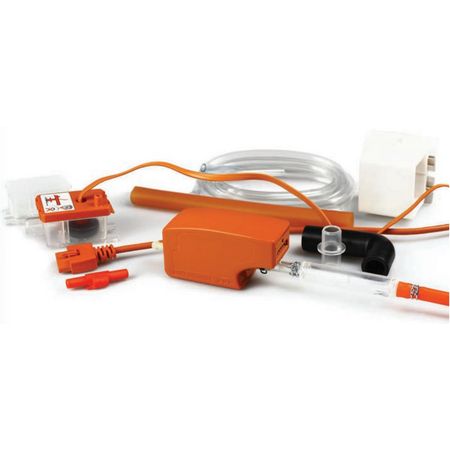

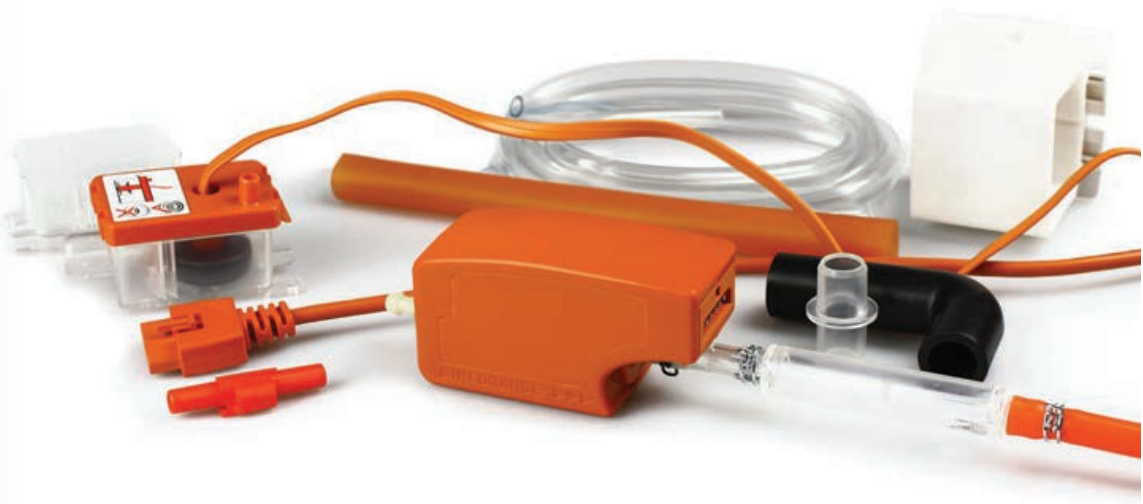

- Submersible secondary reservoir included
- Plug & play design
- Anti-siphon device included
- Silent+ extras to reduce noise and vibration: Acoustic damper, silicon tubing, rubber bracket
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- High wall split systems
- Installation in ceiling space
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption.
- Quiet operation minimizes noise pollution.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen Silent+ Mini Orange Condensate Removal Pump is available now for immediate purchase. Ideal for HVAC systems requiring quiet and reliable condensate removal.
