Simple Thermostat 250V | 0-60°C Range | Bimetal Sensor | DIN Rail by Clipsal
Simple thermostat with 250V input and 0-60°C temperature range—ideal for industrial and commercial HVAC systems. Built for precise temperature control, with bimetal sensor and DIN rail compatibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

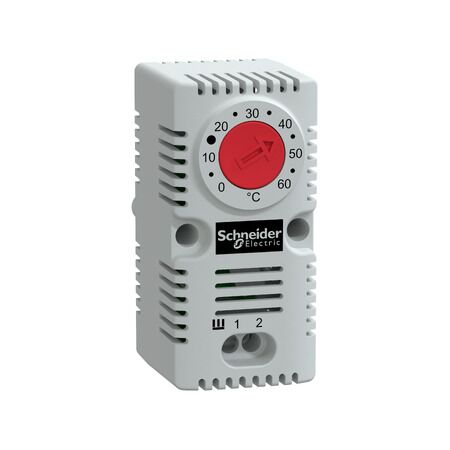

Product Name/Title: ClimaSys, Simple thermostat, 250V, range of temperature 0…60°C - NC - °C
Brand: Clipsal
SKU: NSYCCOTHC
Alternatively Known As: Simple Thermostat, Bimetal Thermostat, HVAC Thermostat
Technical Specifications
- Input Voltage: 250V AC
- Maximum Switching Capacity: 15A (resistive) at 250V AC
- Service Life: 100,000 cycles
- Hysteresis: 7 K +/- 0.4K
- IP Rating: IP20
- Dimensions (H x L x W): 68mm x 44mm x 33mm
- Weight: 0.04 kg
Key Features
- Temperature setting range: 0 to 60 °C
- Bimetal sensor with NC contact type
- Electrical connection via 4 terminals (2.5mm²)
- Mounting mode compatible with 35mm DIN rail
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Temperature control in HVAC systems
- Commercial: Office buildings, warehouses
Standards & Compliance
- Complies with relevant safety and performance standards.
Environmental Benefits
- Self-extinguishing material conforms to UL94 (material V0)
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The ClimaSys Simple Thermostat is available now for immediate purchase. Ideal for industrial and commercial temperature control applications.
