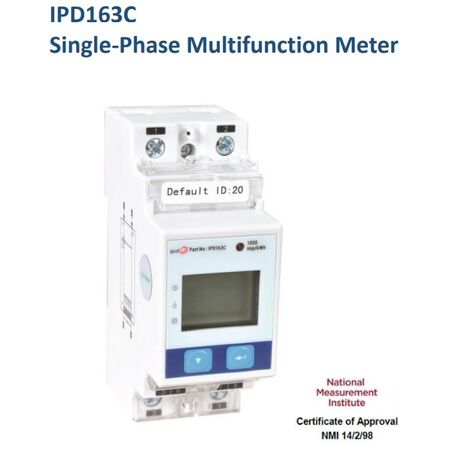

Single-Phase Multifunction Meter 63A | DIN Rail Mount | Modbus RTU

SKU: IPD163C

$369.30 List price: $462.90

+ −

30 Days Return Delivery Options

Single-phase multifunction meter with 63A direct connect and DIN rail mount—ideal for billing and energy management systems. Built for precision, with Modbus RTU protocol and Class 1 kWh accuracy.

Description

Product Name/Title: Single-Phase Multifunction Meter 63A | DIN Rail Mount | Modbus RTU

SKU: IPD163C

Alternatively Known As: Single Phase Energy Meter, DIN Rail Energy Meter, Modbus Energy Meter, 63 Amp Digital Meter, Multifunction Power Meter

Technical Specifications

Voltage: 240VAC
Frequency range: 45Hz-65Hz
Maximum current (Imax): 63A
Accuracy class: Class 1 to IEC 62053-21
Display: 6½ digit multifunction LCD
Communication: RS-485 with Modbus RTU protocol
Starting current: 20mA
Pulse output: kWh LED and solid state energy pulse output at 1000 imp/kWh
Mounting: DIN rail

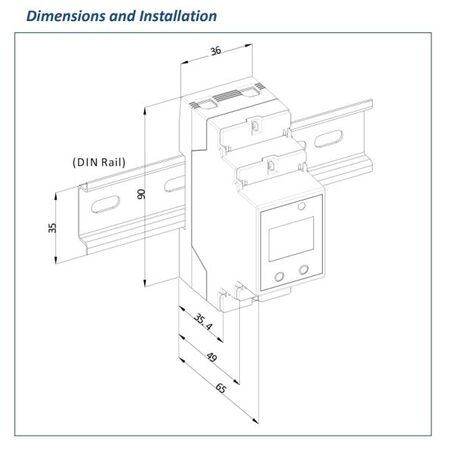

Dimensions (H x L x W): 90mm x 65mm x 72mm
Weight: 0.3 kg

Key Features

Class 1 accuracy to IEC 62053-21
63A direct connect input
Low starting current at 20mA
Multifunction measurements including Voltage, Current, kW, kvar, kVA, PF, and Frequency
6½ digit multifunction LCD display
Self-powered, no external control power required
kWh LED pulse output
Solid state energy pulse output at 1000 imp/kWh
RS-485 port with Modbus RTU protocol
DIN rail mounting

Professional Installation Requirements

Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and correct integration with energy management systems.

Applications

Energy management systems
Billing and trade metering
Industrial and commercial electrical installations
Low voltage energy metering

Standards & Compliance

Complies with AS/NZS 62053-21 for electricity metering accuracy and performance

Environmental Benefits

Enables accurate energy monitoring to optimize power usage and reduce waste
Supports energy management systems to improve overall energy efficiency

Warranty Information

Standard manufacturer warranty applies. Please refer to the product datasheet for detailed warranty terms.

Available Now

The IPD Single-Phase Multifunction Meter 63A is available now for immediate purchase. Ideal for commercial and industrial energy monitoring and billing applications.
