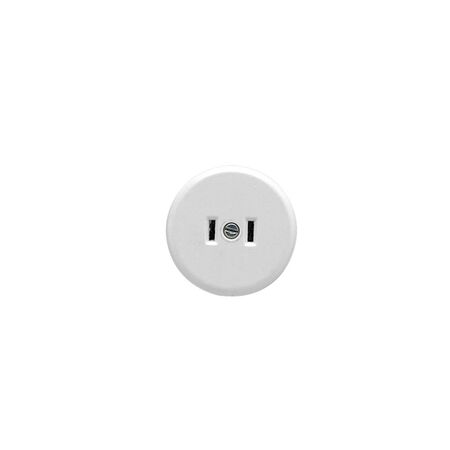

Single Socket Outlet 125VAC 10A | Surface Mount | White
Single socket outlet with 125VAC and 10A capacity—ideal for residential and commercial use. Built for easy installation, with surface mount design and front connection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Single Socket Outlet 125VAC 10A | Surface Mount | White
SKU: 402-WE
Alternatively Known As: Surface Mount Single Power Outlet, 10 Amp Socket, 125 Volt Surface Socket, Clipsal 402-WE Socket Outlet
Technical Specifications
- Nominal Current: 10 A
- Nominal Voltage: 110-125 VAC
- Number of Poles: 1
- Mounting Method: Surface mounted
- Type of Fastening: Mounting with screw
- Size: 45 mm Diameter x 28 mm Depth
- Mounting Centres: 28 mm
- Complete housing cover
- Without imprint
- No lighting included
- Dimensions (H x L x W): 45mm x 28mm x 45mm
- Weight: 0.1 kg
Key Features
- Single outlet with front connection
- 2 parallel flat pins
- 4.8 mm live contact terminal bore to accommodate 3 x 2.5 sq mm cables
- Surface mounted with screw fastening
Professional Installation Requirements
- Professional installation by a licensed electrician is recommended to ensure compliance with Australian electrical safety standards.
Applications
- Residential: Surface mounted power outlet for homes
- Commercial: Suitable for light commercial electrical installations
- General: Surface mounting applications requiring 10A 125VAC socket
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- Surface mount installation reduces wall damage and material use
Warranty Information
Standard manufacturer warranty applies. Please refer to Clipsal warranty terms for details.
Available Now
The Clipsal Single Socket Outlet 125VAC 10A Surface Mount White is available now for immediate purchase. Ideal for residential and commercial surface mount electrical installations.
