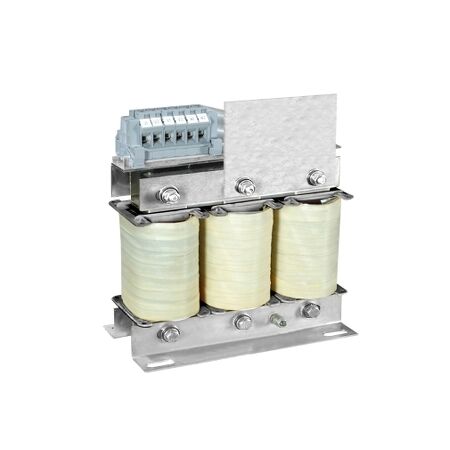

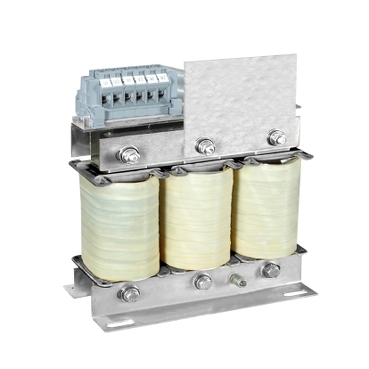

SINUS Filter 200A | IP00 Rated | Reduces Voltage Peaks | Motor Protection | @Pack of 1 | by Clipsal
The SINUS Filter 200A is designed to enhance motor protection in industrial automation systems, featuring an IP00 rating and a robust 200A rated current. Ideal for variable speed drive installations, it reduces voltage peaks and motor insulation stress, improving system reliability and extending motor lifespan. Perfect for HVAC systems, pumps, and conveyor systems, this filter ensures optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SINUS Filter 200A | IP00 Rated | Reduces Voltage Peaks | Motor Protection | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHVW3A5207
Alternatively Known As: Sinusoidal Output Filter, Sine Wave Filter, VSD Output Filter, Motor Protection Filter, Altivar Sinus Filter
Technical Specifications
- Rated current: 200A
- Voltage: 3-phase 380-480V AC
- Frequency: 0-150Hz
- Inductance: 0.22mH
- IP rating: IP00 (open type)
- Compatible with Altivar variable speed drives
- Operating temperature: -10°C to +40°C
- Mounting: Panel mount
- Dimensions (H x L x W): 350mm x 250mm x 400mm
- Weight: 45 kg
Key Features
- Reduces voltage peaks and motor insulation stress
- Designed for use with Altivar variable speed drives
- 200A rated current for high-power applications
- IP00 open type for integration into control panels
- Improves motor lifespan and system reliability
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with industrial control equipment and variable speed drive systems.
Applications
- Industrial automation systems
- Variable speed drive installations
- Motor control centers
- HVAC systems
- Pumps and fans
- Conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces electromagnetic interference (EMI) emissions
- Improves energy efficiency by minimizing motor losses
- Extends motor life, reducing waste and replacement frequency
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal SINUS Filter 200A IP00 (SCHVW3A5207) is available for immediate purchase. Ideal for industrial motor protection and variable speed drive applications.
