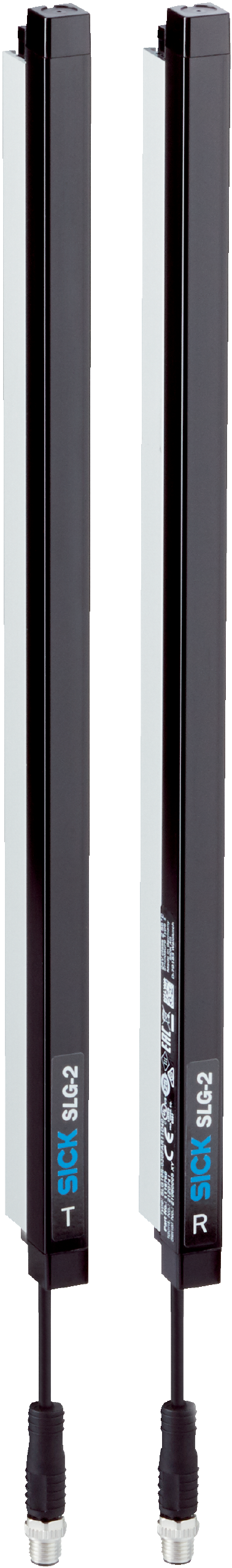

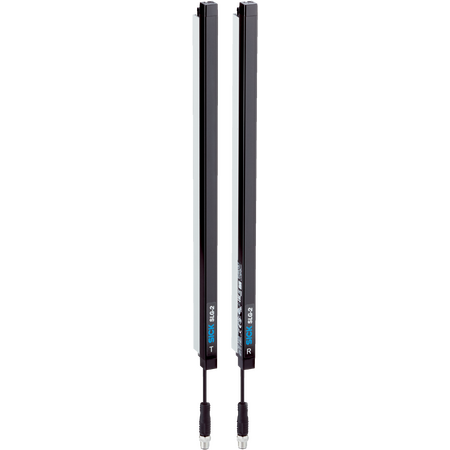

SLG10S-010FER11A00 | Automation light grids
The SICK SLG10S-010FER11A00 Automation Light Grid offers precise object detection with a sensing range up to 2,150 mm, featuring fast response times and robust IP65/IP67 rated housing for industrial automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG10S-010FER11A00 | Automation light grids
Brand: SICK
SKU: 1153845
Alternatively Known As: Safety light curtain, Automation light grid, Industrial light barrier, Object detection sensor
Technical Specifications
- Supply voltage: DC 18 V to 30 V
- Power consumption: Sender ≤ 35.75 mA, Receiver ≤ 45 mA
- Digital output: Push-pull PNP/NPN, max 100 mA
- Detection capability: Minimum detectable object 15 mm (parallel beam), ≥ 9 mm (3x cross beam)
- Response time: Max 2.9 ms (parallel beam), 6.1 ms (cross beam)
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), cycle time 2.3 ms
- Protection class: III
- Enclosure rating: IP65 and IP67
- Operating temperature: -25 °C to +55 °C
- Material: Aluminum housing, plastic components, PMMA front screen
- Cable: 150 mm PVC cable with M8 4-pin connector
- Dimensions (H x L x W): 99mm x 24mm x 12mm
- Weight: 0.66 kg
Key Features
- Includes sender, receiver, Quick Start Guide, and safety notes
- Sensing range from 70 mm to 2,150 mm with parallel and cross beam options
- Detection height of 100 mm with 10 infrared LED beams
- Fast response times with scan time as low as 1 ms
- IO-Link communication interface for sensor configuration and diagnostics
- Robust aluminum and plastic housing with IP65/IP67 protection
- Overvoltage and short-circuit protection for reliable operation
- Photobiological safety certified (IEC EN 62471)
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection and safety monitoring
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK SLG10S-010FER11A00 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
