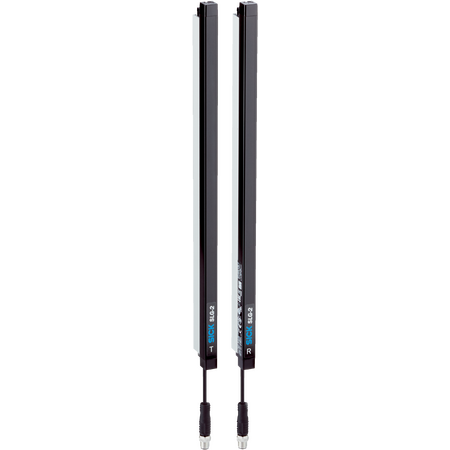

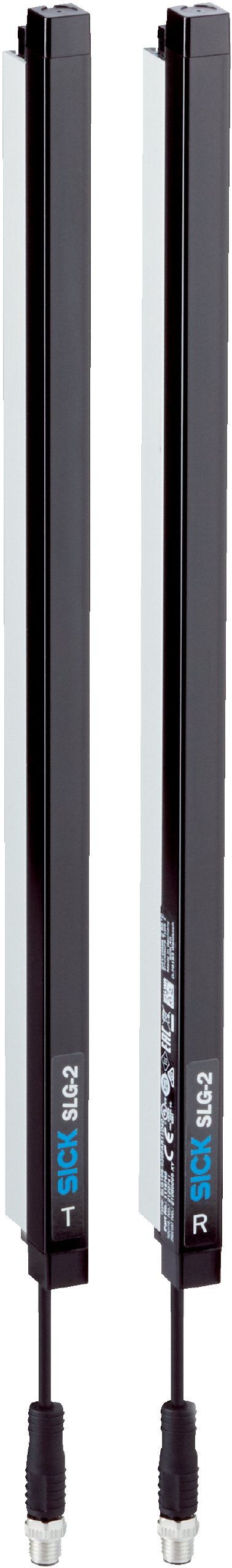

SLG10S-030FBR21A00 | Automation light grids
The SICK SLG10S-030FBR21A00 Automation Light Grid is a high-performance safety sensor featuring 30 infrared LED beams, designed for industrial automation applications requiring precise object detection and reliable machine guarding.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG10S-030FBR21A00 | Automation light grids
Brand: SICK
SKU: 1141095
Alternatively Known As: Safety light curtain, Automation light grid sensor, Industrial light barrier, SICK light grid sensor
Technical Specifications
- Supply voltage: DC 18 V to 30 V
- Power consumption: Sender ≤ 58.5 mA, Receiver ≤ 57 mA
- Digital output: Push-pull PNP/NPN, max output current 100 mA
- Detection height: 300 mm
- Beam separation: 10 mm
- Minimum detectable object: 15 mm² (parallel beam), ≥ 9 mm² (3 cross beams)
- Response time: Max 14 ms (parallel beam), 27.9 ms (cross beam)
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), cycle time 2.3 ms
- Protection class: III
- Enclosure rating: IP65/IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Material: Aluminum and plastic housing, PMMA front screen
- Connection: Cable with M12 male connector, 4-pin, 150 mm length
- Dimensions (H x L x W): 299mm x 24mm x 12mm
- Weight: 0.86 kg
Key Features
- Sender/receiver functional principle with 30 infrared LED beams
- Sensing range from 500 mm to 8,500 mm depending on beam configuration
- Minimum detectable object size as small as 9 mm² with 3 cross beams
- Fast response times with max. response time of 14 ms (parallel beam)
- IO-Link communication interface for sensor parameter configuration
- Robust aluminum and plastic housing with IP65/IP67 protection rating
- Integrated diagnostics with hardware error, temperature warning, and communication state monitoring
- Overvoltage and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems and electrical standards to ensure proper alignment, wiring, and compliance with safety regulations.
Applications
- Industrial automation for object detection and safety monitoring
- Machine guarding and perimeter protection
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with an average service life of 100,000 hours reduces power consumption and waste
- Durable IP65/IP67 rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK SLG10S-030FBR21A00 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable object detection and machine guarding.
