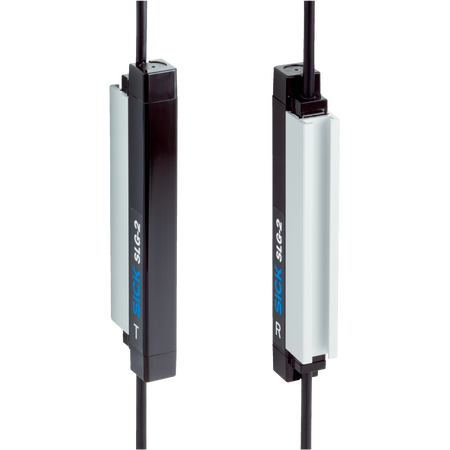

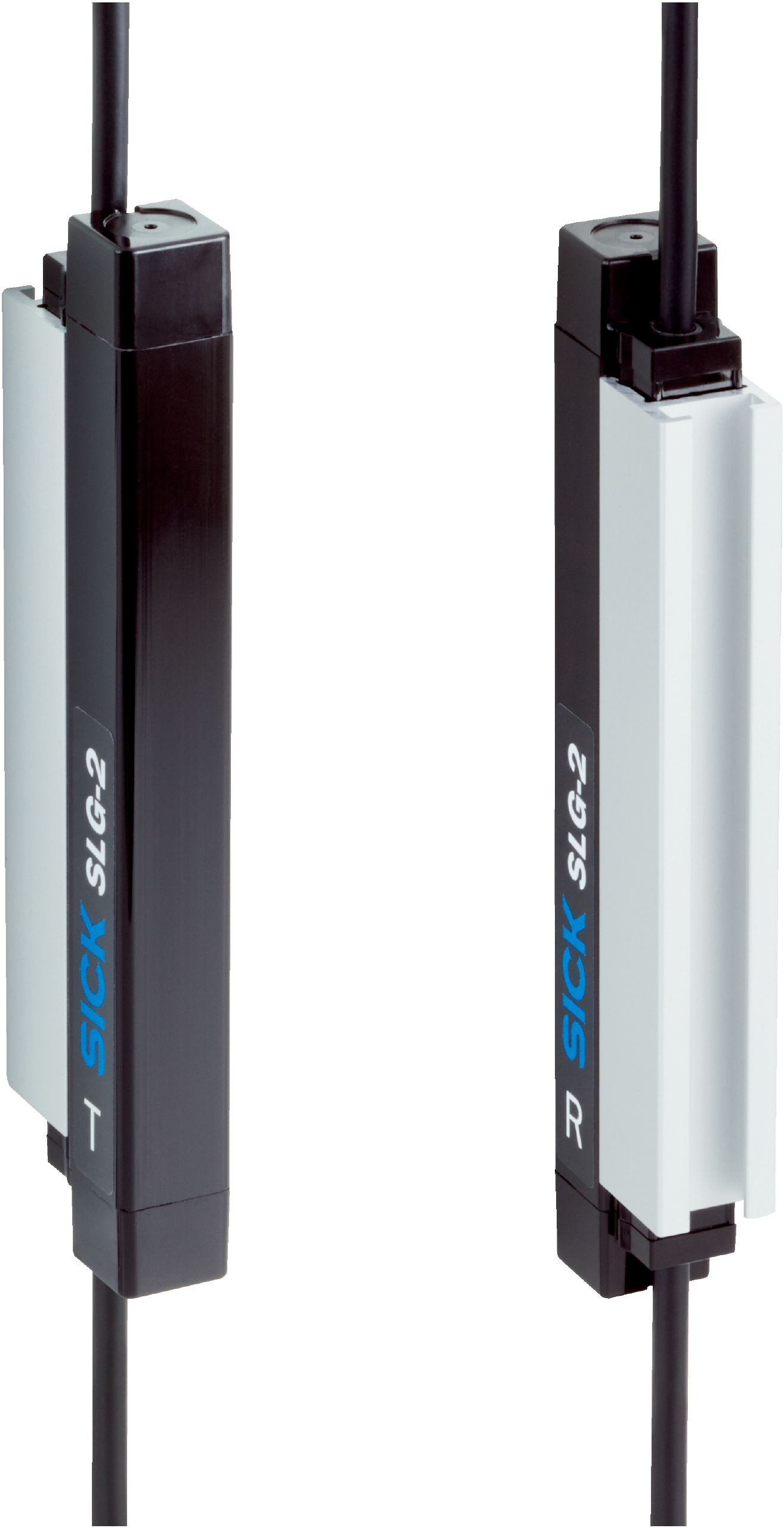

SLG10S-050FBKA1K01 | Automation light grids
The SICK SLG10S-050FBKA1K01 is a robust automation light grid featuring 50 infrared beams for precise object detection and safety applications in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG10S-050FBKA1K01 | Automation light grids
Brand: SICK
SKU: 1107975
Alternatively Known As: Automation light grid, Safety light curtain, Infrared light grid sensor, Object detection light grid
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Sender/receiver light grid system
- Minimum detectable object: 15 mm
- Beam separation: 10 mm
- Number of beams: 50
- Detection height: 500 mm
- Light source: Infrared light
- Wavelength: 850 nm
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male and female connectors, 4-pin, 0.5 m
- Indication: LED
- Synchronization: Via FlexChain (host)
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, interference pulse suppression, overcurrent and short-circuit protected outputs
- Protection class: III
- Front screen material: PMMA
- Maximum range: 9.1 m
- Minimum range: ≥ 0 m
- Operating range: 6.5 m
- Scanning time: 4.1 ms
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm
- EMC: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 499mm x 24mm x 12mm
- Weight: 0.305 kg
Key Features
- Sender/receiver light grid system with 50 beams
- Minimum detectable object size of 15 mm
- Beam separation of 10 mm
- Flat optical light exit
- Infrared light source with 850 nm wavelength
- IP65 and IP67 rated enclosure for harsh environments
- LED indication for status monitoring
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Shock and vibration resistant
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with FlexChain host systems and compliance with safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable IP65/IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SLG10S-050FBKA1K01 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
