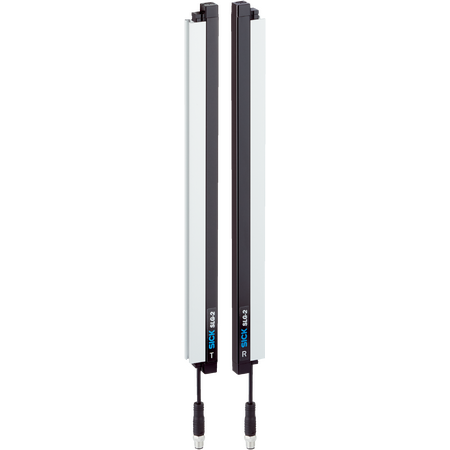

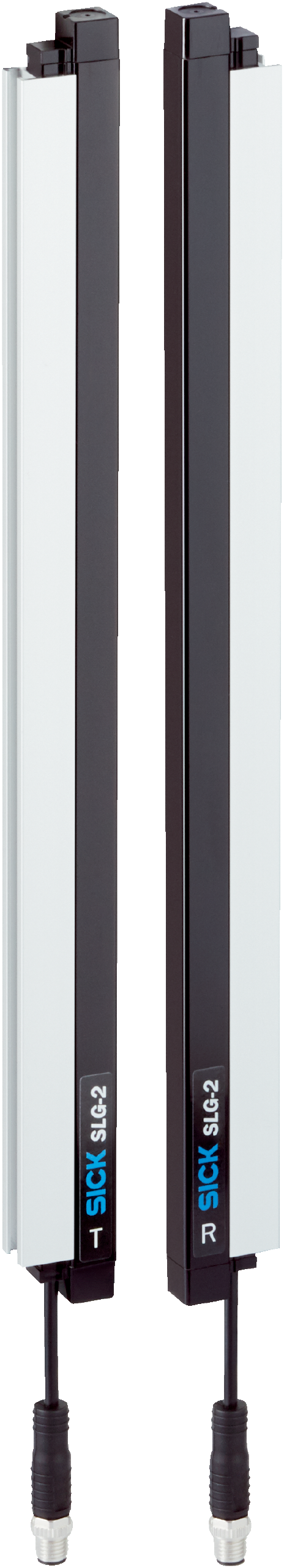

SLG10S-100SER21A00 | Automation light grids
The SICK SLG10S-100SER21A00 Automation Light Grid offers precise and reliable object detection with 100 infrared beams, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG10S-100SER21A00 | Automation light grids
Brand: SICK
SKU: 1141310
Alternatively Known As: Safety Light Grid, Automation Light Curtain, Infrared Light Grid Sensor, SICK Light Barrier
Technical Specifications
- Supply voltage: DC 18 V to 30 V
- Power consumption: Sender ≤ 42.5 mA, Receiver ≤ 99 mA
- Digital output: Push-pull PNP/NPN, max output current 100 mA
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), max cable length 20 m
- Sensing range: 70 mm to 2,150 mm
- Detection height: 1,000 mm
- Number of beams: 100 infrared LED beams at 850 nm wavelength
- Response time: Max 15.1 ms (parallel beam), 28.4 ms (cross beam)
- Enclosure rating: IP65 and IP67
- Operating temperature: -25 °C to +55 °C
- Material: Aluminum housing, plastic components, PMMA front screen
- Connection: Cable with M12 male connector, 4-pin
- Dimensions (H x L x W): 999mm x 24mm x 12mm
- Weight: 1.56 kg
Key Features
- Includes sender, receiver, Quick Start Guide, and safety notes
- Sensing range from 70 mm to 2,150 mm with parallel and cross beam options
- Detection height of 1,000 mm with 100 infrared LED beams
- Minimum detectable object size as small as 9 mm² with 3 cross beams
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust aluminum and plastic housing with PMMA front screen
- High ambient light immunity up to 50,000 lx and IP65/IP67 rated enclosure
- Fast response times with scan times as low as 4.6 ms
- Comprehensive diagnostics including hardware error, temperature warning, and communication state monitoring
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection and safety monitoring
- Manufacturing lines requiring precise sensing and beam interruption detection
- Safety light curtains and protective guarding in automated machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK SLG10S-100SER21A00 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
