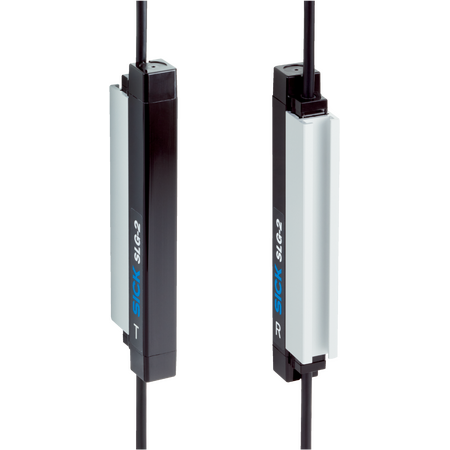

SLG25S-030SAKB1K01 | Automation light grids
The SICK SLG25S-030SAKB1K01 is a high-performance automation light grid featuring a sender/receiver light grid system with 12 beams, ideal for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG25S-030SAKB1K01 | Automation light grids
Brand: SICK
SKU: 1107857
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Industrial Light Grid Sensor, SICK Light Grid SLG25S
Technical Specifications
- Device version: FlexChain Guest
- Minimum detectable object (MDO): 30 mm
- Beam separation: 25 mm
- Number of beams: 12
- Detection height: 300 mm
- Light source: Infrared light
- Wavelength: 850 nm
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male connector, 4-pin; Cable with female connector, M8, 4-pin, 1.5 m
- Indication: LED
- Synchronization: Via FlexChain (host)
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, interference pulse suppression, overcurrent and short-circuit protected
- Protection class: III
- Front screen material: PMMA
- Maximum range: 6 m
- Minimum range: ≥ 0 m
- Operating range: 4 m
- Scanning time: 0.8 ms
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm
- EMC: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: -25°C to +55°C
- Storage temperature: -25°C to +70°C
- Dimensions (H x L x W): 299.2mm x 11.8mm x 24.1mm
- Weight: 0.259 kg
Key Features
- Sender/receiver light grid system with 12 beams
- Minimum detectable object size of 30 mm
- Beam separation of 25 mm with a detection height of 300 mm
- Infrared light source with 850 nm wavelength
- Slim optical light exit design
- IP65 and IP67 rated enclosure for robust protection
- LED indication for operational status
- Circuit protection including reverse polarity, interference pulse suppression, and short-circuit protection
- Shock resistance of 10 g and vibration resistance compliant with IEC standards
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper integration and compliance with safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable IP65/IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG25S-030SAKB1K01 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
