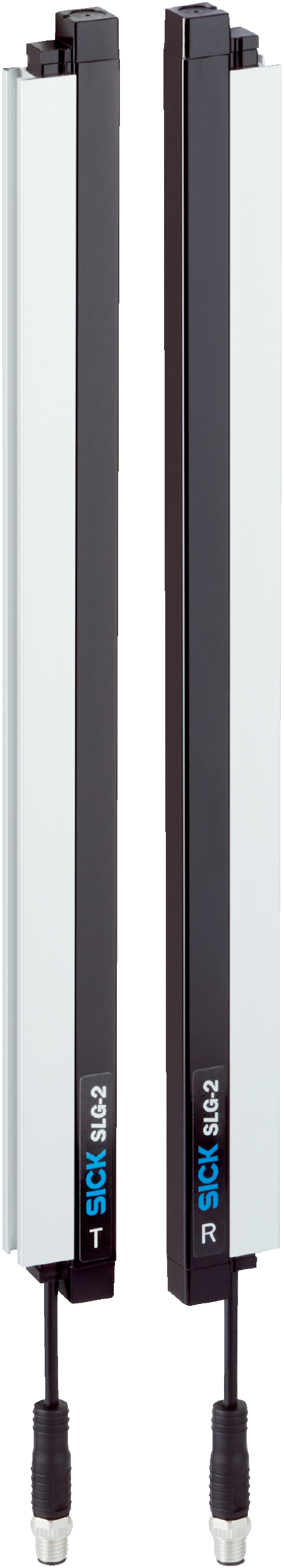

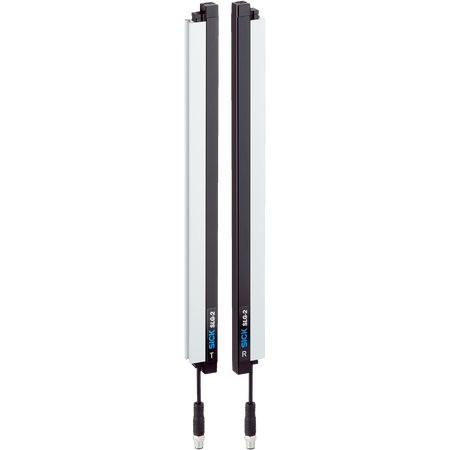

SLG25S-240SBR21A00 | Automation light grids
The SICK SLG25S-240SBR21A00 Automation Light Grid offers reliable and precise object detection with a wide sensing range and advanced IO-Link communication, ideal for industrial safety and automation applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG25S-240SBR21A00 | Automation light grids
Brand: SICK
SKU: 1144985
Alternatively Known As: Safety Light Curtain, Automation Light Grid, Industrial Light Barrier, SICK Light Grid Sensor
Technical Specifications
- Supply voltage: DC 18 V to 30 V
- Power consumption: Sender ≤ 61.8 mA, Receiver ≤ 96.6 mA
- Digital outputs: 1 push-pull PNP/NPN, max 100 mA output current
- Digital input: 1 input, signal voltage HIGH >15 V, LOW <5 V
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), cycle time 2.3 ms, max cable length 20 m
- Light source: Infrared LED, wavelength 850 nm
- Number of beams: 96
- Response times: Max 36.4 ms (parallel beam), 71.4 ms (cross beam)
- Protection class: III
- Enclosure rating: IP65 and IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Material: Aluminum and plastic housing, PMMA front screen
- Connection: Cable with M12 male connector, 4-pin, cable length 150 mm
- Dimensions (H x L x W): 2400mm x 24mm x 12mm
- Weight: 2.96 kg
Key Features
- Includes sender, receiver, Quick Start Guide, and safety notes
- Sensing range from 500 mm to 8,500 mm with parallel and cross beam options
- Detection height of 2,400 mm with 96 infrared LED beams
- Minimum detectable object size: 30 mm (parallel beam), ≥16.5 mm (3x cross beam)
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust aluminum and plastic housing with PMMA front screen
- High ambient light immunity up to 50,000 lx
- IP65 and IP67 rated enclosure for harsh environments
- Fast response times with max 36.4 ms (parallel beam) and 71.4 ms (cross beam)
- Comprehensive diagnostics with hardware error, temperature warning, and communication state monitoring
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, secure mounting, and compliance with safety standards.
Applications
- Industrial automation safety monitoring
- Machine guarding and perimeter protection
- Object detection and presence sensing in manufacturing lines
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours reduces power consumption and waste
- Robust design minimizes replacement frequency and electronic waste
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now
The SICK SLG25S-240SBR21A00 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
