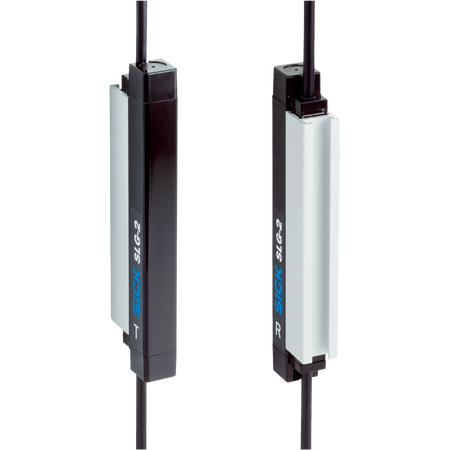

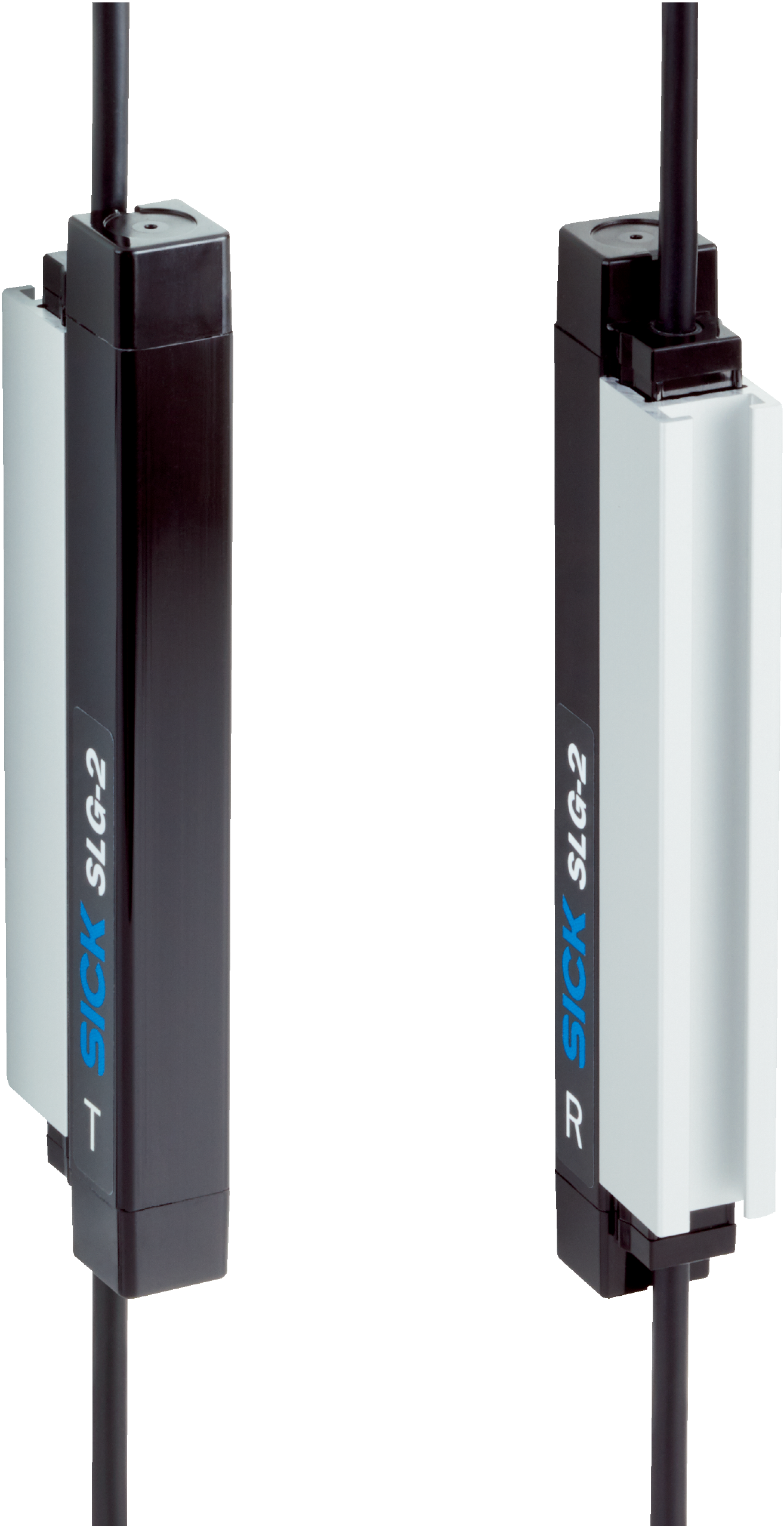

SLG50S-020SAKA1K01 | Automation light grids
The SICK SLG50S-020SAKA1K01 is a high-performance automation light grid featuring a sender/receiver system with 4 beams, designed for precise object detection and industrial safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG50S-020SAKA1K01 | Automation light grids
Brand: SICK
SKU: 1107813
Alternatively Known As: Automation light grid, Safety light curtain, Light barrier sensor, Industrial light grid sensor
Technical Specifications
- Device version: FlexChain Guest
- Minimum detectable object: 55 mm
- Beam separation: 50 mm
- Number of beams: 4
- Detection height: 200 mm
- Light source: Infrared light, 850 nm wavelength
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male and female connectors, 4-pin, 0.5 m
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, interference pulse suppression, overcurrent and short-circuit protected
- Protection class: III
- Front screen material: PMMA
- Maximum range: 6 m
- Operating range: 4 m
- Scanning time: 0.4 ms
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm
- EMC compliance: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Dimensions (H x L x W): 199.2mm x 11.8mm x 24.1mm
- Weight: 0.146 kg
Key Features
- Sender/receiver light grid system with 4 beams
- Minimum detectable object size of 55 mm
- Beam separation of 50 mm and detection height of 200 mm
- Infrared light source with 850 nm wavelength
- High protection rating IP65 and IP67
- LED indication for status monitoring
- Robust against shock (10 g) and vibration (10-150 Hz)
- Short scanning time of 0.4 ms for fast response
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with FlexChain host systems and compliance with safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK SLG50S-020SAKA1K01 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
