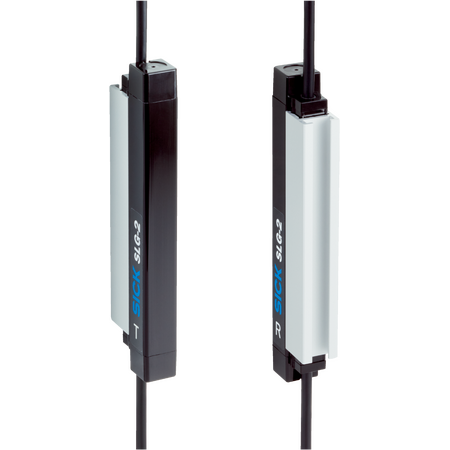

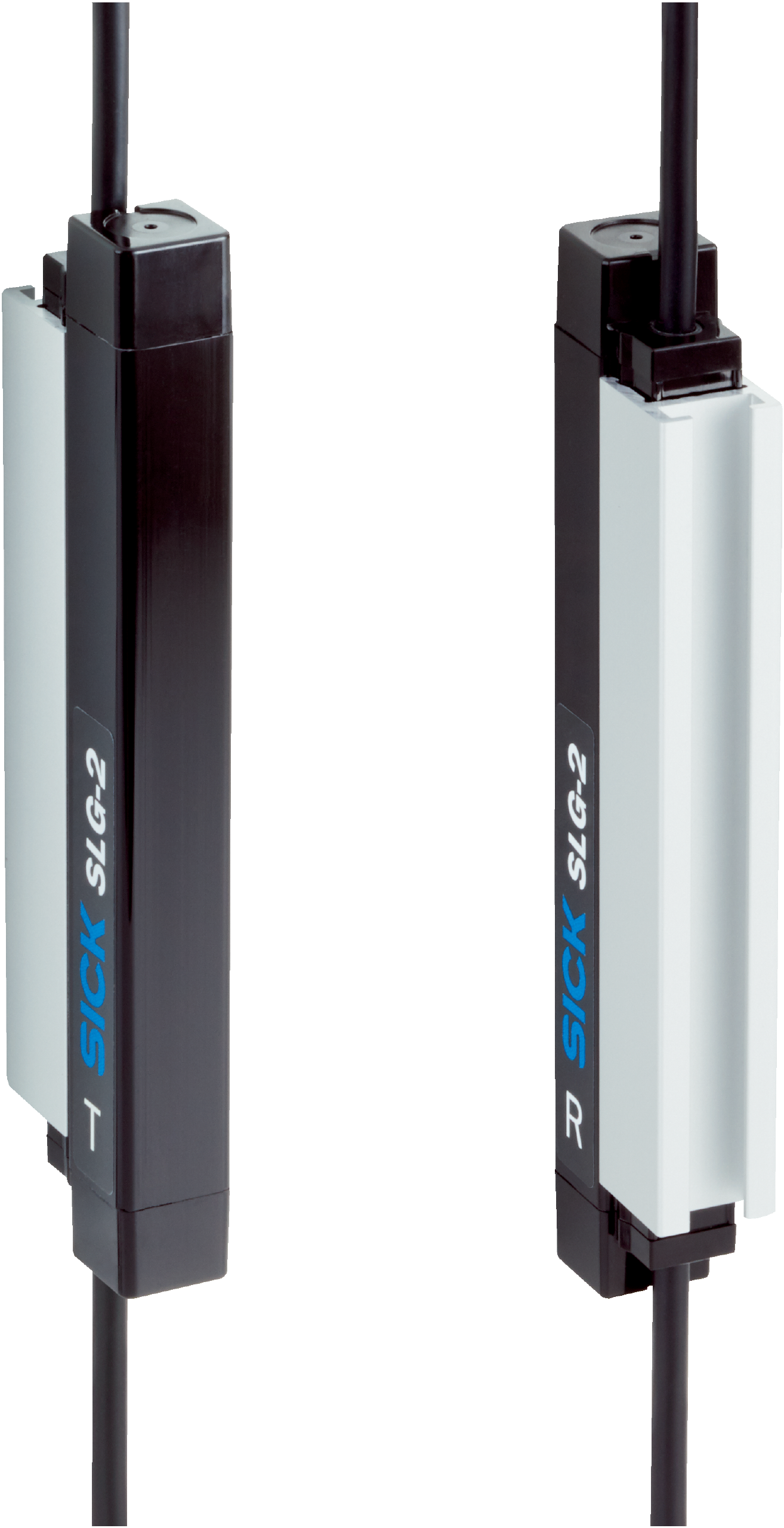

SLG50S-040SAKA1K01 | Automation light grids
The SICK SLG50S-040SAKA1K01 is a high-performance automation light grid featuring 8 infrared beams, slim design, and robust IP65/IP67 protection, ideal for industrial safety and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG50S-040SAKA1K01 | Automation light grids
Brand: SICK
SKU: 1107815
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Infrared Light Grid Sensor, Object Detection Light Grid
Technical Specifications
- Device version: FlexChain Guest
- Sensor principle: Sender/receiver light grid system
- Minimum detectable object (MDO): 55 mm
- Beam separation: 50 mm
- Number of beams: 8
- Detection height: 400 mm
- Light source: Infrared light
- Wavelength: 850 nm
- Supply voltage: Via FlexChain (host)
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: 1 s
- Connection type: Cable with M8 male and female connectors, 4-pin, 0.5 m
- Indication: LED
- Synchronization: Via FlexChain (host)
- Enclosure rating: IP65, IP67
- Circuit protection: UV connections, reverse polarity protected, interference pulse suppression, outputs overcurrent and short-circuit protected
- Protection class: III
- Front screen material: PMMA
- Maximum range: 6 m
- Minimum range: ≥ 0 m
- Operating range: 4 m
- Scanning time: 0.6 ms
- Shock resistance: 10 g, 16 ms
- Vibration resistance: 10-150 Hz, 0.5 mm
- EMC: EN 61000-6-2, EN 61000-6-4
- Ambient light immunity: Indirect 50,000 lx
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –25 °C to +70 °C
- Dimensions (H x L x W): 399.2mm x 11.8mm x 24.1mm
- Weight: 0.252 kg
Key Features
- Sender/receiver light grid system with 8 beams
- Minimum detectable object size of 55 mm
- Slim optical light exit design
- Infrared light source with 850 nm wavelength
- High protection rating IP65 and IP67
- Fast scanning time of 0.6 ms
- Robust against shock and vibration
- LED indication for status monitoring
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper integration with FlexChain host systems and compliance with safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient infrared light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK SLG50S-040SAKA1K01 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
