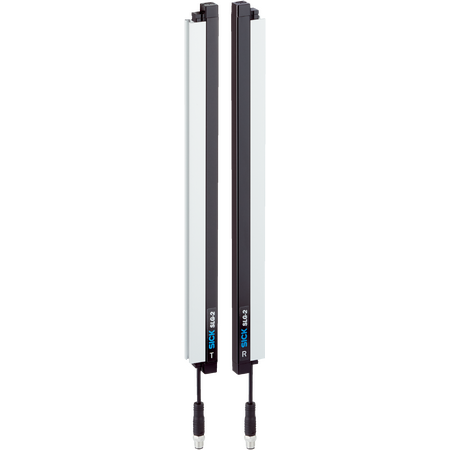

SLG50S-050SAR11A00 | Automation light grids
The SICK SLG50S-050SAR11A00 Automation Light Grid offers precise object detection with a sensing range up to 4.9 meters, featuring 10 infrared LED beams and robust IP65/IP67 rated housing for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG50S-050SAR11A00 | Automation light grids
Brand: SICK
SKU: 1120108
Alternatively Known As: Safety light grid, Automation light curtain, Infrared light grid sensor, Industrial light barrier
Technical Specifications
- Supply voltage: DC 18 V to 30 V
- Power consumption: Sender ≤ 35.75 mA, Receiver ≤ 45 mA
- Digital output: Push-pull PNP/NPN, max 100 mA output current
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), max cable length 20 m
- Beam type: Infrared LED, 10 beams, wavelength 850 nm
- Response times: Initialization 0.4-2 s, Teach-in 0.75-50 s, Scan time 1-2 ms
- Protection class: III, IP65/IP67 rated enclosure
- Operating temperature: -25 °C to +55 °C
- Material: Aluminum and plastic housing, PMMA front screen
- Connection: Cable with M8 male connector, 4-pin, 150 mm length
- Dimensions (H x L x W): 499mm x 24mm x 12mm
- Weight: 1.06 kg
Key Features
- Includes sender, receiver, Quick Start Guide, and safety notes
- Sensing range from 440 mm to 4,900 mm with parallel and cross beam options
- Detection height of 500 mm with 10 infrared LED beams
- Minimum detectable object size: 55 mm² (parallel beam), ≥29 mm² (3x cross beam)
- Fast response times with scan time as low as 1 ms and max response time 2.9 ms (parallel beam)
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust aluminum and plastic housing with PMMA front screen
- IP65 and IP67 rated enclosure for harsh environments
- Wide operating temperature range from -25 °C to +55 °C
- Overvoltage and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection and safety monitoring
- Manufacturing lines requiring precise sensing and beam interruption detection
- Safety light curtain applications in automated machinery
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- Complies with environmental regulations including China RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK SLG50S-050SAR11A00 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
