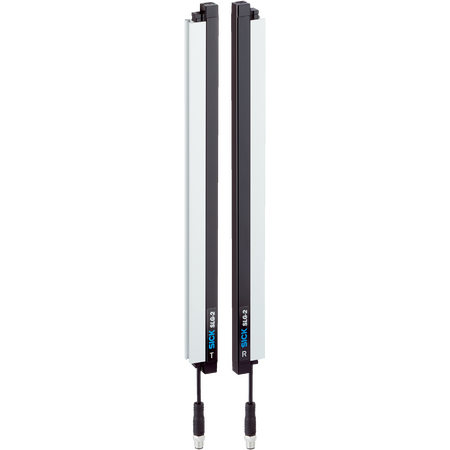

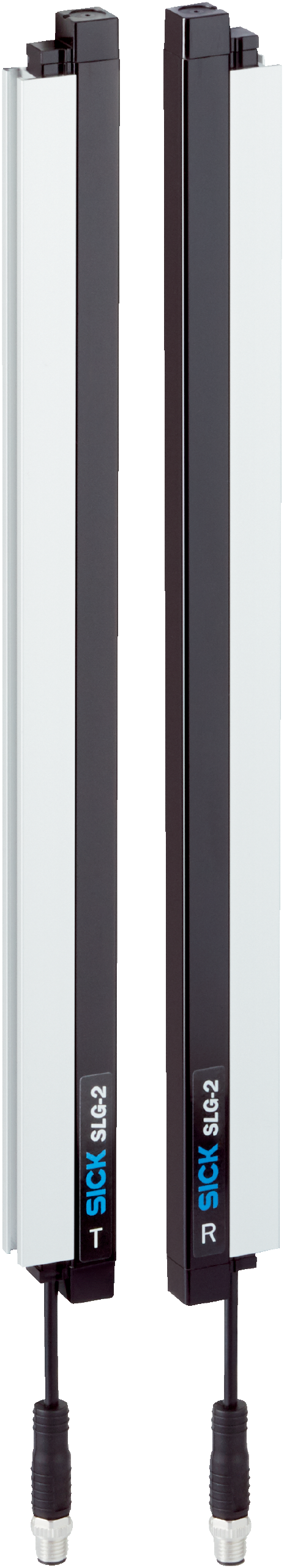

SLG50S-080SCR11A00 | Automation light grids
The SICK SLG50S-080SCR11A00 Automation Light Grid offers reliable and precise object detection with a sensing range up to 2.4 meters, featuring 16 infrared LED beams and advanced IO-Link communication for industrial automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG50S-080SCR11A00 | Automation light grids
Brand: SICK
SKU: 1124876
Alternatively Known As: Safety light curtain, Automation light grid, Industrial light barrier, Optical safety sensor
Technical Specifications
- Supply voltage: DC 18 V to 30 V
- Power consumption: Sender ≤ 36.2 mA, Receiver ≤ 48.6 mA
- Digital output: Push-pull PNP/NPN, max 100 mA
- IO-Link V1.1 with COM3 data rate (230.4 kBaud), cycle time 2.3 ms
- Detection height: 800 mm, beam separation: 50 mm
- LED wavelength: 850 nm, LED risk group: Free group
- Enclosure rating: IP65 and IP67
- Operating temperature: -25 °C to +55 °C
- Shock resistance: 10 g, 16 ms; Vibration resistance: 10-150 Hz, 0.5 mm
- Connection: Cable with M8 male connector, 4-pin, 150 mm length
- Dimensions (H x L x W): 799mm x 24mm x 12mm
- Weight: 1.36 kg
Key Features
- Includes sender, receiver, Quick Start Guide, and safety notes
- Sensing range from 440 mm to 2,400 mm with parallel and cross beam options
- Detection height of 800 mm with 16 infrared LED beams
- Minimum detectable object size: 55 mm (parallel beam), ≥29 mm (3x cross beam)
- Fast response times with scan time as low as 1.2 ms
- IO-Link communication interface for sensor configuration and Smart Task functions
- Robust aluminum and plastic housing with PMMA front screen
- High ambient light immunity and IP65/IP67 enclosure rating
- Overvoltage and short-circuit protection with reverse polarity protection
- Diagnostic functions including hardware error, temperature warning, and alarm output
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper configuration using IO-Link.
Applications
- Industrial automation for object detection and safety monitoring
- Machine guarding and perimeter protection
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK SLG50S-080SCR11A00 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
