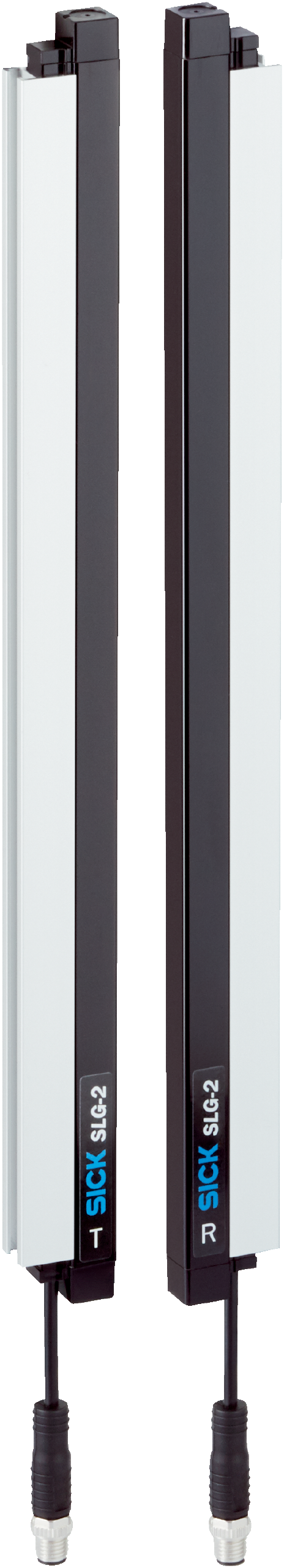

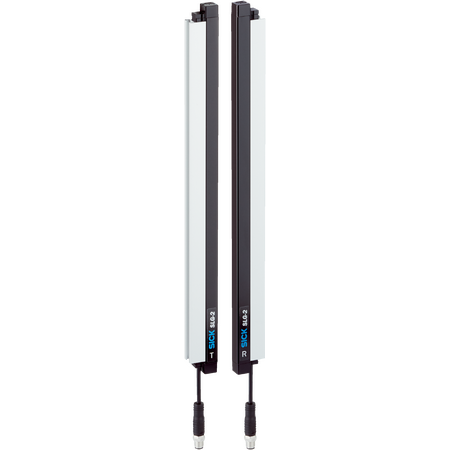

SLG50S-120SAR21A00 | Automation light grids
The SICK SLG50S-120SAR21A00 Automation Light Grid offers reliable and precise object detection and safety monitoring with a sensing range up to 4.9 meters, featuring 24 infrared LED beams and advanced IO-Link communication.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SLG50S-120SAR21A00 | Automation light grids
Brand: SICK
SKU: 1120142
Alternatively Known As: Safety light curtain, Automation light grid, Industrial light barrier, Machine safety sensor
Technical Specifications
- Supply voltage: DC 18 V to 30 V
- Power consumption: Sender ≤ 36.8 mA, Receiver ≤ 53.4 mA
- Output type: Push-pull PNP/NPN digital output, max 100 mA
- Protection class: III
- Enclosure rating: IP65 and IP67
- Operating temperature: -25°C to +55°C
- Cable: PVC, 150 mm length, 4-pin M12 male connector
- Light source: Infrared LED, wavelength 850 nm
- Number of beams: 24
- Response time: Max 4.6 ms (parallel beam), 9.2 ms (cross beam)
- Communication: IO-Link V1.1, COM3 (230.4 kBaud), max cable length 20 m
- Diagnostic features: Hardware error, temperature warning, communication errors, alarm output
- Dimensions (H x L x W): 1200mm x 24mm x 12mm
- Weight: 1.76 kg
Key Features
- Includes sender, receiver, Quick Start Guide, and safety notes
- Sensing range from 440 mm to 4,900 mm
- Detection height of 1,200 mm with 24 infrared LED beams
- Minimum detectable object size: 55 mm² (parallel beam), ≥29 mm² (3x cross beam)
- IO-Link interface for sensor parameter configuration and Smart Task functions
- Robust aluminum and plastic housing with PMMA front screen
- High protection rating of IP65 and IP67
- Operating temperature range from -25°C to +55°C
- Fast response times with max. response time of 4.6 ms (parallel beam) and 9.2 ms (cross beam)
- Diagnostic functions including hardware error, temperature warning, and communication state monitoring
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure compliance with safety standards and proper configuration using IO-Link.
Applications
- Industrial automation safety monitoring
- Machine safeguarding
- Access control and perimeter protection
- Object detection in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable construction reduces waste and replacement frequency
- Complies with environmental regulations including China RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK SLG50S-120SAR21A00 Automation Light Grid is available for immediate purchase, ideal for industrial safety and automation applications.
