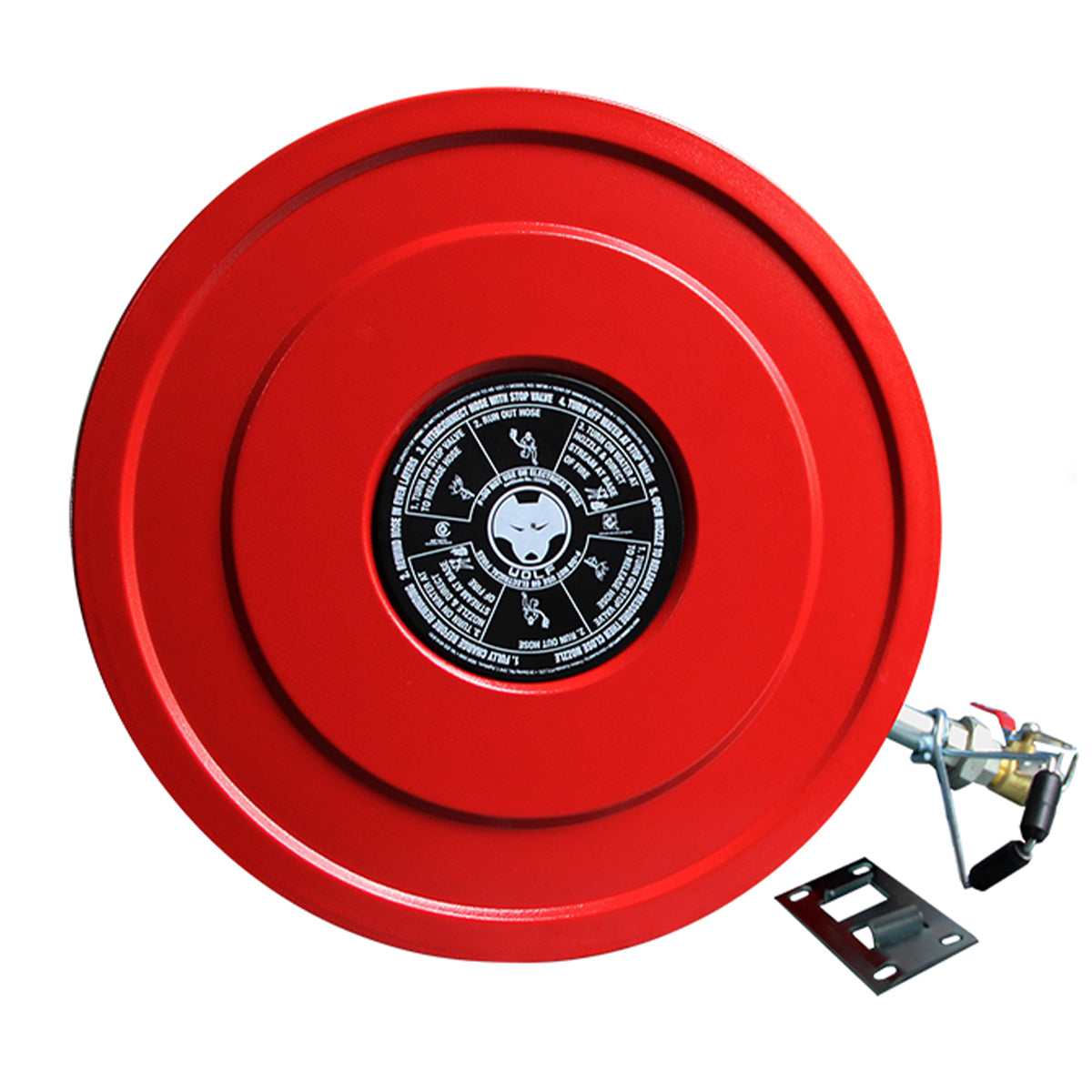

Slimline Quick Fit Hose Reel 36m x 19mm | Metal Red Powder Coated | Stainless Steel Waterway by Firebox

BRAND: Firebox
SKU: WR36
$268.00 List price: $324.30
Free pick up (over 25 kg)
For delivery quote message
Ensure fire safety with this 36m x 19mm slimline quick fit hose reel, featuring a durable metal red powder-coated drum and stainless steel waterway construction. Ideal for commercial, industrial, and residential applications, it offers reliable performance under a maximum working pressure of 1.4 MPa.

Product Name/Title: Slimline Quick Fit Hose Reel 36m x 19mm | Metal Red Powder Coated | Stainless Steel Waterway by Firebox

Brand: Firebox

SKU: WR36

Alternatively Known As: Fire Hose Reel 36m, Slimline Fire Hose Reel, Quick Fit Hose Reel 19mm

Technical Specifications
  • Hose Length & Diameter: 36 Metres & 19mm Diameter
  • Drum Material: Metal red powder coated
  • Waterway Construction: Stainless Steel
  • Inlet Pipe/Union Construction: PVC
  • Maximum Working Pressure: 1.4 MPa
  • Hydraulic Test Pressure: 2.0 MPa
  • Mounting Plate Construction: 1mm Steel
  • Mounting Plate Finish: Powder-Coated Red
  • Nozzle Construction: Brass
  • Gooseneck Construction: Brass
  • Plate Diameter: 550mm
  • Back Plate to Wall Distance: 235mm
  • Dimensions (H x L x W): 235mm x 615mm x 550mm
  • Weight: 26 kg
Key Features
  • Slimline quick fit wall mounted design
  • Metal red powder coated drum for durability
  • Stainless steel waterway construction
  • PVC inlet pipe/union construction
  • Maximum working pressure of 1.4 MPa
  • Hydraulic test pressure of 2.0 MPa
  • Mounting plate made of 1mm steel with powder-coated red finish
  • Brass nozzle and gooseneck construction
Professional Installation Requirements
  • Professional installation by certified fire safety technicians is recommended to ensure compliance with safety standards and optimal performance.
Applications
  • Fire safety in commercial and industrial buildings
  • Emergency fire response in warehouses and factories
  • Fire protection in residential complexes
Standards & Compliance
  • Complies with AS/NZS 1221 – Fire Hose Reels
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
  • Powder-coated finish extends product life, reducing environmental impact.
Warranty Information

12 months warranty.

Available Now

The Firebox 36m x 19mm Slimline Quick Fit Hose Reel is available now for immediate purchase. Ideal for fire safety applications in commercial, industrial, and residential buildings.
