Smart MCCB 400 Frame 50kA 3P 250A | Electronic Release | Energy Metering by NHP
Smart MCCB with 250A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for enhanced protection, with electronic release and integrated energy metering.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

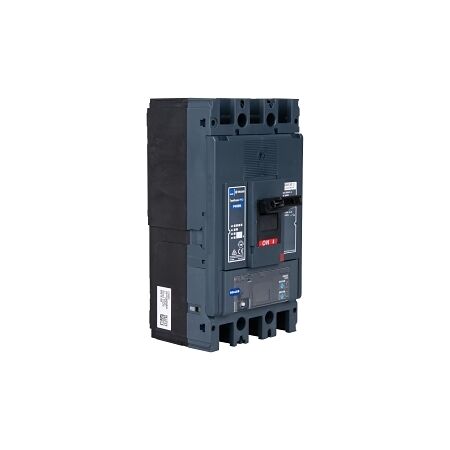

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 50kA 3P 250A Smart Electronic
Brand: NHP
SKU: P400N3250SE
Alternatively Known As: MCCB, Circuit Breaker, Smart Circuit Breaker
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Short Circuit Breaking Capacity: 50 kA
- Integrated Earth Fault Protection: Yes
- Rated Insulation Voltage: 800 V
- Type of Electrical Connection: Bolt connection
- Communications Protocol: Modbus TCP via option module
- Mechanical Life: 15000 cycles
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release with LSIG trip curve for enhanced protection.
- Integrated energy metering and communication functions.
- Zone selective interlocking for improved safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for circuit breakers.
Environmental Benefits
- Energy-efficient design reduces power loss and enhances operational efficiency.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 50kA 3P 250A Smart Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
Non-Returnable & Non-Cancellable
