Smart Power Supply Module & Bus Extender | Monitored Outputs | DIN-Rail Mountable | by Dicker Data
Smart Power Supply Module & Bus Extender with monitored bus power output and xGen RS-485 isolator—ideal for security alarm systems. Built for both commercial and residential installations, it features two monitored auxiliary power outputs and programmable relay outputs for enhanced functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

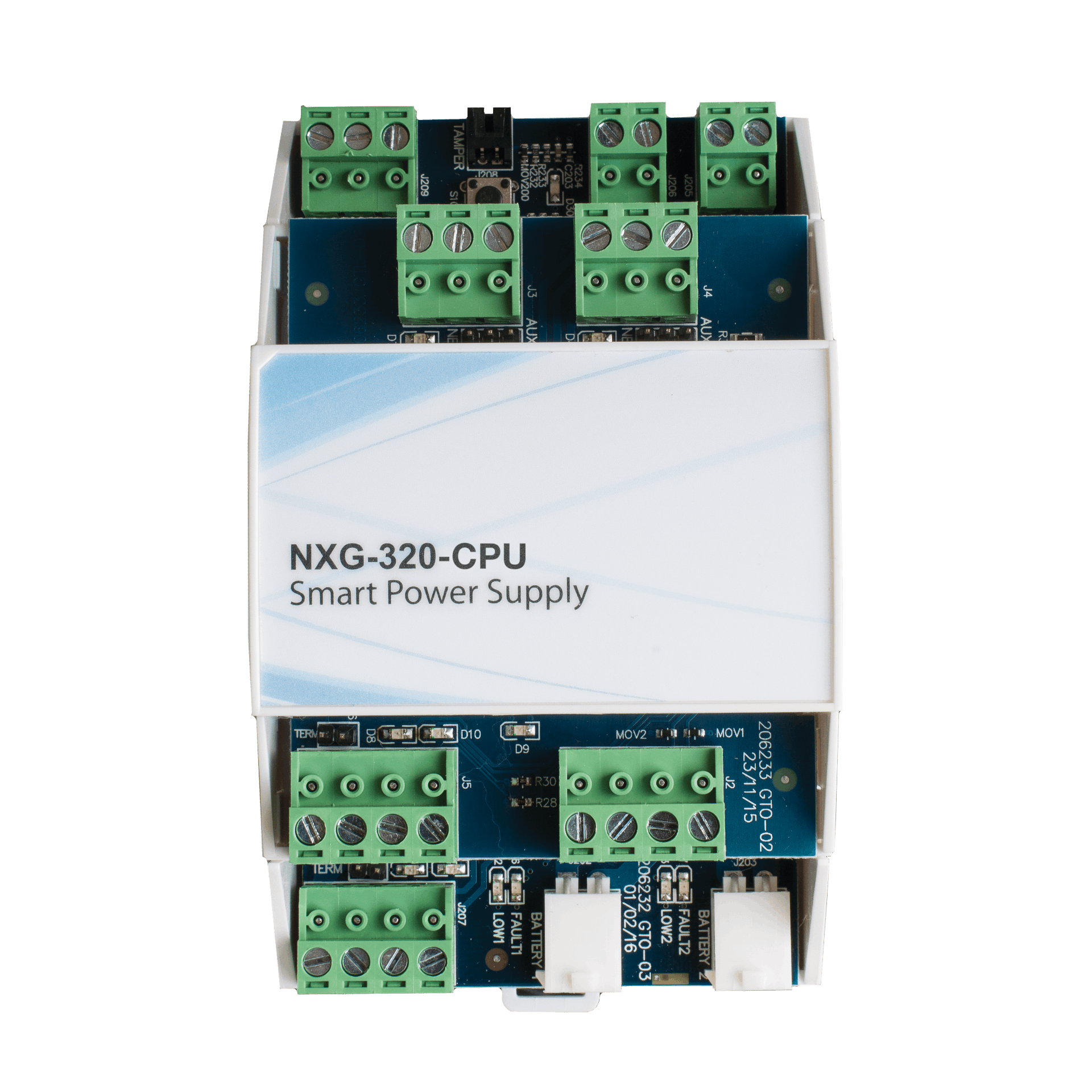

Product Name/Title: Smart Power Supply Module & Bus Extender | Monitored Outputs | DIN-Rail Mountable | by Dicker Data
Brand: Dicker Data
SKU: NXG-320-CPU
Alternatively Known As: Smart Power Supply Module, Bus Extender, xGen Power Supply, Alarm Power Module
Technical Specifications
- Monitored bus power output
- xGen RS-485 isolator
- 2 monitored auxiliary power outputs
- 2 programmable SPDT relay outputs
- Supervised battery connection
- Separate box tamper input
- DIN-rail mountable
- Removable terminals
- Status LEDs on-board
- Firmware upgrade via USBUP-EUR or DLX900 over network
- Compliance: EN50131-1/EN50131-3/EN50131-6 Grade 2 Class II
- INCERT T031 certified
- Dimensions (H x L x W): 90mm x 60mm x 120mm
- Weight: 1.2 kg
Key Features
- Monitored bus power output
- xGen RS-485 isolator
- Two monitored auxiliary power outputs
- Two programmable SPDT relay outputs
- Supervised battery connection
- Separate box tamper input
- DIN-rail mountable with removable terminals
- Multiple status LEDs on-board
- Firmware upgradeable via USBUP-EUR or DLX900 over network
- Complies with EN50131-1/EN50131-3/EN50131-6 Grade 2 Class II
- INCERT T031 certified
Professional Installation Requirements
- Installation should be performed by a qualified security system technician or electrician familiar with alarm system power supplies and DIN-rail mounting.
Applications
- Security alarm systems requiring monitored power supply and bus extension
- Commercial and residential alarm installations
- Systems needing DIN-rail mountable power supply modules with relay outputs
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Efficient power management reduces energy consumption in alarm systems
- Supervised battery connection ensures longer battery life and reliability
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The RELIANCE SMART POWER SUPPLY MODULE & BUS EXTENDER is available for immediate purchase, ideal for enhancing security alarm system power management and bus extension.
