Smart Switching Module 16A MajorTech
MajorTech smart switch features a 16A switching module with app control. Ideal for smart home switching and load automation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: MTS16 Smart Switch Module, Major Tech Smart Wi-Fi Switch Module, 16A Smart Switching Module
Technical Specifications

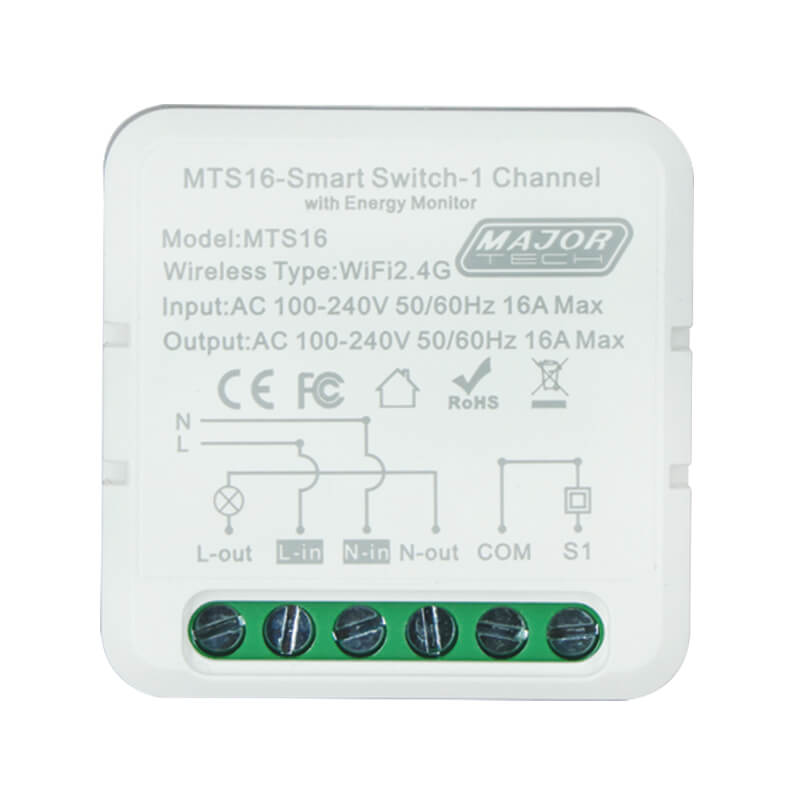

- Model: MTS16
- Rated Current: 16A maximum
- Rated Load: 3100W resistive
- Rated Voltage: 110–240V AC
- Voltage Range: 100–240V AC
- Rated Frequency: 50/60Hz
- Wireless Connectivity: Wi-Fi 802.11b/g/n, 2.4GHz
- Bluetooth: Version 5.1, GFSK Bluetooth Low Energy
- Operating Temperature: -25°C to +55°C
- Humidity: Below 75% relative humidity
- App: Major Tech Hub
- Approvals: IEC, SANS, ICASA, LOA and CE
- Dimensions (H x L x W): 42mm x 42mm x 22mm
- Weight: 0.1 kg
Key Features
- Adds smart control to compatible one-way and two-way switches or sockets
- Remote switching through the Major Tech Hub app
- Real-time and historical energy consumption monitoring
- Countdown, schedule, cycle, random and inching timer functions
- Compatible with Amazon Alexa and Google Assistant
- Compact design for installation behind switches, sockets or inside junction boxes
- Overcharge protection switches the module off when power draw remains below 3W for 40 minutes
- Child lock helps prevent accidental manual operation
- Dual-mode Wi-Fi and Bluetooth connectivity
Professional Installation Requirements
- Mains electrical installation must be completed by a suitably qualified and licensed electrician in accordance with Australian wiring regulations and AS/NZS 3000. Install only in a suitable enclosure or junction box and within the specified environmental conditions.
Applications
- Smart home lighting control
- Automated switching of appliances and electrical loads
- Remote control of indoor and outdoor lights
- Fan and small appliance automation
- Energy monitoring and load management
- Residential, commercial and light industrial electrical control installations
Standards & Compliance
- Installation to comply with AS/NZS 3000:2018 Wiring Rules and applicable Australian electrical safety requirements
Environmental Benefits
- Energy monitoring helps identify unnecessary electricity consumption
- Scheduling and automated switching can reduce equipment runtime and standby energy use
- Compact design may extend the service life of existing switches and electrical infrastructure by enabling smart control without complete replacement
Warranty Information
Major Tech smart products are covered by a 2-year warranty, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through Major Tech and authorised Australian electrical distributors.
