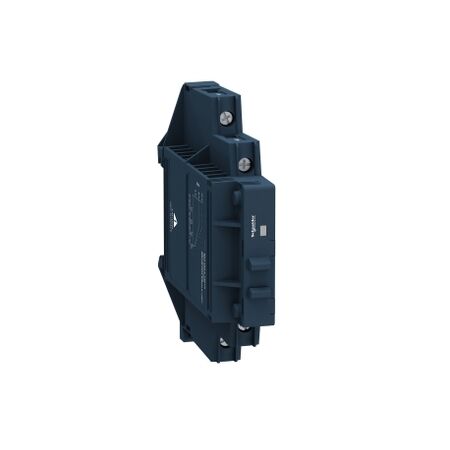

Solid State Modular Relay 12A | DIN Rail Mount | Random Switching by Clipsal
Solid state modular relay with 12A capacity and random switching—ideal for industrial automation and control. Built for versatile applications, with wide input voltage range and easy DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount,random switching, input 4…32V DC, output 48…600V AC
Brand: Clipsal
SKU: SSM1A312BDR
Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay
Technical Specifications
- Rated current: 12A
- Control circuit voltage: 4...32V DC
- Output voltage: 48...600V AC
- Insulation resistance: 1000 MOhm at 500V DC
- Surge current: 715A for 16.6ms
- Response time: 0.5 cycle (turn-off), 0.1ms (turn-on)
- Dielectric strength: 4kV AC for input/output
- Flame retardance: V0 conforming to UL 94
- Dimensions (H x L x W): 90mm x 83mm x 18mm
- Weight: 0.1 kg
Key Features
- Modular DIN rail relay design for easy installation.
- Random voltage switching capability for versatile applications.
- Wide input voltage range of 4...32V DC and output voltage of 48...600V AC.
- LED indicator for input status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of AC loads
Standards & Compliance
- Complies with IEC 62314, IEC 60950-1, and IEC 61000 standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial automation and control applications.
