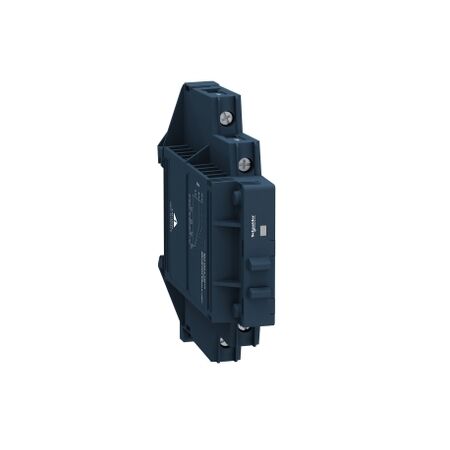

Solid State Relay 12A | DIN Rail Mount | Zero Voltage Switching by Clipsal
Solid state relay with 12A current and zero voltage switching—ideal for industrial automation and commercial HVAC systems. Built for reliable operation, with easy DIN rail mounting and LED input status indicator.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Solid State Relays, Solid state modular relay, 12A, DIN rail mount, zero voltage switching, input 4…32V DC, output 48…600V AC
Brand: Clipsal
SKU: SSM1A312BD
Alternatively Known As: Solid State Relay, Modular Relay, DIN Rail Relay
Technical Specifications
- Rated current: 12A
- Input voltage: 4...32V DC
- Output voltage: 48...600V AC
- Insulation resistance: 1000 MOhm at 500 V DC
- Control type: without test button
- Surge current: 715A for 16.6 ms
- Response time: 0.5 cycle (turn-on and turn-off)
- Overvoltage category: III
- Flame retardance: V0 conforming to UL 94
- Dimensions (H x L x W): 90.3mm x 83.7mm x 18mm
- Weight: 0.09 kg
Key Features
- Zero voltage switching for reliable operation.
- DIN rail mount for easy installation.
- LED indicator for input status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with IEC 60950-1, IEC 61000, IEC 62314.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Solid State Relay is available now for immediate purchase. Ideal for industrial and commercial applications.
