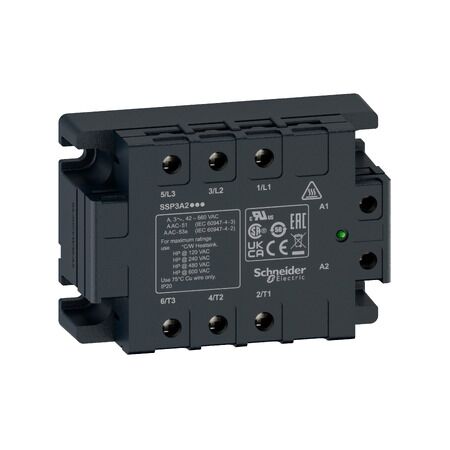

Solid State Relay 25A Panel Mount 4-32VDC Control Clipsal

BRAND: Clipsal
SKU: SCHSSP3A225BDT
$469.90 List price: $585.50
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal Solid State Relay Panel Mount DC Control features 25A rated current, 4.32V DC and 48.530V AC. Zero voltage switching for operation.
Technical Specifications
  • Rated current: 25 A
  • Control circuit voltage: 4...32 V DC
  • Output voltage: 48...530 V AC
  • Insulation resistance: >= 1000 MOhm at 500 V DC
  • IP degree of protection: IP20
  • Response time: 8.33 ms
  • Surge current: 275 A for 20 ms
  • Maximum leakage current: 3 mA off-state
  • Dimensions (H x L x W): 74.6mm x 41mm x 104mm
  • Weight: 0.37 kg
Key Features
  • Zero voltage switching for reliable operation.
  • Panel mount design for easy installation.
  • Thermal pad included for efficient heat dissipation.
  • LED indicator for input status.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Automation systems, machinery control
  • Commercial: HVAC systems, lighting control
Standards & Compliance
  • Complies with IEC/EN 62314 and IEC/EN 60947-4 standards.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • No single-use plastic in packaging.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Harmony Solid State Relay 25A is available now for immediate purchase. Ideal for industrial automation and control applications.

SSP3A225BDT (SSP3A225BDT, 459 Kb) [Download]
