Solid State Relay 2A | 230V AC Coil | DIN Rail Mount | IP20 by NHP
Solid state relay with 2A nominal current and 230V AC coil voltage—ideal for industrial automation and control circuits. Built for reliability, with DIN rail mounting and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

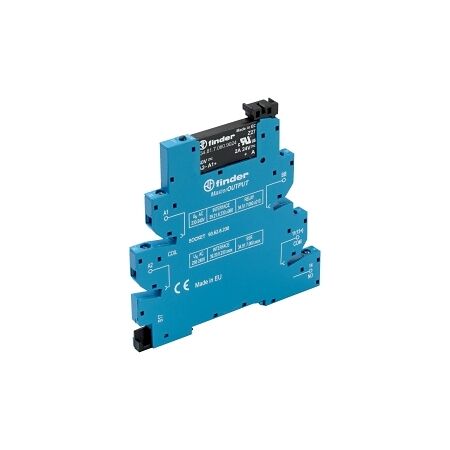

Product Name/Title: Finder 39 Series Master Solid State Relay 2A 1 Normally Open Contact 230V AC Coil 24V DC
Brand: NHP
SKU: 39209024230VAC
Alternatively Known As: Solid State Relay, SSR, Finder Relay
Technical Specifications
- Nominal Current: 2 A
- Number of Contacts: 1 Normally Open
- Breaking Capacity at DC 1-30V: 6 A
- Control Supply Voltage (AC 50Hz): 230 V
- Control Supply Voltage (AC 60Hz): 230 V
- Type of Electric Connection: Screw connection
- Material Contact: Silver nickel
- Suitable for DIN Rail Mounting: Yes
- Degree of Protection: IP20
- Max Shock Duration: 6 ms
- Max Vibration Acceleration: 15 m/s²
- Max Vibration Frequency Operational: 55 Hz
- Operating Temperature: -20 to 55 °C
- Dimensions (H x L x W): 87mm x 90.7mm x 62mm
- Weight: 0.1 kg
Key Features
- 1 Normally Open contact
- 2A nominal current
- 230V AC coil voltage
- 24V DC control voltage
- Screw connection for easy installation
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits
- Home automation
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Long lifespan and reduced maintenance due to solid-state technology.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 39 Series Master Solid State Relay is available now for immediate purchase. Ideal for industrial and home automation applications.
Non-Returnable & Non-Cancellable
