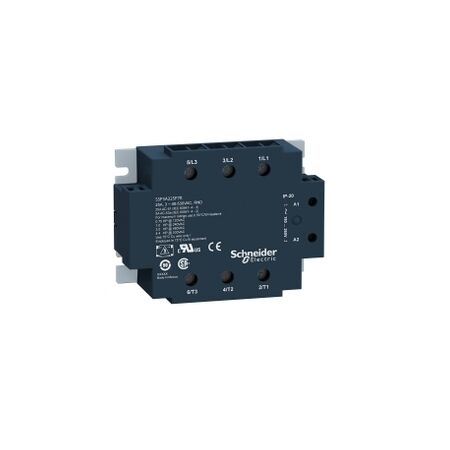

Solid State Relay 50A | Zero Voltage Switching | Panel Mount | 180-280V AC by Clipsal
Solid state relay with 50A capacity and zero voltage switching—ideal for industrial automation and commercial HVAC systems. Built for efficient operation, with visual input status indicator and alarm output for quick response.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Solid State Relays, Solid state relay, 50A, panel mount, zero voltage switching, input 180…280V AC, output 48…530V AC
Brand: Clipsal
SKU: SSP3A250P7
Alternatively Known As: Solid State Relay, SSR, Panel Mount Relay, 50A Relay
Technical Specifications
- Rated current: 50A
- Input voltage: 180-280V AC
- Output voltage: 48-530V AC
- Control type: Zero voltage switching
- Insulation resistance: >= 1000 MOhm at 500 V DC
- IP rating: IP20
- Response time: 20 ms (turn-on), 30 ms (turn-off)
- Surge current: 715 A for 20 ms
- Maximum leakage current: 3 mA off-state
- Dimensions (H x L x W): 80mm x 35mm x 101mm
- Weight: 0.24 kg
Key Features
- Zero voltage switching for efficient operation.
- Visual indicator for input status.
- Alarm output for quick response to unexpected events.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with IEC 60950-1, IEC 62314, IEC 61000.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Solid State Relay 50A is available now for immediate purchase. Ideal for industrial automation and control applications.
