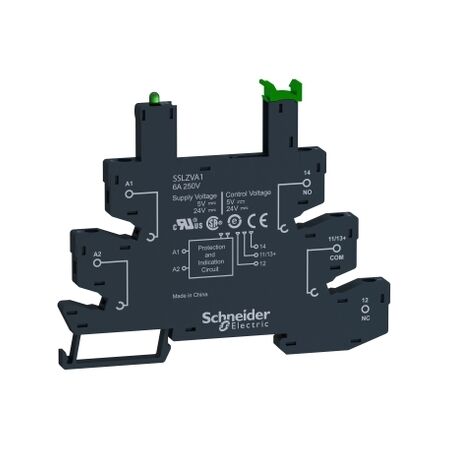

Solid State Relay Socket | LED Indicator | Spring Terminals | IP20 by Clipsal
Solid state relay socket with LED indicator and spring terminals—ideal for industrial automation and control panels. Built for easy installation, with clear circuit labelling and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Solid State Relays, Socket equipped with LED and protection circuit, for SSL relays, spring terminals, 5 24V DC
Brand: Clipsal
SKU: SSLZRA1
Alternatively Known As: Solid State Relay Socket, SSL Relay Socket, Relay Interface Socket
Technical Specifications
- Rated current: 6 A
- Rated operational voltage: < 250 V DC
- Control circuit voltage: 5V / 24V
- IP Rating: IP20
- Rated impulse withstand voltage: 3.6 kV
- Flame retardance: V0 conforming to UL 94
- Dimensions (H x L x W): 101mm x 78.6mm x 62mm
- Weight: 0.0285 kg
Key Features
- Spring terminals for easy connections.
- Visual indicator LED for input status.
- Clear circuit labelling for installation and maintenance.
- Schematic on the side for easier wiring.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Automation systems, control panels
- General: Any application requiring solid state relay interfacing
Standards & Compliance
- Complies with IEC 61984 for safety and performance standards.
Environmental Benefits
- Green Premium product with reduced environmental impact.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Harmony Solid State Relay Socket with LED Indicator is available now for immediate purchase. Ideal for industrial automation and control applications.
