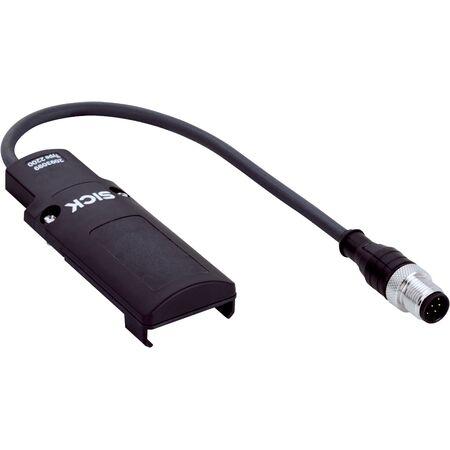

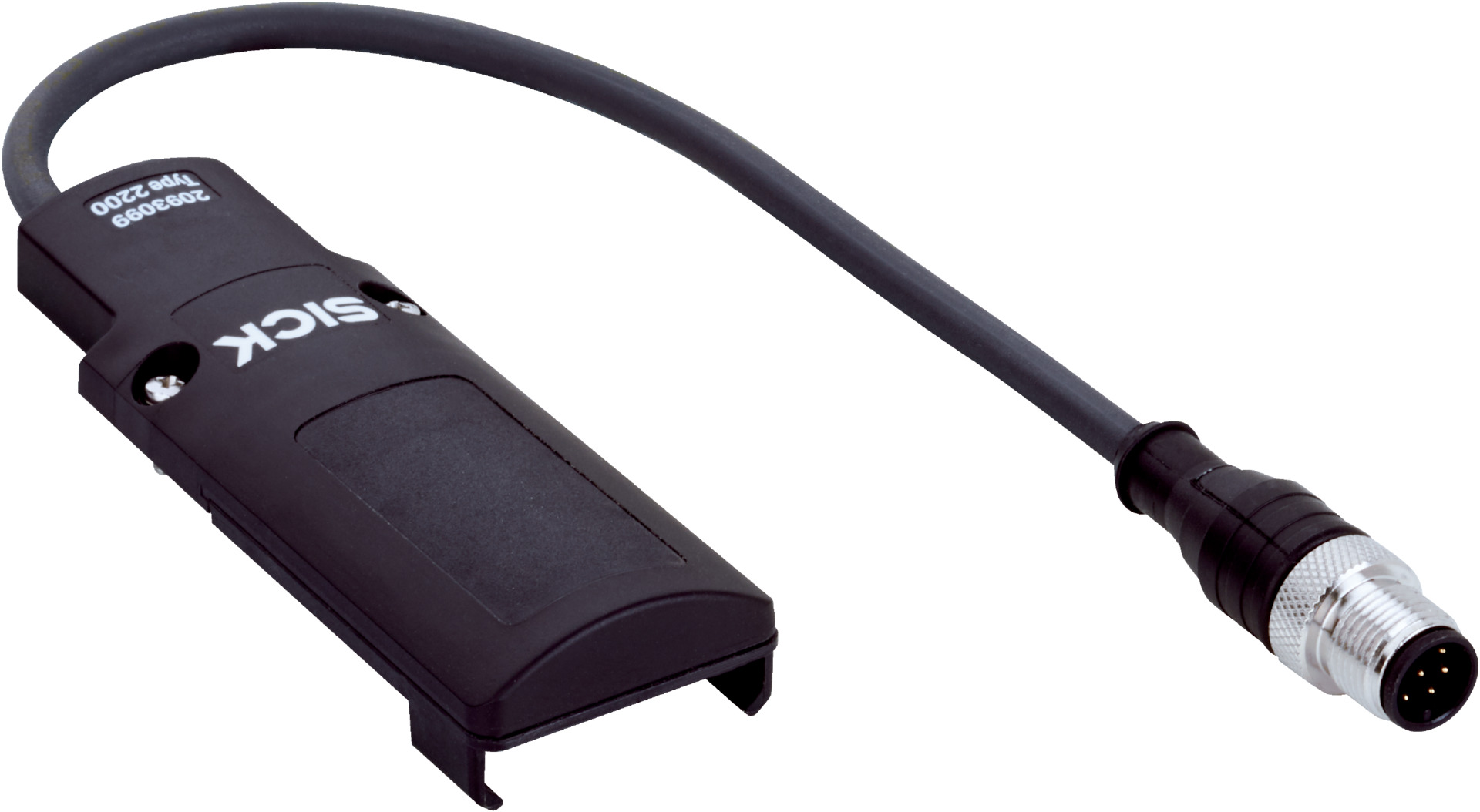

SP2-2200 Safety Sensor | Smart Box Detection | Automatic Calibration | by SICK
The SP2-2200 Safety Sensor is designed for industrial safety monitoring, featuring Smart Box Detection to differentiate between persons and materials. With automatic calibration of protective field width and compatibility with deTec4 and deTem4 devices, it ensures optimal safety in machine guarding and automated production lines. Built for durability and compliance with AS/NZS 4801 standards, this sensor enhances workplace safety and reduces environmental hazards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- System connection: Male connector M12, 8-pin
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Ripple: ≤ 10%
- Protection class: III (IEC 61140)
- Cable length: 200 mm
- Cable diameter: 5 mm
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5 g, 10 Hz to 55 Hz (IEC 60068-2-6)
- Shock resistance: 10 g, 16 ms (IEC 60068-2-27)
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- Compatible with deTec4, deTem4, deTem4 A/P devices
- Protective operation with automatic calibration of protective field width
- Restart interlock and external device monitoring (EDM)
- Application diagnostic output (ADO) and reduced resolution
- Dynamic protective field width during operation
- Sender with reduced scanning range
- Differentiation between person and material with Smart Box Detection
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial safety sensor systems to ensure compliance and optimal performance.
Applications
- Industrial safety monitoring
- Machine guarding
- Automated production lines
- Material handling systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enhances workplace safety reducing accidents and environmental hazards
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK SP2-2200 Safety Sensor is available for immediate purchase, ideal for industrial safety and automation applications.
