Special System Screw for Push-In Connector | TX30 Drive | Zinc Plated Yellow | @Pack of 25 | by Wurth

BRAND: Wurth
SKU: 681352307
$306.10 List price: $384.70
25 PCS ($12.24 per PCS)
+ −
30 Days Return Delivery Options
Special system screw designed for push-in connectors, featuring a TX30 drive and a durable zinc plated yellow surface for corrosion resistance. Ideal for wood-to-wood connections, this screw ensures secure fastening with its full thread design and reinforced head, making it perfect for construction and building applications.

Product Name/Title: Special System Screw for Push-In Connector | TX30 Drive | Zinc Plated Yellow | @Pack of 25 | by Wurth

Brand: Wurth

SKU: 681352307

Alternatively Known As: Wood connector screw, Special system screw TX30, Countersunk head wood screw, Wurth wood fixing screw

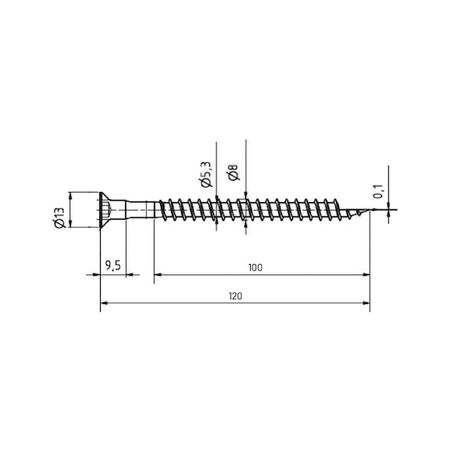

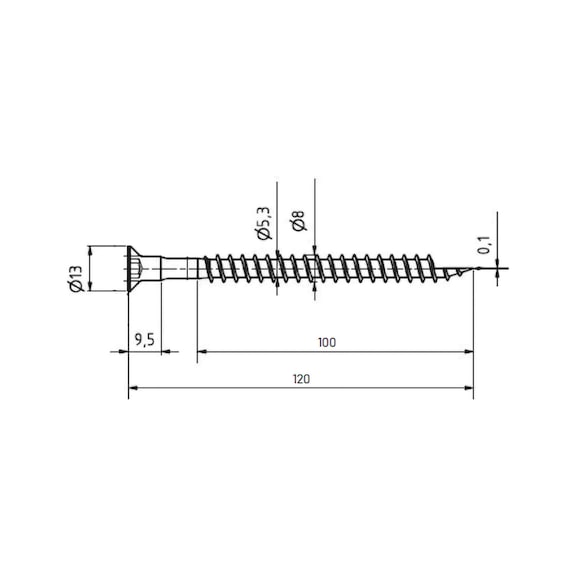

Technical Specifications
  • Type description: L
  • Nominal diameter: 8 mm
  • Length: 120 mm
  • Head type: Countersunk head
  • Head diameter: 13 mm
  • Head height: 4 mm
  • Internal drive: TX30
  • Thread design: Full thread
  • Thread length: 100 mm
  • Core diameter: 5.3 mm
  • Material: Steel
  • Surface: Zinc plated yellow
  • Product weight (per item): 24.5 g
  • Dimensions (H x L x W): 4mm x 120mm x 13mm
  • Weight: 0.025 kg
Key Features
  • Designed for wood/wood connections
  • Half-tip for optimum initial screw bite and reduced splitting risk
  • Reinforced screw head for durability
  • Fits perfectly into screw holes of respective connectors
  • Full thread design for secure fastening
  • Zinc plated yellow surface for corrosion resistance
Professional Installation Requirements
  • Installation should be performed by a qualified professional to ensure compliance with ETA-12/0067 and optimal load-bearing performance.
Applications
  • Attaching and locking wood-to-wood connections
  • Use with specific wood connectors as per ETA-12/0067 approval
Standards & Compliance
  • Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
  • Durable zinc plating extends product life reducing replacement frequency
  • Steel material is recyclable
Warranty Information

Warranty as per Wurth standard terms and conditions.

Available Now

Available for immediate purchase, ideal for wood-to-wood structural connections in construction and building applications.
