SPL-F120NPS1W04 | Automation light grids

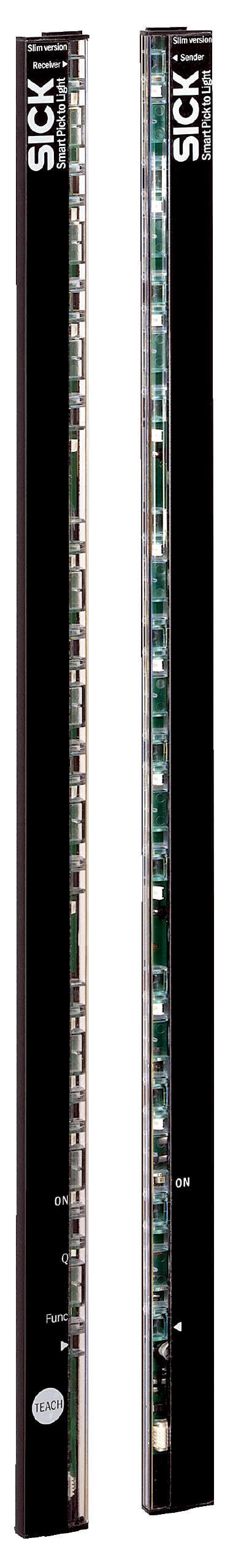

The SICK SPL-F120NPS1W04 is an automation light grid sensor featuring 4 parallel infrared beams for reliable object detection and safety applications in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

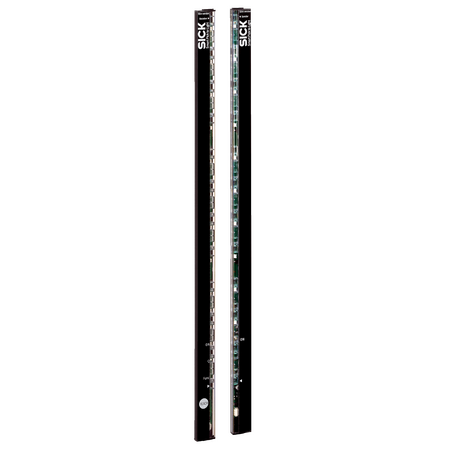

Product Name/Title: SPL-F120NPS1W04 | Automation light grids
Brand: SICK
SKU: 1208550
Alternatively Known As: Automation light grid sensor, Safety light curtain, Infrared light grid, Object detection sensor
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: 45 mm
- Beam separation: 40 mm
- Number of beams: 4
- Detection height: 120 mm
- Light source: Infrared light at 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Switching output: NPN
- Initialization time: 1 second
- Connection type: Cable with M8 male connector, 4-pin
- Enclosure rating: IP65
- Protection class: III
- Response time: 19 ms
- Operating temperature: -25°C to +55°C
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 192mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with 4 parallel beams
- Minimum detectable object size of 45 mm
- Flat optical light exit with 120 mm detection height
- Automatic teach function active for easy setup
- NPN switching output with output 1 active when beam interrupted
- IP65 rated enclosure for dust and water protection
- LED indication for operational status
- Reverse polarity and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection and safety
- Machine guarding and perimeter protection
- Conveyor and production line monitoring
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with ≤ 50 mA receiver power usage
- Durable PMMA housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK SPL-F120NPS1W04 Automation Light Grid Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
