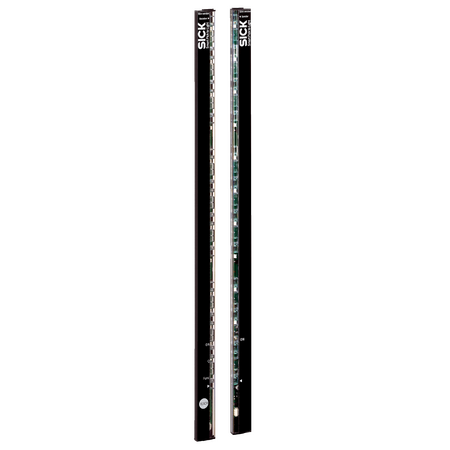

SPL-S120PPC1W04 | Automation light grids
The SICK SPL-S120PPC1W04 automation light grid sensor features 4 parallel infrared beams for reliable object detection in industrial automation applications, with robust IP65 protection and easy automatic teach setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: SPL-S120PPC1W04 | Automation light grids
Brand: SICK
SKU: 1211282
Alternatively Known As: Automation light grid sensor, Safety light curtain, Infrared light grid sensor, Object detection light grid
Technical Specifications
- Sensor principle: Sender/receiver
- Minimum detectable object: Parallel beam, 45 mm
- Beam separation: 40 mm
- Number of beams: 4
- Detection height: 120 mm
- Light source: Infrared light, 950 nm wavelength
- Supply voltage: DC 24 V ± 20%
- Power consumption receiver: ≤ 50 mA
- Output current max: ≤ 100 mA
- Switching output: PNP
- Initialization time: 1 s
- Connection type: Cable with M8 male connector, 4-pin
- Housing material: PMMA
- Enclosure rating: IP65
- Protection class: III
- Pulse frequency: 250 kHz
- Maximum range: 3 m
- Operating range: 1.5 m
- Response time: 38 ms
- Shock resistance: 10 g / 16 ms
- Vibration resistance: 5 g, 10 Hz to 55 Hz
- Ambient operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 192mm x 8mm x 25mm
- Weight: 0.1 kg
Key Features
- Sender/receiver sensor principle with infrared light source
- 4 parallel beams with 40 mm beam separation and 120 mm detection height
- Automatic teach function active for easy setup
- PNP switching output with output current up to 100 mA
- Robust PMMA housing with IP65 enclosure rating
- Cable connection with M8 male connector, 4-pin
- Shock resistance of 10 g and vibration resistance of 5 g
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection and safety
- Manufacturing lines requiring precise presence detection
- Packaging and material handling systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient infrared light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK SPL-S120PPC1W04 automation light grid sensor is available for immediate purchase, ideal for industrial automation and safety applications.
